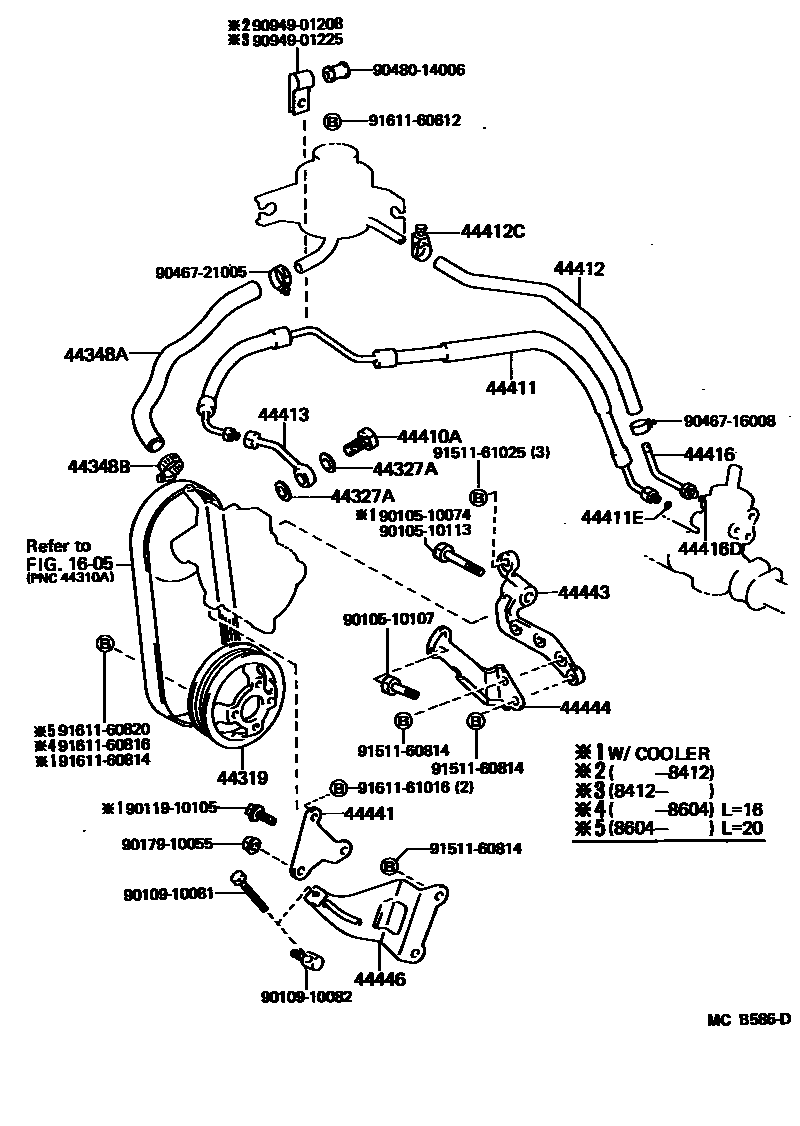

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1

1605V-BELT

→ Go to FIG 16-05

44319PULLEY, VANE PUMP DRIVE

main44319-10010iEP71..DX,SE,TBS,TOR,XL198410-198604

main44319-10011iEP71..DX,SE,TBS,TOR,XL198604-198912

44327AGASKET, PRESSURE PORT, NO.1

main90430-16242iEP71..DX,SE,TBS,TOR,XL198410-198912

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-10010iEP71..DX,SE,XL198410-198612

main44348-10020iEP71..TBO198601-198912

main44348-10030iNP70198612-198912

main44348-10040iEP71..DX,SE,XL198612-198912

44348BCLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

main90460-26001iEP71..DX,SE,TBS,TOR,XL198410-198912

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16005iEP71..DX,SE,TBS,TOR,XL198410-198608

main90401-16008iEP71..DX,SE,TBS,TOR,XL198608-198912

44411HOSE, PRESSURE FEED

main44411-10010iEP71..DX,SE,XL198410-198912

main44411-10020iEP71..TBO198601-198912

main44411-10030iNP70198612-198912

44411ERING, O(FOR PRESSURE FEED HOSE)

main90301-07009iEP71..DX,SE,TBS,TOR,XL198602-198912

44412HOSE, RETURN

main44412-10010iEP71,NP70..DX,SE,XL198410-198912

main44412-10020iEP71..TBO198601-198912

44412CCLAMP(FOR RETURN HOSE)

main90460-01001iEP71..DX,SE,TBS,TOR,XL198410-198912

44413TUBE, PRESSURE FEED, NO.1

main44413-10010iEP71..DX,SE,XL198410-198912

main44413-10020iEP71..TBO198601-198912

main44413-10030iEP71..SI198612-198912

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-10010iEP71..DX,SE,TBS,TOR,XL198410-198912

44416DRING, O(FOR RETURN TUBE)

main90301-07009iEP71..DX,SE,TBS,TOR,XL198602-198912

44441BRACKET, PUMP, FRONT

main44441-10010iEP71..DX,SE,XL198410-198612

main44441-10020iEP71..TBO198601-198912

main44441-16020iEP71..DX,SE,SI,XL198612-198912

44443BRACKET, PUMP

main44443-10010iEP71..DX,SE,XL198410-198912

main44443-10020iEP71..TBO198601-198912

main44443-16030iNP70198612-198912

44444STAY, PUMP, REAR

main44444-10010iEP71..DX,SE,XL198410-198912

main44444-10020iEP71..TBO198601-198912

44446STRUT, ADJUSTING

main44446-10010iEP71..DX,SE,SI,XL198410-198912

main44446-10020iEP71..TBO198601-198912

9010510074

main90105-10074

9010510107

main90105-10107

9010510113

main90105-10113

9010910081

main90109-10081

9010910082

main90109-10082

9011910105

main90119-10105

9017910055

main90179-10055

9046716008

main90467-16008

9046721005

main90467-21005

9048014006

main90480-14006

9094901208

main90949-01208

9094901225

main90949-01225

9151160814

main91511-60814

9151161025

main91511-61025

9161160612

main91611-60612

9161160814

main91611-60814

9161160816

main91611-60816

9161160820

main91611-60820

9161161016

main91611-61016

36 parts on this diagram · 4 diagrams in section
