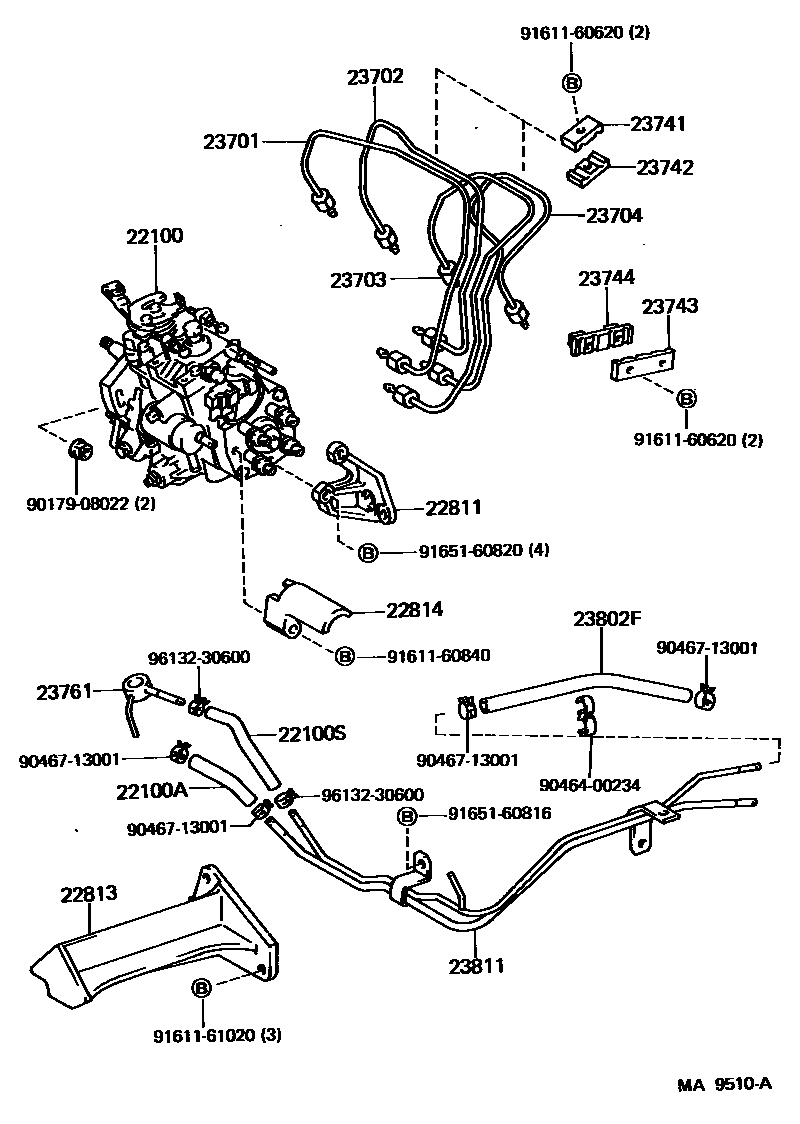

INJECTION PUMP ASSEMBLY

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-55060i1N..NP70..5F198612-198808

W/TACHO METOR PICK UP

main22100-55070i1N..NP70..4FC198612-198808

main22100-55100i1N..NP7#..5F..(CD,CS,DX,XL)198612-198808

main22100-55130i1N..NP70..5F198808-198912

W/TACHO METOR PICK UP

main22100-55140i1N..NP7#..5F..(CD,CS,DX,XL)198808-198912

sub22100-55130

main22100-55150i1N..NP70..4FC198808-198912

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main95332-08010i1N..NP7#198612-198702

main95333-08010i1N..NP7#198702-198912

22100SHOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)

main23273-55010i1N..NP7#198612-198912

22811STAY, INJECTION PUMP, NO.1

main22811-55010i1N..NP7#198612-198912

22813PROTECTOR, INJECTION PUMP, NO.1

main22813-55010i1N..NP7#198612-198912

sub22813-55011

22814PROTECTOR, INJECTION PUMP, NO.2

main22814-55010i1N..NP7#198612-198912

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-55010i1N..NP7#198810-198912

main23701-55010i1N..NP7#198612-198810

SANOU

main23701-55020i1N..NP7#198612-198810

MARUYASU

sub23701-55010

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-55010i1N..NP7#198612-198810

SANOU

main23702-55010i1N..NP7#198810-198912

main23702-55020i1N..NP7#198612-198810

MARUYASU

sub23702-55010

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-55010i1N..NP7#198612-198810

SANOU

main23703-55010i1N..NP7#198810-198912

main23703-55020i1N..NP7#198612-198810

MARUYASU

sub23703-55010

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-55010i1N..NP7#198612-198810

SANOU

main23704-55010i1N..NP7#198810-198912

main23704-55020i1N..NP7#198612-198810

MARUYASU

sub23704-55010

23741CLAMP, INJECTION PIPE, NO.1

main23741-54010i1N..NP7#198612-198912

23742CLAMP, INJECTION PIPE, NO.2

main23742-54010i1N..NP7#198612-198912

23743CLAMP, INJECTION PIPE, NO.3

main23741-64020i1N..NP7#198612-198912

sub23741-64021

23744CLAMP, INJECTION PIPE, NO.4

main23742-55010i1N..NP7#198612-198912

sub23742-55011

23761PIPE, NOZZLE LEAKAGE, NO.1

main23764-55020i1N..NP7#198612-198912

23802FHOSE, FUEL

main90447-14049i1N..NP7#198702-198912

main95332-08040i1N..NP7#198612-198702

*H,L=320

sub95333-08040

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-55020i1N..NP7#198612-198912

9017908022

main90179-08022

9046400234

main90464-00234

9046713001

main90467-13001

9161160620

main91611-60620

9161160840

main91611-60840

9161161020

main91611-61020

9165160816

main91651-60816

9165160820

main91651-60820

9613230600

main96132-30600

26 parts on this diagram · 1 diagram in section
