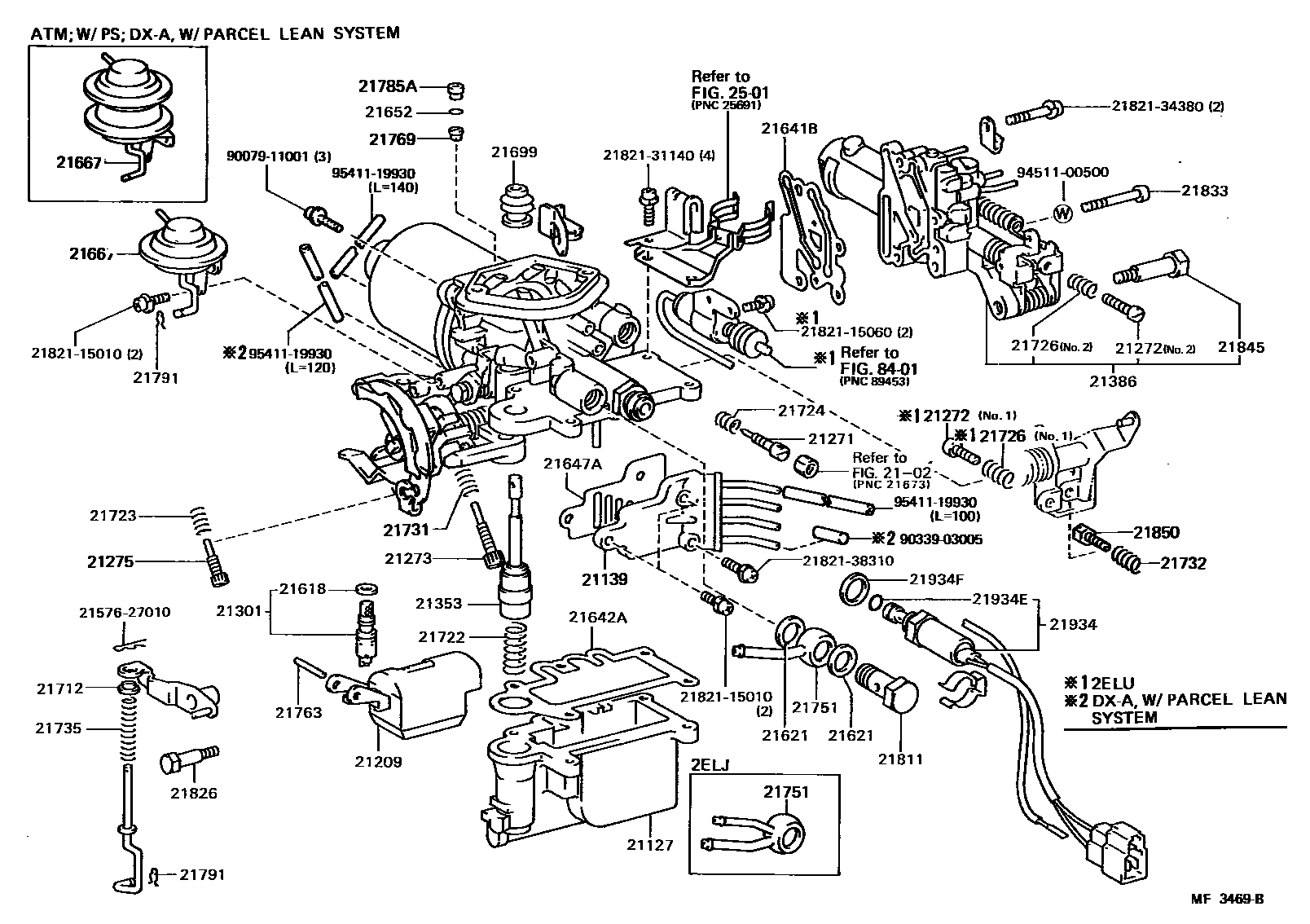

2102CARBURETOR ASSEMBLY

→ Go to FIG 21-02

21127BOWL, FLOAT

main21127-11090i198410-198711

main21127-11230i198711-198912

21139ADAPTER(FOR CARBURETOR CONNECTING PIPE)

main21139-11090i198410-198912

main21139-11110i198410-198912

*52

21209FLOAT SUB-ASSY

main21209-11090i198410-198912

21271SCREW, IDLE ADJUSTING

main21271-11090i198711-198912

*52

21272SCREW, 1ST IDLE ADJUSTING

main21276-11090i198410-198912

NO.1

main21828-11180i198410-198502

NO.2

21273SCREW, THROTTLE ADJUSTING

main21273-11090i198410-198912

21275SCREW, ADJUSTING

main21273-60151i198410-198605

main21844-33010i198605-198912

21301VALVE SUB-ASSY, NEEDLE

main21301-15250i198410-198912

21353PLUNGER, PUMP

main21353-11090i198410-198605

main21353-11230i198605-198711

main21353-11231i198711-198912

21386COMPENSATOR

main21386-11090i198410-198612

main21386-11100i198612-198711

main21386-11110i198410-198912

*52

main21386-11130i198410-198612

main21386-11180i198410-198612

main21386-11181i198612-198912

main21386-11220i198612-198711

main21386-11301i198711-198912

21618GASKET, NEEDLE VALVE SEAT

main21618-14010i198410-198912

21621GASKET, UNION NIPPLE

main21633-24030×2i198410-198912

21641BGASKET, COMPENSATOR

main21641-11090i198410-198711

main21641-11340i198711-198912

21642AGASKET, FLOAT BOWL

main21642-11090i198410-198711

main21642-15390i198711-198912

21647AGASKET, ADAPTER

main21647-11090i198410-198912

21652RING, O(FOR SUCTION CHANBER ADJUSTING)

main21652-15250i198410-198912

21667DIAPHRAGM

main21667-11090i198612-198912

main21679-11100i198610-198912

COLD SPEC

main21679-11110i198410-198912

*52

21699BOOT(FOR PUMP PLUNGER)

main21699-28150i198410-198912

21712BUSH, SLIDING ROD

main21712-38010i198410-198912

21722SPRING, PUMP DAMPING

main21722-22010i198410-198912

21723SPRING, IDLE ADJUSTING

main21724-11340i198711-198912

main21724-51011i198711-198912

21724SPRING, THROTTLE ADJUSTING

main21723-38010i198410-198912

21726SPRING, 1ST IDLE ADJUSTING

main21723-38010i198410-198502

NO.2

main21723-60010i198410-198912

NO.1

21731SPRING, DASH POT OR POSITIONER ADJUSTING

main21723-21030i198410-198912

21732SPRING, THROTTLE ADJUSTING

main21726-15251i198410-198912

21735SPRING, PUMP ARM

main21735-11090i198608-198912

*52

main21735-11150i198608-198912

main21735-15250i198605-198608

*52

main21735-21032i198605-198608

21751UNION, NIPPLE

main21894-11090i198410-198706

main21894-11150i198410-198706

main21894-11151i198706-198804

main21894-11230i198706-198804

main21894-11540i198804-198912

main21894-11590i198804-198912

21763PIN, FLOAT LEVER

main21763-38010i198410-198912

21769PIN(FOR SUCTION CHANBER ADJUSTING)

main21769-15250i198410-198912

21785APLUG, PLATE(FOR SUCTION CHANBER ADJUSTING)

main21672-15250i198502-198804

NO.2

main21785-11090i198410-198502

main21785-13210i198804-198912

NO.2

21791RING, SNAP, NO.1(FOR CARBURETOR LINK)

main21791-60010×2i198410-198912

21811BOLT, UNION NIPPLE

main21811-11060i198410-198912

21826SCREW, PUMP ARM SET

main21826-24470i198410-198912

21833SCREW, SET, NO.1(FOR CARBURETOR BODY SET)

main21833-31012i198410-198912

21845SCREW(FOR LEVER SET)

main21273-38010i198410-198502

21850SCREW, THROTTLE SWITCH ADJUSTING

main21272-11090i198410-198711

main21272-11230i198711-198912

21934SOLENOID, THROTTLE VALVE

main21062-11090i198410-198612

main21062-11091i198808-198904

main21062-11093i198904-198912

main21062-11100i198612-198711

main21062-11110i198410-198808

*52

main21062-11120i198410-198612

main21062-11180i198410-198808

main21062-11181i198808-198904

main21062-11183i198904-198912

main21062-11220i198612-198711

main21062-11221i198711-198904

main21062-11223i198904-198912

main21062-11280i198808-198904

*52

main21062-11281i198904-198912

*52

main21062-11530i198711-198808

21934ERING, O(FOR SOLENOID VALVE)

main21656-15250i198410-198912

21934FGASKET

main21633-15250i198410-198912

2501EXHAUST GAS RECIRCULATION SYSTEM

→ Go to FIG 25-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

2157627010CLIP, PUMP STRAINER

main21576-27010

2182115010SCREW, 2ND THROTTLE VALVE SET

main21821-15010

2182115060SCREW, 2ND THROTTLE VALVE SET

main21821-15060

2182131140SCREW, 2ND THROTTLE VALVE SET

main21821-31140

2182134380SCREW, 2ND THROTTLE VALVE SET

main21821-34380

2182138310SCREW, 2ND THROTTLE VALVE SET

main21821-38310

9007911001

main90079-11001

9033903005

main90339-03005

9451100500

main94511-00500

9541119930

main95411-19930
