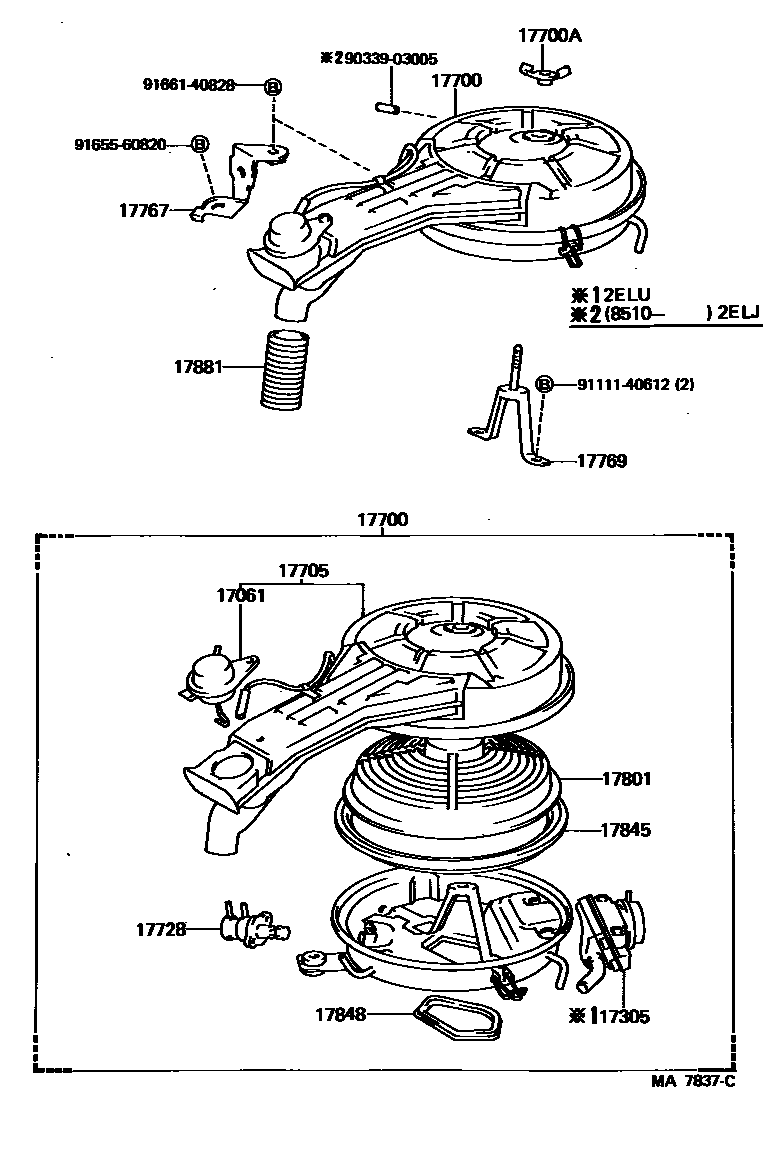

AIR CLEANER

0001 1 0002 1 0004 1W/PS 0005 1 0006 1

17061DIAPHRAGM SUB-ASSY

main17061-11010i2EL#..EP7#198410-198912

17305VALVE SUB-ASSY, REED

main17350-11010i2ELU..EP71198410-198505

main17350-11011i2ELU..EP71198505-198612

main17350-11040i2ELU..EP71198612-198904

main17350-11041i2ELU..EP71198904-198912

17700CLEANER ASSY, AIR

main17700-11161i2EELU..EP71..5F198612-198912

main17700-11170i2ELU..EP71198410-198505

main17700-11171i2ELU..EP71198505-198711

main17700-11172i2ELU..EP71198711-198904

main17700-11173i2ELU..EP71198904-198912

main17700-11180i2ELJ..EP76198410-198509

main17700-11181i2ELJ..EP76198509-198912

main17700-11240i2ETELU..EP71198601-198612

main17700-11340i2EELU..EP71..4FC; 2EELU..EP71..5F..SI198612-198704

W/PS

main17700-11341i2EELU..EP71; 2EELU..EP71..4FC198704-198912

W/PS

main17700-11380i2ETELU..EP71..5F198612-198912

main17700-11390i2ETELU..EP71..4FC198612-198912

17700ANUT, WING(FOR AIR CLEANER)

main90175-06009i2EL#..EP7#198410-198912

17705CAP SUB-ASSY, AIR CLEANER

main17705-11151i2EELU..EP71198410-198612

main17705-11160i2EL#..EP7#198410-198912

main17705-11210i2ETELU..EP71198601-198912

main17705-11280i2EELU..EP71..4FC; 2EELU..EP71..5F..SI198612-198912

W/PS

main17705-55020i1N..NP7#198612-198912

main17705-55030i1N..NP7#..5F198612-198912

COLD SPEC

17728VALVE, THERMOSTATIC

main17728-10010i2ELJ..EP76198410-198912

main17728-11020i2ELU..EP71198410-198705

main17728-11050i2ELU..EP71198705-198912

17767BRACKET, AIR CLEANER

main17771-11010i2EL#..EP7#198410-198912

17769SUPPORT, AIR CLEANER

main17769-11020i2EL#..EP7#198410-198912

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-10030i2EL#..EP7#198410-198912

main17801-63010i2EELU,2ETELU..EP71198410-198912

main17801-74010i1N..NP7#198612-198912

17845GASKET, AIR CLEANER CAP

main17845-10020i2EL#..EP7#198410-198912

17848GASKET, AIR CLEANER TO CARBURETOR

main17848-15010i2EL#..EP7#198410-198912

17881HOSE, AIR CLEANER, NO.1

main17881-10030i2EL#..EP7#198410-198802

main17881-10031i2EL#..EP7#198802-198912

main17881-11070i2EELU..EP71198410-198612

main17881-11090i2ETELU..EP71198601-198612

main17881-11130i2EELU..EP71..4FC; 2EELU..EP71..5F..SI198612-198912

W/PS

main17881-11140i2ETELU..EP71..5F198612-198912

main17881-11150i2ETELU..EP71..4FC198612-198912

main17881-55040i1N..NP7#198612-198912

main17882-55030i1N..NP7#..5F198612-198912

COLD SPEC

9033903005

main90339-03005

9111140612

main91111-40612

9165560820

main91655-60820

9166140828

main91661-40828

16 parts on this diagram · 5 diagrams in section
