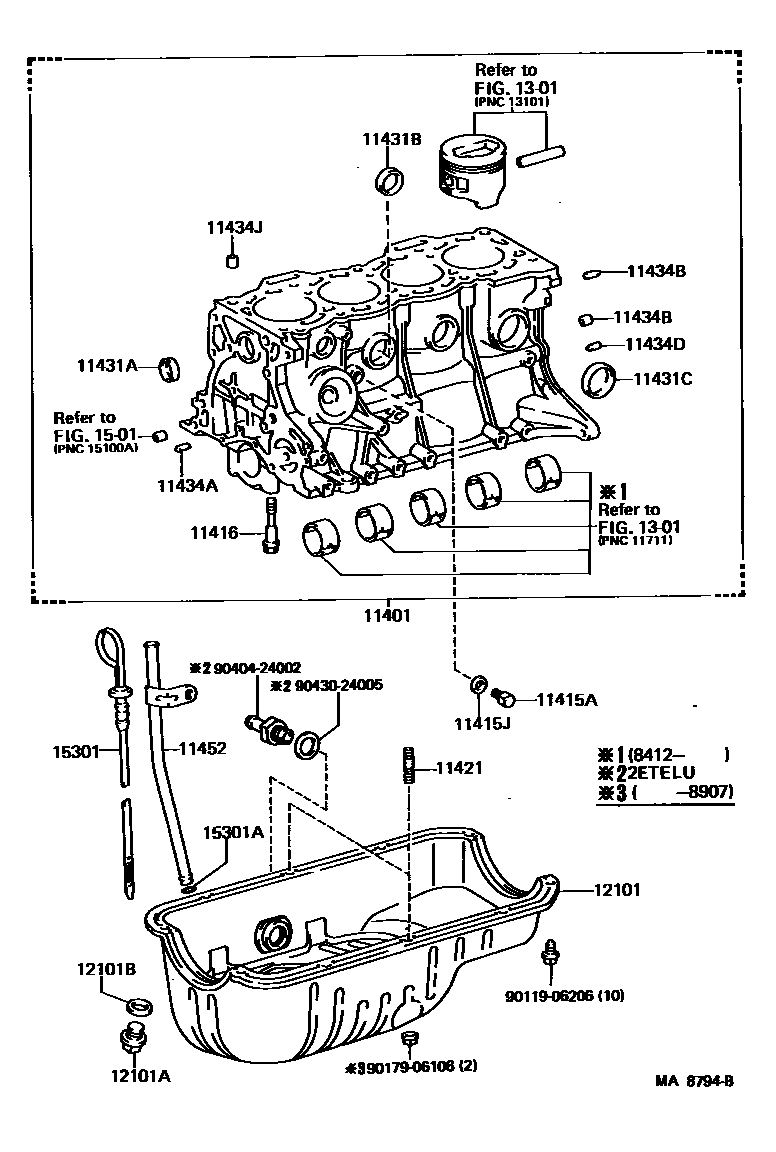

CYLINDER BLOCK

0001 1 0002 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-19295i2EELU,2EL#..EP7#198410-198412

sub11401-19296

main11401-19296i2EELU,2EL#..EP7#198412-198507

sub11401-19297

main11401-19297i2EELU,2EL#..EP7#198507-198508

sub11401-19298

sub90105-10144

sub90387-11035

main11401-19298i2EELU,2EL#..EP7#198508-198912

sub11401-19299

main11401-19305i2ELU..EP71..3D..4F..DX198410-198412

*52

sub11401-19306

main11401-19306i2ELU..EP71..3D..4F..DX198412-198507

*52

sub11401-19307

main11401-19307i2ELU..EP71..3D..4F..DX198507-198508

*52

sub11401-19308

sub90105-10144

sub90387-11035

main11401-19308i2ELU..EP71..3D..4F..DX198508-198612

*52

sub11401-19309

main11401-19355i2ETELU..EP71198601-198912

sub11401-19356

main11401-59335i1N..NP7#198612-198912

sub11401-59336

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09088i1N..NP7#198612-198912

sub90345-52003

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90341-12012i2E#..EP7#198410-198912

main90910-09087i1N..NP7#198612-198912

11415JGASKET(FOR DRAIN COCK)

main90430-13002i2E#..EP7#198410-198912

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-10153i1N..NP7#198612-198912

main90910-02019i2E#..EP7#198410-198912

11421BOLT, STUD(FOR OIL PAN)

main90116-06014i2E#..EP7#198410-198907

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main96411-42000i1N..NP7#198612-198912

main96411-42500i2E#..EP7#198410-198912

OD=25

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-43000i2E#..EP7#198410-198912

OD=30

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

main96411-43500i2E#..EP7#198410-198912

OD=35

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-06003i1N..NP7#198612-198912

main90250-06068i2E#..EP7#198410-198912

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10017i2E#..EP7#198612-198912

main90250-10052i2E#..EP7#198410-198712

main90253-15001i2E#..EP7#198410-198712

main90253-15003i2E#..EP7#198712-198912

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06068i2E#..EP7#198410-198912

main90253-10005i1N..NP7#198612-198912

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-12001i2E#..EP7#198410-198912

main90253-14001i1N..NP7#198612-198912

11452GUIDE, OIL LEVEL GAGE

main11452-10010i2E#..EP7#198410-198912

main11452-55010i1N..NP7#198612-198912

12101PAN SUB-ASSY, OIL

main12101-10010i2EELU,2EL#..EP7#198410-198912

sub12101-10011

main12101-11020i2ETELU..EP71198601-198912

main12101-55010i1N..NP7#198612-198912

sub12101-55011

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i1N..NP7#198410-198912

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12011i1N..NP7#198410-198803

sub90430-12019

main90430-12019i1N..NP7#198803-198912

sub90430-12028

1301

1501

15301GAGE SUB-ASSY, OIL LEVEL

main15301-10020i2E#..EP7#198410-198602

main15301-10021i2E#..EP7#198602-198811

sub15301-10022

main15301-10022i2E#..EP7#198811-198912

main15301-55010i1N..NP7#198612-198912

15301ARING, O(FOR OIL LEVEL GAGE)

main96711-19010i2E#..EP7#198410-198912

9011906206

main90119-06206

9017906106

main90179-06106

9040424002

main90404-24002

9043024005

main90430-24005

25 parts on this diagram · 2 diagrams in section
