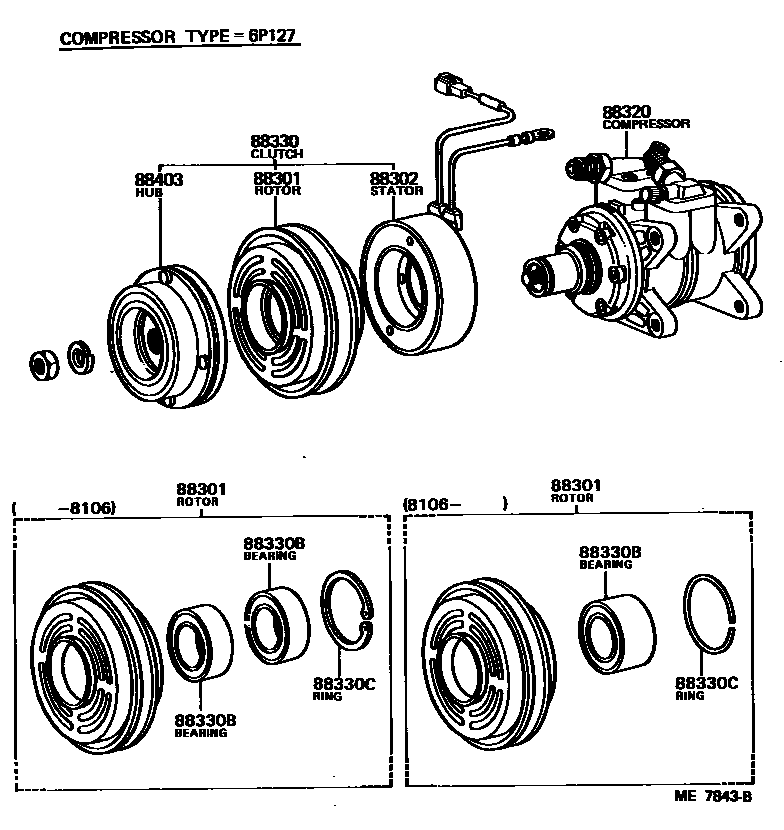

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-12040iKP6#197802-198005

main88412-14020iKP6#198106-198409

main88412-20060iKP6#198005-198106

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-14020iKP6#197802-198005

main88411-14050iKP6#198106-198409

main88411-22040iKP6#198005-198106

88320COMPRESSOR ASSY, COOLER

main88320-10030iKP6#197802-198005

main88320-10040iKP62198005-198201

main88320-10041iKP61198005-198409

COMPRESSOR TYPE:6P127

main88320-10050iKP61..SED..CBR198305-198409

COMPRESSOR TYPE:TV10

88330CLUTCH ASSY, MAGNET

main88410-10010iKP61..SED..CBR198305-198409

COMPRESSOR TYPE:TV10

main88410-12080iKP6#197802-198005

main88410-14100iKP6#198106-198409

COMPRESSOR TYPE:6P127

main88410-20130iKP6#198005-198106

88330BBEARING, MAGNET CLUTCH

main90099-10117×2iKP6#197802-198106

main90099-10133iKP6#198106-198208

88330CRING, SNAP (FOR MAGNET CLUTCH)

main90099-07094iKP6#197802-198106

main90099-07114iKP6#198106-198208

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-14030iKP6#198106-198409

main88403-22030iKP6#198005-198106

main88403-26030iKP6#197802-198005
