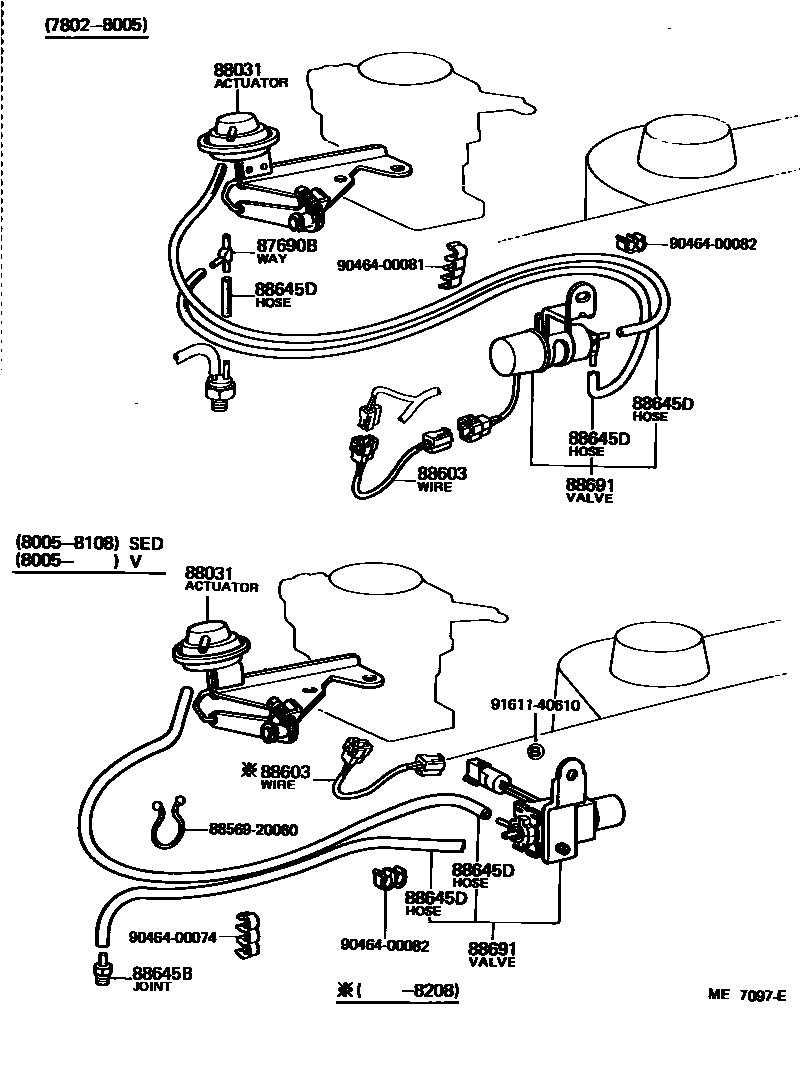

HEATING & AIR CONDITIONING - VACUUM PIPING

0001 1 0003 1

87690BWAY, 3

main90413-04001iKP6#197802-198005

88031ACTUATOR SET, IDLE-UP

main88031-12080iKP6#197802-198108

main88031-12110iKP61..CBR198108-198409

88603WIRE, IDLE UP DEVICE

main88648-10050iKP6#197802-198005

main88648-10120iKP62198108-198201

main88648-10150iKP61..SED198108-198208

88645BJOINT, NO.1 (FOR IDLE UP DIVICE)

main88895-10100iKP61..EFI198208-198409

NO.2

main90404-51093iKP6#..CBR198005-198409

main90404-51305iKP61..EFI198208-198409

NO.1

88645DHOSE (FOR IDLE UP DEVICE)

main95411-10030iKP62197903-198005

main95411-10060iKP61..4D198201-198409

main95411-10095iKP61..EFI198208-198409

main95411-19930iKP61..SED..CBR198108-198409

main95411-19960×2iKP61..SED..CBR198108-198409

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88690-10090iKP62197903-198005

main88690-10100iKP61197903-198005

main88690-10120iKP62198108-198201

main88690-10140iKP61..SED198108-198208

NO.2

main88690-10150iKP61..SED..CBR198108-198409

NO.1

main88690-10170iKP61..EFI198208-198409

8856920060CLAMP (FOR COOLER RELAY)

main88569-20060

9046400074

main90464-00074

9046400081

main90464-00081

9046400082

main90464-00082

9161140610

main91611-40610

11 parts on this diagram · 2 diagrams in section
