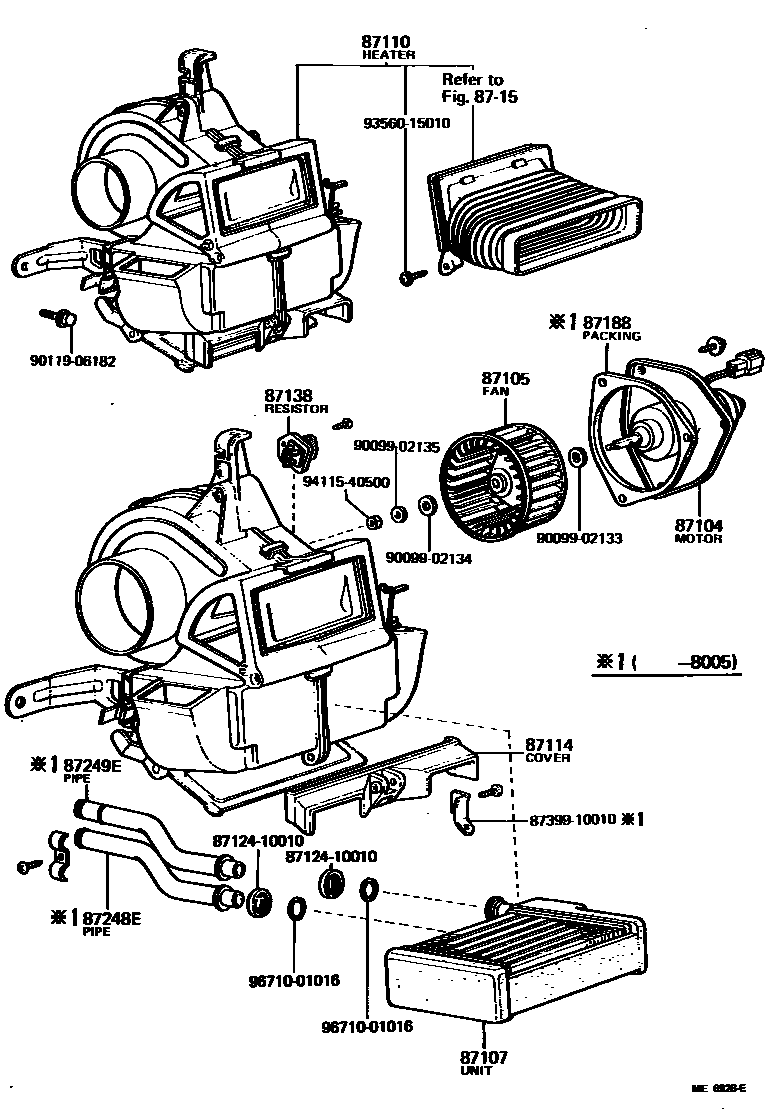

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1 0002 1

87104MOTOR SUB-ASSY, HEATER BLOWER

main87104-10090iKP6#197802-198005

main87104-10130iKP61198208-198409

main87104-95403iKP61..4F..DXA;KP6#..DLX,S,SE,STD,XL197802-198208

HEAVY DUTY

main88550-87701iKP6#198005-198208

87105FAN SUB-ASSY, HEATER BLOWER

main87105-12030iKP6#197802-198208

main87105-16020iKP61198208-198409

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-10100iKP6#197802-198005

main87107-10110iKP6#198005-198208

main87107-10130iKP61198208-198409

main87107-10140iKP61..02S; KP61..4F..DXA;KP61..DLX,S,SE,SI,STD,XL198208-198409

HEAVY DUTY

87110HEATER ASSY

main87110-10130iKP6#197802-198005

main87110-10131iKP6#198005-198208

main87110-10150iKP6#197802-198005

HEAVY DUTY

main87110-10151iKP61..4D..05S; KP61..SED198201-198208

HEAVY DUTY

main87110-96440iKP61..02S198201-198208

HEAVY DUTY

87114COVER, HEATER

main87114-10010iKP61..4F..DXA;KP6#..DLX,S,SE,STD,XL197802-198201

HEAVY DUTY

main87114-10020iKP61..02S; KP61..SED198201-198208

HEAVY DUTY

87138RESISTOR, HEATER BLOWER

main87138-10080iKP61198208-198409

main87138-14020iKP6#197802-198005

COOLER

main87138-16010iKP6#197802-198005

main87138-16020iKP61..4F..DXA;KP6#..DLX,S,SE,STD,XL197802-198208

HEAVY DUTY

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

87188PACKING, HEATER BLOWER MOTOR

main87127-12020iKP61198208-198409

main87128-22010iKP6#197802-198005

87248EPIPE, HEATER WATER INLET, E

main87291-10100iKP6#197802-198005

87249EPIPE, HEATER WATER OUTLET, E (FOR HEATER UNIT)

main87291-10090iKP6#197802-198005

8712410010CLAMP, HEATER

main87124-10010

8739910010BAND ASSY (FOR COMBUSTION HEATER)

main87399-10010

9009902133

main90099-02133

9009902134

main90099-02134

9009902135

main90099-02135

9011906182

main90119-06182

9356015010

main93560-15010

9411540500

main94115-40500

9671001016

main96710-01016

19 parts on this diagram · 2 diagrams in section
