HORN

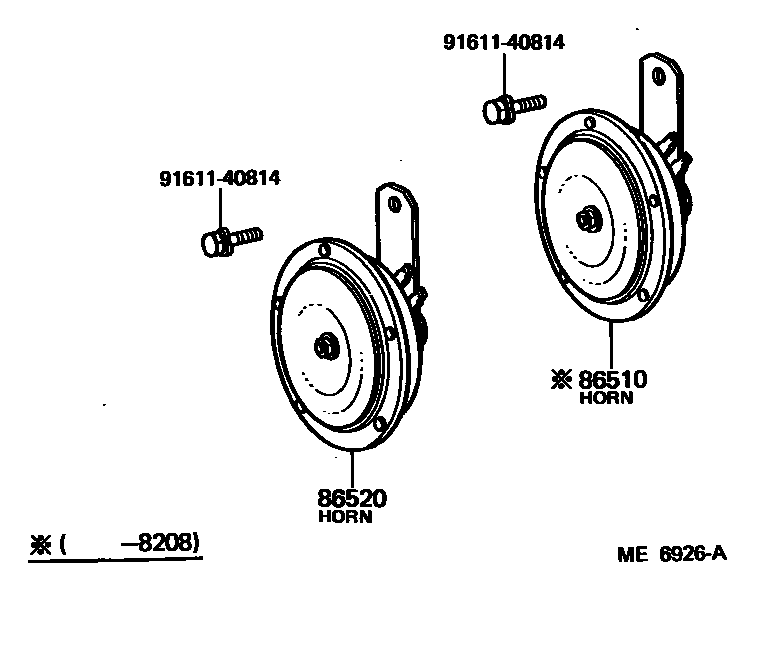

Parts diagram

86510HORN ASSY, HIGH PITCHED

main86510-10080i197802-198005

main86510-22050i198005-198201

86520HORN ASSY, LOW PITCHED

main86520-10090i197802-198005

main86520-10120i198005-198409

9161140814

main91611-40814

3 parts on this diagram · 1 diagram in section
