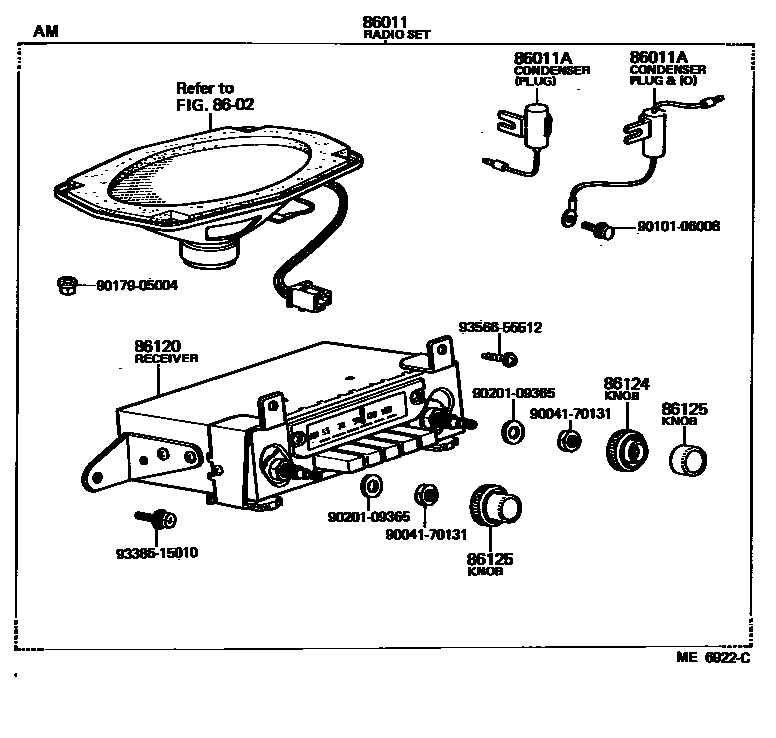

86011RADIO & SETTING PARTS SET

main86011-10090iKP6#197802-197905

AM

main86011-10100iKP61197802-198005

AM/FM

main86011-10102iKP61..SED..(S,SE,XL)198005-198208

AM/FM

main86011-10170iKP61197802-198005

AM/FM & CASSETTE TAPE,TEN

main86011-10172iKP61..SED..(S,SE,XL)198005-198208

AM/FM & CASSETTE TAPE,TEN

main86011-10180iKP6#197905-198005

AM

main86011-10181iKP61..4D..(DLX,XL)198005-198208

AM

86011ACONDENSER, RADIO SETTING

main90980-04010iKP62198005-198409

CONNECTOR : PLUG

main90980-04010iKP6#197802-198005

CONNECTOR : PLUG

main90980-04027iKP61..DLX,DXA,S,SE,XL197802-198409

CONNECTOR : PLUG&(O),TEN

main90980-04033iKP6#197903-198409

CONNECTOR: PLUG&(O),MATSUSHITA

8602SPEAKER

→ Go to FIG 86-02

86120RECEIVER ASSY, RADIO

main86120-10060iKP6#197802-197905

AM

main86120-10070iKP61197802-198005

AM/FM

main86120-10140iKP6#197905-198005

AM

main86120-10150iKP61197802-198005

AM/FM & CASSETTE TAPE,TEN

main86120-10180iKP62198005-198208

AM

main86120-10190iKP61..SED..(S,SE,XL)198005-198208

AM/FM & CASSETTE TAPE,TEN

main86120-10230iKP61..S,SE,SI198208-198409

main86120-14420iKP61198208-198407

AM

main86120-14421iKP61198407-198409

AM

main86120-14440iKP61..SED..(S,SE,SI,XL)198208-198409

AM/FM

main86120-14470iKP61..SED..(DLX,S,SE,SI,XL)198208-198409

AM/FM,W/4-SPEAKER

main86120-16140iKP61..SED..(S,SE,XL)198005-198208

AM/FM

86124KNOB, RADIO RECEIVER CONTROL

main86124-10020iKP6#197802-198005

AM

main86124-12010iKP61197802-198208

AM/FM : RH

main86124-12010iKP62198005-198201

main86124-12010iKP61..DLX,DXA,S,SE,XL198005-198208

AM

main86124-14040iKP61197802-198208

AM/FM : LH

main86124-14110iKP61..DLX,S,SE,XL198005-198208

W/STEREO COMPONENT.RH

main86124-14120iKP61..DLX,S,SE,XL198005-198208

W/STEREO COMPONENT.LH

main86124-16050iKP61197802-198005

AM/FM & CASSETTE TAPE,TEN

main86124-16060iKP61..SED..(S,SE,XL)198005-198208

AM/FM & CASSETTE TAPE,TEN RH

main86124-16090iKP61..SED..(S,SE,XL)198005-198208

AM/FM & CASSETTE TAPE,TEN LH

86125KNOB, RADIO RECEIVER SWITCH

main86125-10030iKP6#197802-198005

AM : RH

main86125-10040iKP6#197802-198005

AM : LH

main86125-12011iKP62198005-198208

AM

main86125-12011iKP61197802-198208

AM/FM

main86125-16040iKP61197802-198005

AM/FM & CASSETTE TAPE,TEN

main86125-16050iKP61..SED..(S,SE,XL)198005-198208

AM/FM & CASSTTE TAPE,TEN RH

main86125-16080iKP61..S,SE,XL198005-198208

AM/FM & CASSETTE TAPE,TEN LH

9004170131

main90041-70131

9010106008

main90101-06008

9017905004

main90179-05004

9020109365

main90201-09365

9338515010

main93385-15010

9356655512

main93566-55512

12 parts on this diagram · 11 diagrams in section
