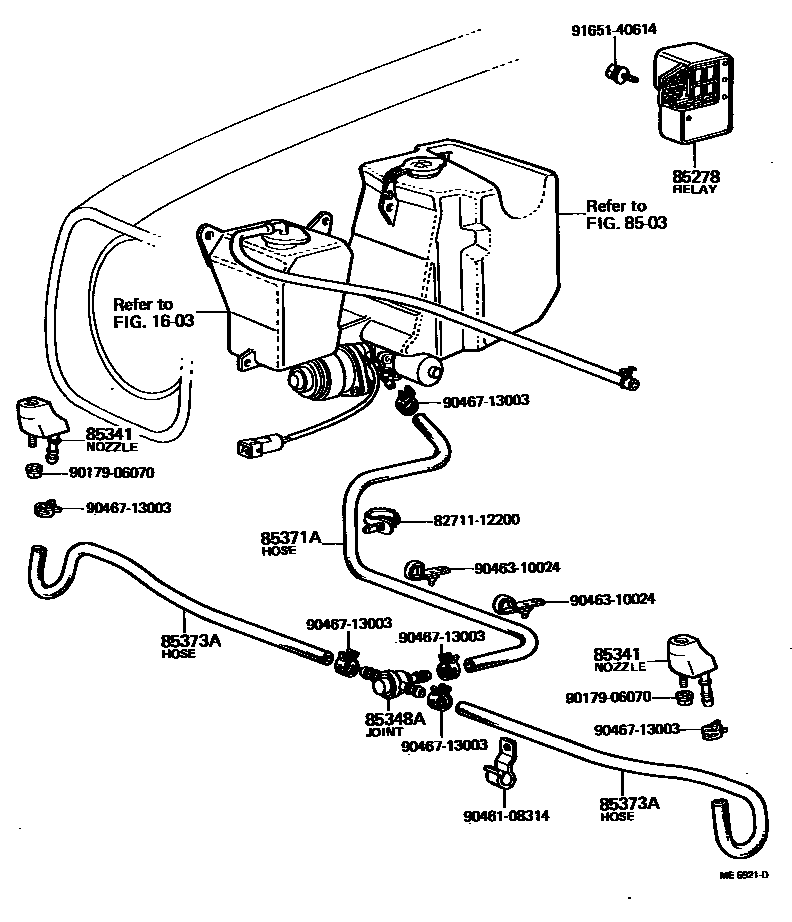

HEADLAMP CLEANER

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85278RELAY ASSY, HEADLAMP CLEANER CONTROL

main85276-14010iKP61..S,SE197802-198005

main85276-22020iKP61..S198005-198108

85341NOZZLE, HEADLAMP CLEANER WASHER

main85035-10130iKP61..S,SE197802-198005

RH

main85035-10131×2iKP61..S198005-198108

main85045-10010iKP61..S,SE197802-198005

LH

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

main85031-12010iKP61..S198005-198108

85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)

main85343-10040iKP61..S,SE197802-198005

main85343-10041iKP61..S198005-198108

85373AHOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)

main85343-10010iKP61..S,SE197802-198005

main85343-10011×2iKP61..S198005-198108

main85343-10070iKP61..S,SE197802-198005

LH

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9017906070

main90179-06070

9046108314

main90461-08314

9046310024

main90463-10024

9046713003

main90467-13003

9165140614

main91651-40614

13 parts on this diagram · 1 diagram in section
