WINDSHIELD WIPER

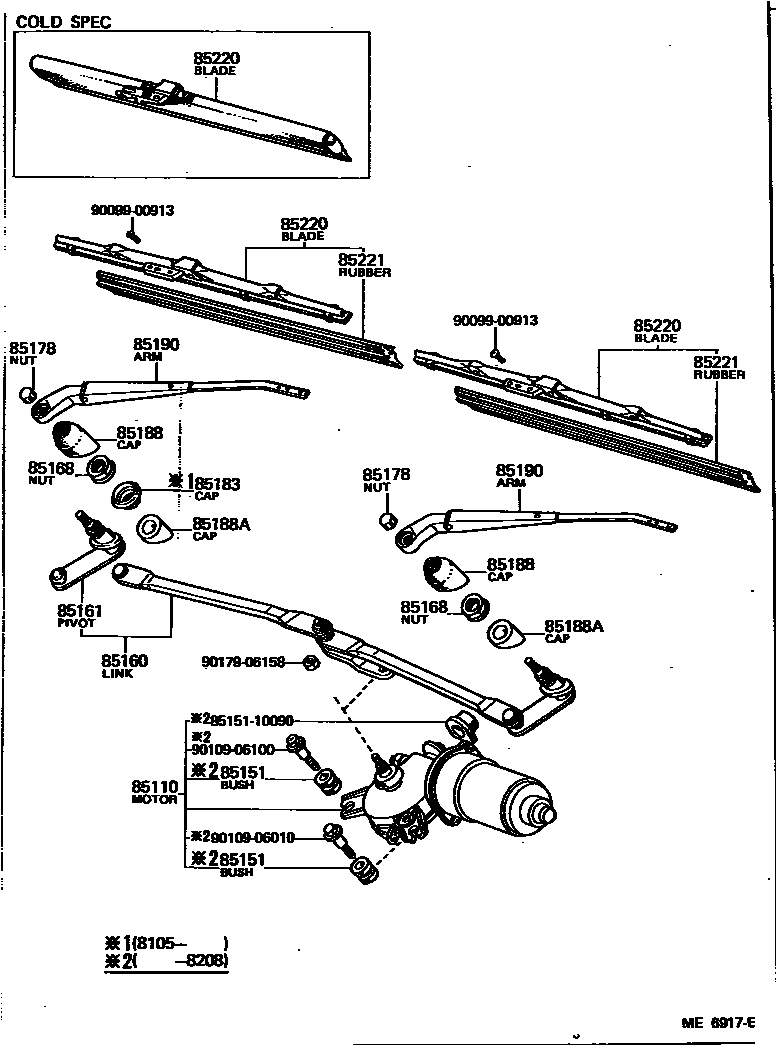

Parts diagram

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-10080i197802-198005

main85110-10081i198005-198208

main85110-10120i197802-198005

COLD SPEC

main85110-10121i198108-198208

COLD SPEC

main85110-10230i198208-198409

85151BUSH, WINDSHIELD WIPER MOTOR GEAR HOUSING COVER

main85151-10080×2i197802-198208

85160LINK ASSY, WINDSHIELD WIPER

main85160-10080i197802-198105

main85160-10081i198105-198208

main85160-10100i197802-198105

COLD SPEC

main85160-10101i198108-198208

COLD SPEC

main85160-10150i198208-198409

85161PIVOT, WINDSHIELD WIPER LINK, NO.1

main85161-10081i198105-198208

main85161-10150i198208-198409

85168NUT, WINDSHIELD WIPER LINK PIVOT

main85186-10080×2i197802-198005

main85186-10081×2i198005-198409

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08013×2i197802-198409

85183CAP OR ROD, WINDSHIELD WIPER SHIELD

main85247-10080i198105-198409

DRIVER SIDE

85188CAP, WINDSHIELD WIPER PIVOT, NO.1

main85178-10080i197802-197904

LH

main85178-10081i197904-198105

LH

main85178-10090i197802-198105

RH

85188ACAP, WINDSHIELD WIPER PIVOT, NO.2

main85176-10080i198105-198409

PASSENGER SIDE

main85176-10090i198105-198409

DRIVER SIDE

main85179-10080×2i197802-197904

85190ARM ASSY, WINDSHIELD WIPER

main85190-10280×2i197802-198005

main85190-10281×2i198005-198409

85220BLADE ASSY, WINDSHIELD WIPER

main85220-10180×2i198311-198409

main85220-12220×2i197802-198005

main85220-20080×2i197802-198005

COLD SPEC

main85220-22180×2i198005-198311

main85220-30110×2i198005-198208

COLD SPEC

85221BLADE, WINDSHIELD WIPER

main85221-10050×2i198311-198409

main85221-12060×2i197802-198005

main85221-22030×2i198005-198311

8515110090BUSH, WINDSHIELD WIPER MOTOR GEAR HOUSING COVER

main85151-10090

9009900913

main90099-00913

9010906010

main90109-06010

9010906100

main90109-06100

9017906158

main90179-06158

17 parts on this diagram · 1 diagram in section
