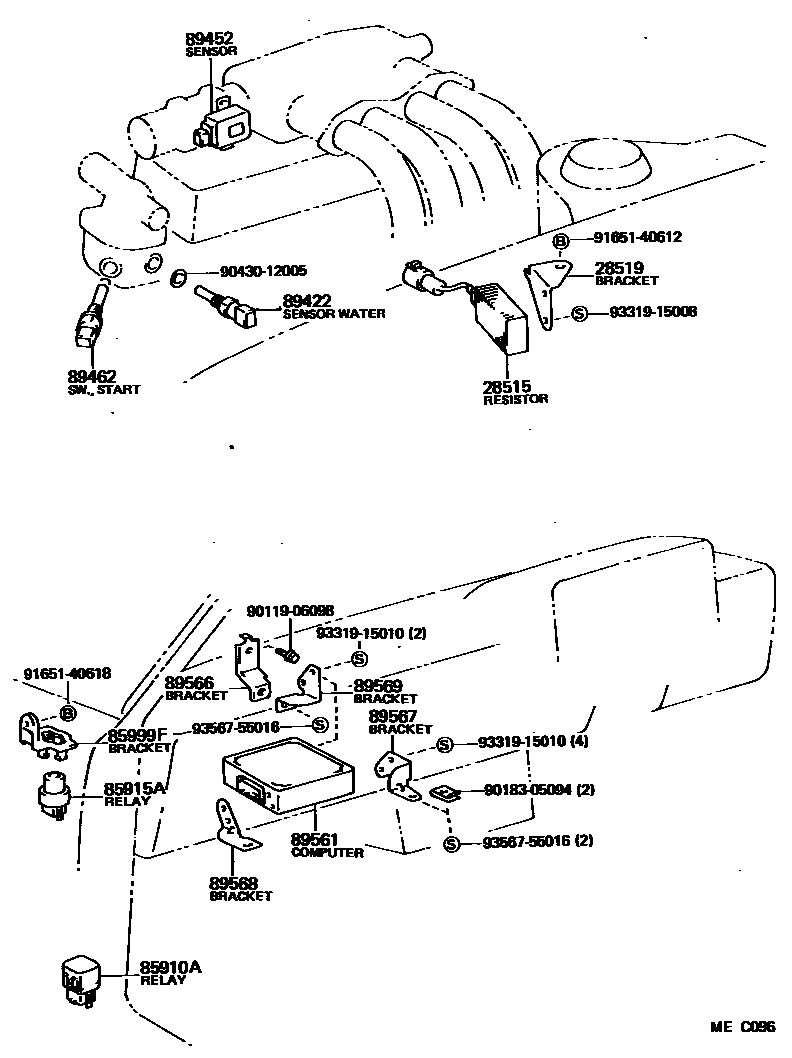

ELECTRONIC FUEL INJECTION SYSTEM
28515RESISTOR, SOLENOID
28519BRACKET, SOLENOID RESISTOR
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
85915ARELAY, MAIN
85999FBRACKET, RELAY
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89452SENSOR, THROTTLE POSITION (FOR E.F.I.)
89462SWITCH, START INJECTOR TIME
89561COMPUTER, FUEL INJECTION
89566BRACKET, FUEL INJECTION COMPUTER
89567BRACKET, FUEL INJECTION COMPUTER
89568BRACKET, FUEL INJECTION COMPUTER
89569BRACKET, FUEL INJECTION COMPUTER
9011906098
main90119-06098
9018305094
main90183-05094
9043012005
main90430-12005
9165140612
main91651-40612
9165140618
main91651-40618
9331915008
main93319-15008
9331915010
main93319-15010
9356755016
main93567-55016
21 parts on this diagram · 1 diagram in section
