INDICATOR

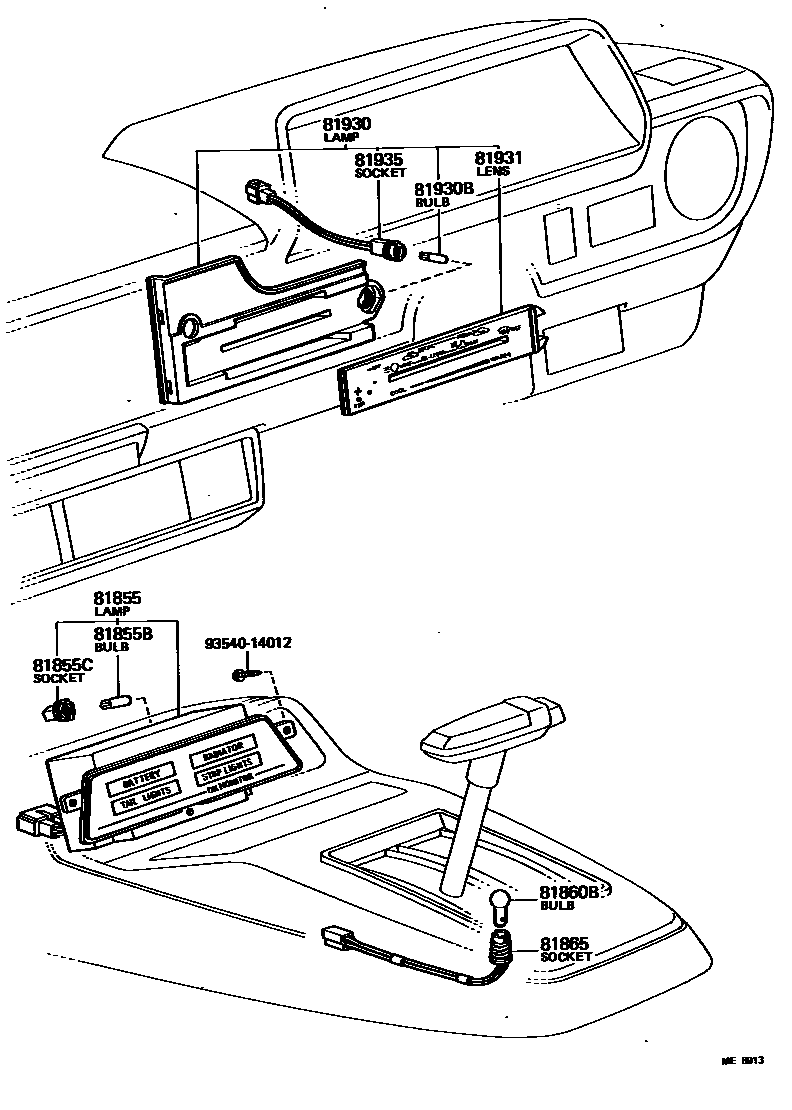

Parts diagram

81855LAMP ASSY, INDICATOR (FOR OK MONITER)

main89590-10010i197802-198005

main89590-10020i198005-198208

81855BBULB, INDICATOR LAMP (FOR OK MONITER)

main90981-11014i197802-198208

12V 1.4W

81855CSOCKET & WIRE, INDICATOR LAMP

main83101-14010i197802-198208

81860BBULB, TRANSMISSION INDICATOR LAMP

main99132-11017i197802-198409

81865SOCKET AND WIRE, TRANSMISSION INDICATOR LAMP

main35906-12030i197802-198409

81930LAMP ASSY, HEATER CONTROL INDICATOR, NO.1

main81930-10020-01i197802-198005

BLACK,BLACK,TRIM2#

main81930-10021i198005-198208

BLACK

main81930-10021i198202-198203

LIMITED DXA

main81930-10040-01i197802-198005

BLACK,BLACK,TRIM2#

main81930-10040-04i197802-198005

BLUE,BLUE,TRIM8#

main81930-10040-05i197802-198005

BEIGE,BEIGE,TRIM4#

main81930-10041-01i198005-198208

BLACK,BLACK,TRIM2#

main81930-10041-02i198108-198208

XL-L,D-WINE,RED/MAROON,TRIM0#

main81930-10041-04i198005-198108

BLUE,BLUE,TRIM2#,4#,8#

main81930-10041-06i198005-198108

LIGHT BROWN,BROWN,TRIM4#

main81930-10041-06i198005-198208

XL-L,LIGHT BROWN,BROWN,TRIM0#

main81930-10050-01i197802-198005

BLACK,BLACK,TRIM2#

main81930-10050-04i197802-198005

BLUE,BLUE,TRIM8#

main81930-10050-05i197802-198005

BEIGE,BEIGE,TRIM4#

main81930-10051-01i198005-198208

BLACK,BLACK,TRIM2#

main81930-10051-04i198005-198108

BLUE,BLUE,TRIM2#,4#,8#

main81930-10051-06i198005-198208

LIGHT BROWN,BROWN,TRIM2#,4#

main81930-10060i197802-198005

main81930-10061i198005-198208

main81930-10120-06i198205-198207

SPECIAL DXA,LIGHT BROWN,BROWN,TRIM2#,4#

81930BBULB, HEATER CONTROL INDICATOR LAMP

main81936-30080i198005-198208

12V 1.4W

main90981-11018i197802-198409

81931LENS, HEATER CONTROL INDICATOR

main81931-10020i197802-198005

main81940-10010i198208-198409

81935SOCKET AND WIRE, HEATER CONTROL INDICATOR LAMP

main81935-10031i198005-198208

main81939-10020i197802-198005

9354014012

main93540-14012

10 parts on this diagram · 3 diagrams in section
