Toyota 121120 — REAR COMBINATION LAMP
81550LAMP ASSY, REAR COMBINATION, RH
81550BBULB(FOR REAR COMBINATION LAMP)
81551LENS, REAR COMBINATION LAMP, RH
81554GASKET, REAR COMBINATION LAMP BODY, RH
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81560LAMP ASSY, REAR COMBINATION, LH
81561LENS, REAR COMBINATION LAMP, LH
81564GASKET, REAR COMBINATION LAMP BODY, LH
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
8155912300MOULDING, REAR COMBINATION LAMP, RH
9017905095
9351014010

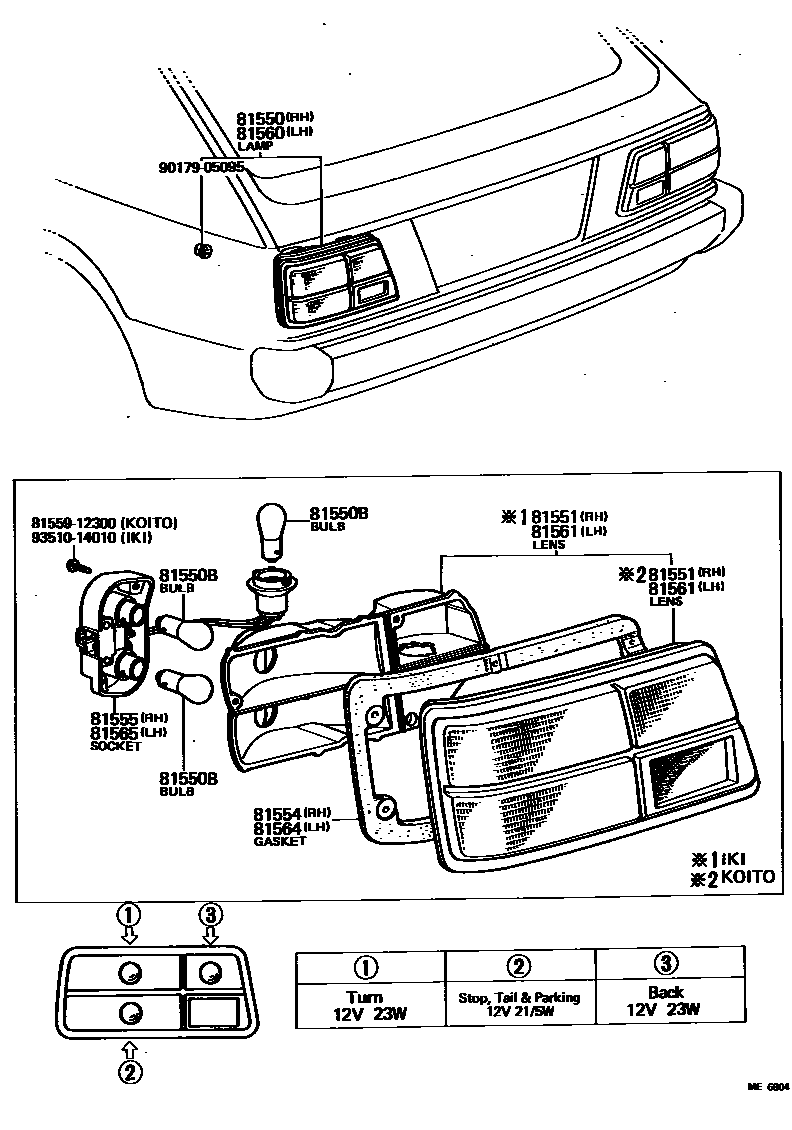

12 parts on this diagram · 5 diagrams in section
REAR COMBINATION LAMP for Toyota 121120
This section contains 16 genuine Toyota parts for the REAR COMBINATION LAMP system of the Toyota 121120. Key components include: LAMP ASSY, REAR COMBINATION, RH, BULB(FOR REAR COMBINATION LAMP), LENS, REAR COMBINATION LAMP, RH, GASKET, REAR COMBINATION LAMP BODY, RH, SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH.
