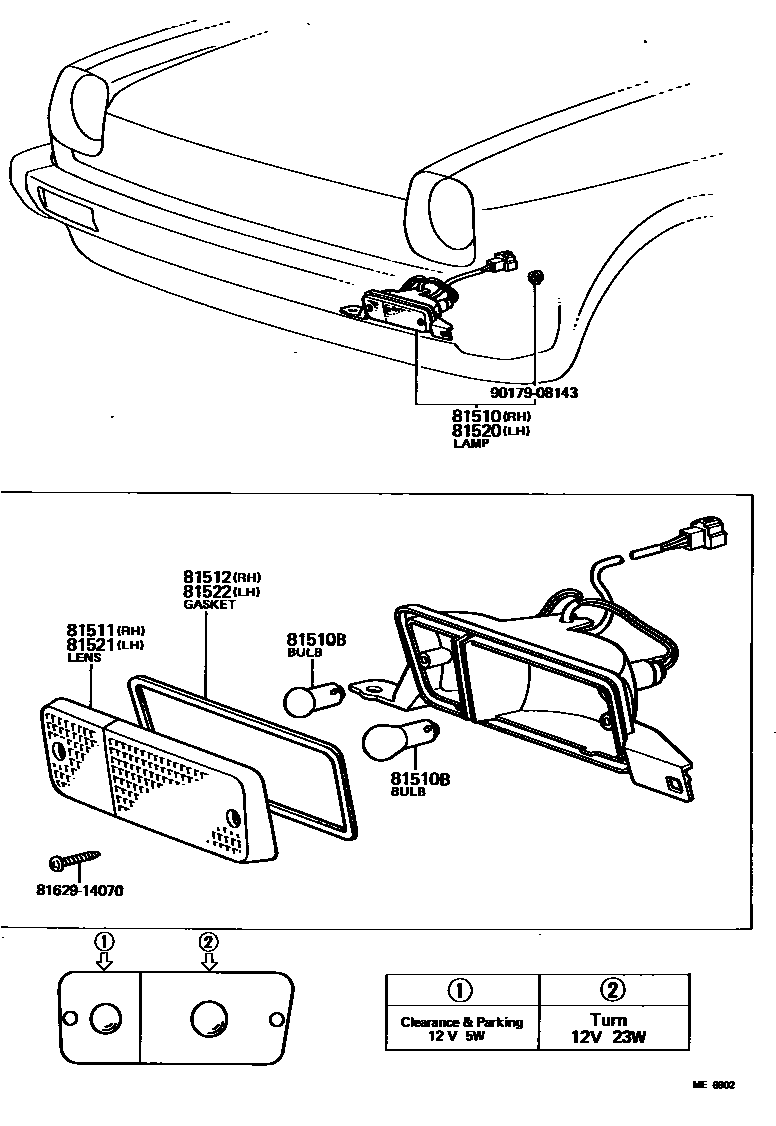

FRONT TURN SIGNAL LAMP

0001 1 0002 1

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-19565iKP6#..DLX,DXA,S,STD,XL198005-198208

main81510-19635iKP61..SED..(S,SE,XL)198005-198208

W/URETHANE BUMPER

main81510-19845iKP61198208-198409

main81510-29505iKP61..S,SI198301-198409

W/URETHANE BUMPER

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11050×2iKP6#197802-198208

main99132-11230×2iKP6#197802-198409

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-10120iKP6#197802-198208

main81511-12280iKP61198208-198409

main81511-14170iKP61..S,SI198301-198409

W/URETHANE BUMPER

81512GASKET, FRONT TURN SIGNAL LAMP LENS, RH

main81512-14140iKP61198208-198409

main81512-14150iKP6#197802-198208

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-19565iKP6#197802-198005

main81520-19635iKP61..SED..(S,SE,XL)198005-198208

W/URETHANE BUMPER

main81520-19845iKP61198208-198409

main81520-29505iKP61..S,SI198301-198409

W/URETHANE BUMPER

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-10100iKP6#197802-198208

main81521-12260iKP61198208-198409

main81521-14170iKP61..S,SI198301-198409

W/URETHANE BUMPER

81522GASKET, FRONT TURN SIGNAL LAMP LENS, LH

main81512-14140iKP61198208-198409

main81512-14150iKP6#197802-198208

8162914070

main81629-14070

9017908143

main90179-08143

9 parts on this diagram · 2 diagrams in section
