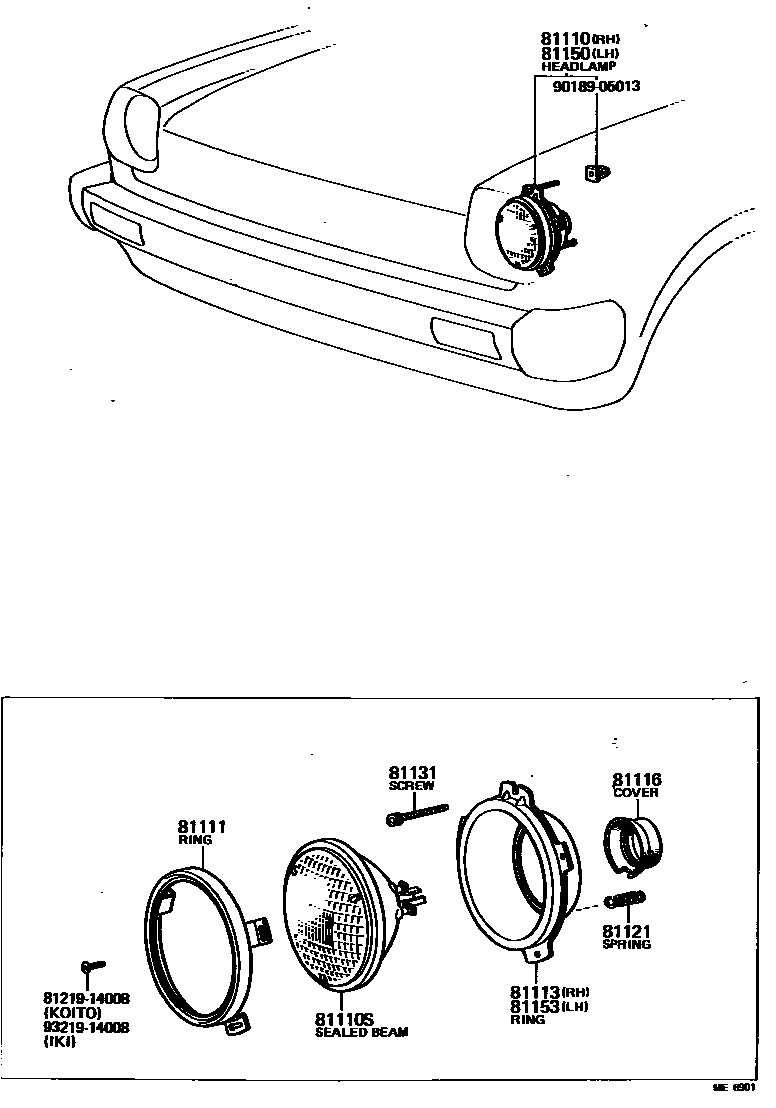

HEADLAMP

0001 1 0002 1 0004 1

81110HEADLAMP ASSY, RH

main81110-10150iKP6#197802-198005

KOITO

main81110-19726iKP61..SED..(DLX,DXA,SE,STD,XL)198005-198208

KOITO

main81110-19735iKP6#197802-198005

IKI

main81110-19736iKP61..SED..(DLX,DXA,SE,STD,XL)198005-198208

IKI

main81110-80072iKP61..S,SE198005-198208

HALOGEN

main81110-80077iKP62198005-198201

IKI

main81110-80248iKP61..DLX,DXA,SE,STD,XL198208-198409

KOITO

main81110-80249iKP61..DLX,DXA,SE,STD,XL198208-198409

IKI

main81110-80256iKP61..S,SE,SI198208-198409

HALOGEN

81110SSEALED BEAM UNIT, NO.1

main90981-01015×2iKP6#197802-198005

main90981-01030×2iKP6#197802-198005

main90981-04001×2iKP61..DLX,DXA,SE,STD,XL198208-198409

main90981-04002×2iKP61..DLX,DXA,SE,STD,XL198208-198409

12V 65/55W,IKI

main90981-04010×2iKP61..S,SE,SI198005-198409

81111RING, SEALED BEAM RETAINING

main81111-12421×2iKP62198005-198201

IKI

main81111-16010×2iKP61..SED..(DLX,DXA,SE,STD,XL)198005-198208

IKI

main81111-16020×2iKP61198208-198409

KOITO

main81111-22150×2iKP6#197802-198005

KOITO

81113RING, SEALED BEAM MOUNTING, NO.1 RH

main81113-10061iKP6#197802-198005

IKI

main81113-10310iKP61198210-198409

KOITO

main81113-12070iKP6#197802-198005

KOITO

main81113-12571iKP61198208-198210

KOITO

main81113-12581iKP61..DLX,DXA,SE,STD,XL198208-198409

IKI

main81113-96440iKP62198005-198201

IKI

main81153-16010iKP61..SED..(DLX,DXA,SE,STD,XL)198005-198208

IKI

main81153-16020iKP61..SED198005-198208

KOITO

81116COVER, SEALED BEAM UNIT

main81116-10060×2iKP61197802-197807

IKI

main81116-25050×2iKP61197802-197807

KOITO

81121SPRING, HEADLAMP TENSION

main81121-10170×2iKP6#197802-198005

IKI

main81121-16010×2iKP61..SED..(DLX,DXA,SE,STD,XL)198005-198208

IKI

main81121-16011×2iKP61..DLX,DXA,SE,STD,XL198208-198409

IKI

main81121-16020×2iKP61..SED198005-198208

KOITO

main81121-62010×2iKP6#197802-198005

KOITO

main90506-18018×2iKP61..4D198201-198208

IKI

81131SCREW, HEADLAMP ADJUSTING

main81131-10031×4iKP61198208-198409

KOITO

main81131-10150×4iKP6#197802-198005

KOITO

main81131-10170×4iKP6#197802-198005

IKI

main81131-16010×4iKP6#..DLX,DXA,SE,STD,XL198005-198409

IKI

main81131-20360×4iKP61..SED198005-198208

KOITO

81150HEADLAMP ASSY, LH

main81150-10100iKP6#197802-198005

KOITO

main81150-19666iKP61..SED..(DLX,DXA,SE,STD,XL)198005-198208

KOITO

main81150-19675iKP6#197802-198005

IKI

main81150-19676iKP61..SED..(DLX,DXA,SE,STD,XL)198005-198208

IKI

main81150-80069iKP61..S,SE198005-198208

HALOGEN

main81150-80074iKP62198005-198201

IKI

main81150-80245iKP61..DLX,DXA,SE,STD,XL198208-198409

KOITO

main81150-80246iKP61..DLX,DXA,SE,STD,XL198208-198409

IKI

main81150-80253iKP61..S,SE,SI198208-198409

HALOGEN

81153RING, SEALED BEAM MOUNTING, NO.1 LH

main81113-16010iKP61..SED..(DLX,DXA,SE,STD,XL)198005-198208

IKI

main81113-16020iKP61..SED198005-198208

KOITO

main81153-10021iKP6#197802-198005

IKI

main81153-10250iKP61198210-198409

KOITO

main81153-12010iKP6#197802-198005

KOITO

main81153-12501iKP61198208-198210

KOITO

main81153-12511iKP61..DLX,DXA,SE,STD,XL198208-198409

IKI

main81153-96440iKP62198005-198201

IKI

8121914008BOLT, FOG LAMP

main81219-14008

9018905013

main90189-05013

9321914008

main93219-14008

12 parts on this diagram · 3 diagrams in section
