SEAT TRUCK

0001 1 0002 1

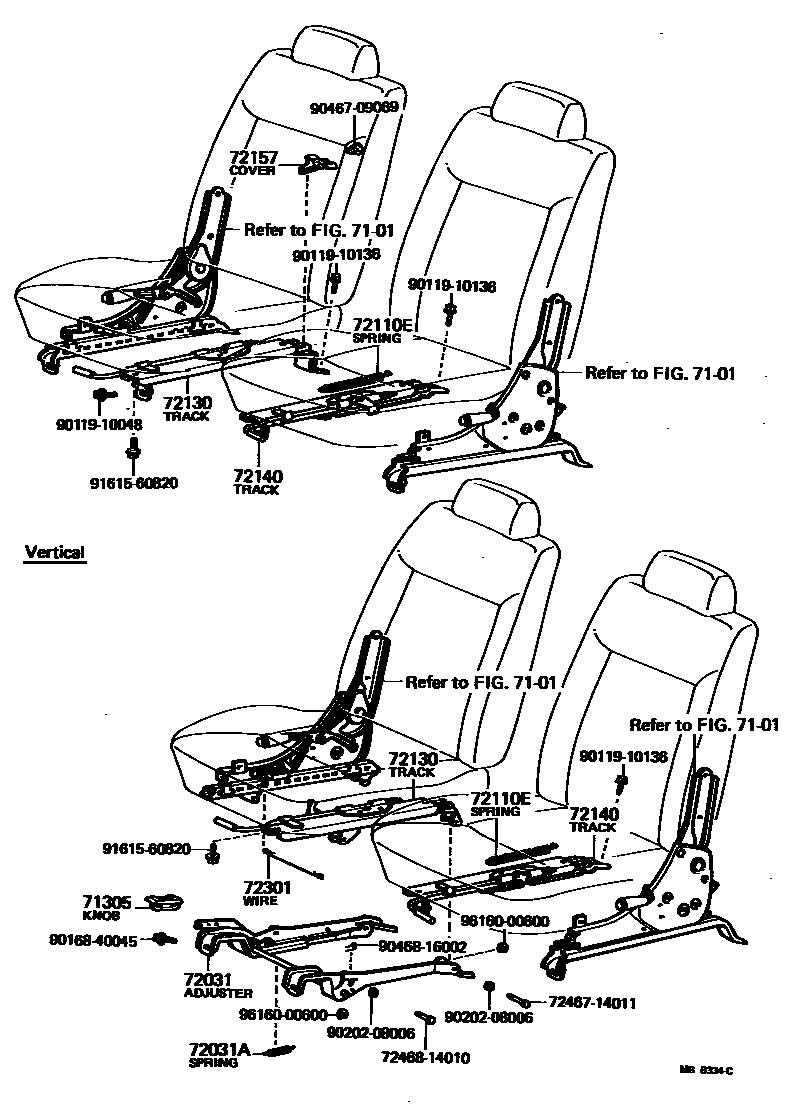

7101FRONT SEAT & SEAT TRACK

→ Go to FIG 71-01

71305KNOB SUB-ASSY, FRONT SEAT ADJUSTING

main72457-14010-01iKP61..SED..(S,SE,XL)198005-198208

BLACK,BLACK,TRIM2#

main72457-14010-02iKP61..SED..XL198108-198208

XL-L,DARK WINE,RED/MAROON,TRIM0#

main72457-14010-14iKP61..S,SE,XL198005-198108

BLUE,BLUE,TRIM2#,4#,8#

main72457-14010-26iKP61..S,SE,XL198005-198108

LIGHT BROWN,BROWN,TRIM0#,4#

72031ADJUSTER ASSY, FRONT SEAT VERTICAL

main72310-10010iKP61..S,SE,XL198005-198108

main72310-10011iKP61..SED..(S,SE,XL)198108-198208

main72480-10010iKP61..S,SE,SI; KP61..SED..XL..CBR198208-198409

XL-L

72031ASPRING, TENSION (FOR VERTICAL ADJUSTER)

main90506-16015iKP61..SED..(S,SE,XL)198005-198208

72110ESPRING, TENSION, NO.1 (FOR SEAT TRACK)

main90506-18020iKP61..3D..(DLX,S,SE,XL)197802-198208

W/WALK-IN TYPE

72130TRACK ASSY, RH SEAT, INNER

main72130-10080iKP6#197802-198005

main72130-10091iKP61..SED..(S,SE,XL)198005-198208

*VA

main72130-10100iKP6#..DLX,DXA,S,STD,XL198005-198208

main72130-10190iKP61..DLX,DXA,S,SI,STD,XL198208-198409

main72130-10200iKP61..S,SE,SI; KP61..SED..XL..CBR198208-198409

*VA; XL-L,*VA

72140TRACK ASSY, LH SEAT, INNER

main72140-10090iKP6#..4D,5D; KP61..STD197802-198005

W/O WALK-IN TYPE

main72140-10100iKP61..3D..(DLX,S,SE,XL)197802-198005

W/WALK-IN TYPE

main72140-10110iKP6#..4D,5D; KP61..3D..(DXA,STD)198005-198208

W/O WALK-IN TYPE

main72140-10120iKP61..3D..(DLX,S,SE,XL)198005-198208

W/WALK-IN TYPE

main72140-10130iKP61..3D..(DXA,STD); KP61..4D,5D198208-198409

W/O WALK-IN TYPE

main72140-10140iKP61..3D..(DLX,S,SI,XL)198208-198409

W/WALK-IN TYPE

72157COVER, SEAT TRACK BRACKET, INNER

main72157-10010iKP6#..(DLX,DXA,S,STD)..05S198012-198208

main72157-10020iKP61..S,SE,SI; KP61..SED..XL..CBR198208-198409

W/*VA; XL-L,W/*VA

72301WIRE SUB-ASSY, SEAT TRACK EQUALIZING

main72301-10020iKP61..SED..(S,SE,XL)198005-198208

*VA

main72301-10050iKP61..S,SE,SI; KP61..SED..XL..CBR198208-198409

*VA; XL-L,W/*VA

7246714011PIN, VERTICAL ADJUSTER

main72467-14011

7246814010

main72468-14010

9011910048

main90119-10048

9011910136

main90119-10136

9016840045

main90168-40045

9020208006

main90202-08006

9046709069

main90467-09069

9046816002

main90468-16002

9161560820

main91615-60820

9616000600

main96160-00600

19 parts on this diagram · 2 diagrams in section
