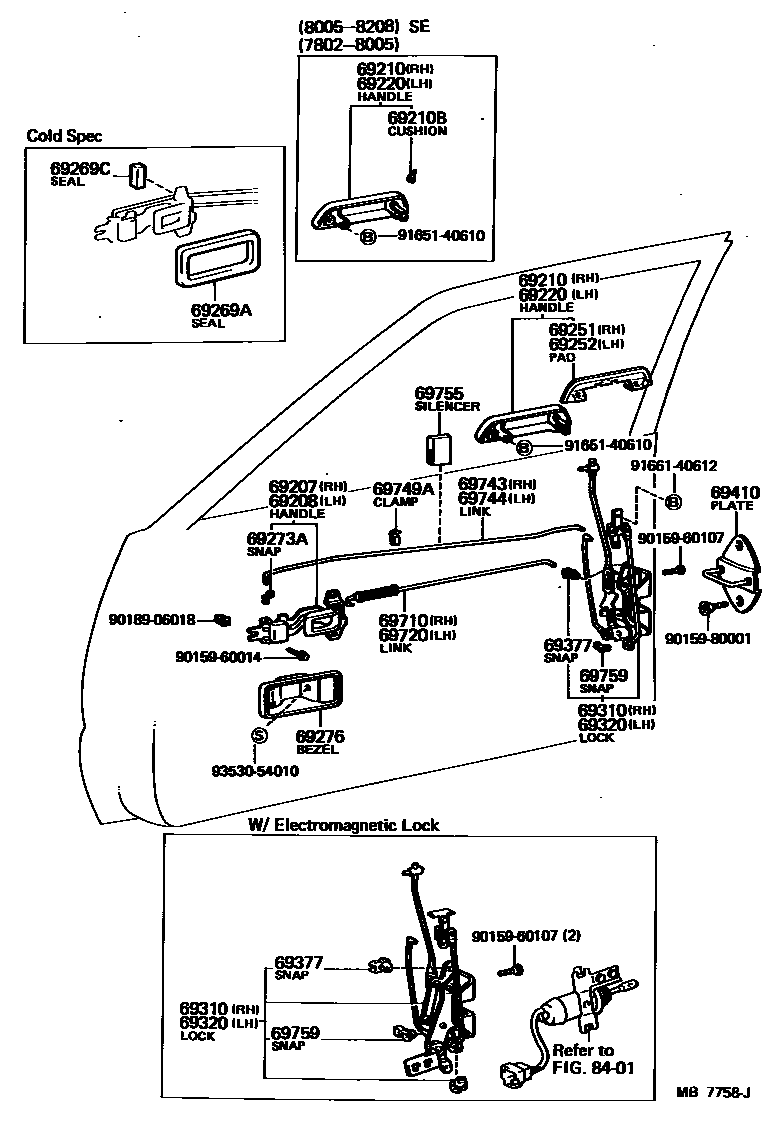

FRONT DOOR LOCK & HANDLE

0001 1 0002 1

69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-10010-01iKP61..3D197802-198208

BLACK,BLACK,TRIM2#

main69205-10010-02iKP61..3D..XL..CBR198108-198409

XL-L,DARK WINE,RED/MAROON,TRIM0#

main69205-10010-03iKP61..3D198208-198409

GRAY,GRAY,TRIM1#

main69205-10010-04iKP61..3D..(DLX,DXA,S,SE,XL)197802-198108

BLUE,BLUE,TRIM2#,4#,8#

main69205-10010-05iKP61..3D..(DLX,S,SE,XL)197802-198005

BEIGE,BEIGE,TRIM4#

main69205-10010-06iKP61..3D..(DLX,DXA,SE,XL)198108-198208

LIGHT BROWN,BROWN,TRIM2#,4#

main69205-10010-16iKP61..3D..(DLX,DXA,XL)198208-198409

BROWN,BROWN,TRIM1#,4#

main69205-10020-01iKP6#..4D,5D197812-198208

BLACK,BLACK,TRIM2#

main69205-10020-02iKP61..SE198208-198409

DARK WINE,RED/MAROON,TRIM3#

main69205-10020-03iKP61..4D,5D198208-198409

GRAY,GRAY,TRIM1#

main69205-10020-04iKP6#..(4D,5D)..(DLX,S,SE,XL)197812-198005

BLUE,BLUE,TRIM8#

main69205-10020-05iKP6#..(4D,5D)..(DLX,S,SE,XL)197812-198005

BEIGE,BEIGE,TRIM4#

main69205-10020-06iKP6#..(4D,5D)..(DLX,S,SE,XL)198005-198108

LIGHT BROWN,BROWN,TRIM0#,4#

main69205-10020-16iKP61..5D..(DLX,SE,XL)198208-198409

BROWN,BROWN,TRIM1#,4#

main69205-12040-01iKP6#..4D,5D197802-197812

BLACK,BLACK,TRIM2#

main69205-12040-04iKP6#..(4D,5D)..(DLX,S,SE,XL)197802-197812

BLUE,BLUE,TRIM8#

main69205-12040-05iKP6#..(4D,5D)..(DLX,S,SE,XL)197802-197812

BEIGE,BEIGE,TRIM4#

69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-10010-01iKP61..3D197802-198208

BLACK,BLACK,TRIM2#

main69206-10010-02iKP61..3D..XL..CBR198108-198409

XL-L,DARK WINE,RED/MAROON,TRIM0#

main69206-10010-03iKP61..3D198208-198409

GRAY,GRAY,TRIM1#

main69206-10010-04iKP61..3D..(DLX,DXA,S,SE,XL)197802-198108

BLUE,BLUE,TRIM2#,4#,8#

main69206-10010-05iKP61..3D..(DLX,S,SE,XL)197802-198005

BEIGE,BEIGE,TRIM4#

main69206-10010-06iKP61..3D..(DLX,DXA,SE,XL)198108-198208

LIGHT BROWN,BROWN,TRIM2#,4#

main69206-10010-16iKP61..3D..(DLX,DXA,XL)198208-198409

BROWN,BROWN,TRIM1#,4#

main69206-10020-01iKP6#..4D,5D197812-198208

BLACK,BLACK,TRIM2#

main69206-10020-02iKP61..SE198208-198409

DARK WINE,RED/MAROON,TRIM3#

main69206-10020-03iKP61..4D,5D198208-198409

GRAY,GRAY,TRIM1#

main69206-10020-04iKP61..5D198005-198108

BLUE,BLUE,TRIM2#,4#,8#

main69206-10020-05iKP6#..(4D,5D)..(DLX,S,SE,XL)197812-198005

BEIGE,BEIGE,TRIM4#

main69206-10020-06iKP6#..(4D,5D)..(DLX,SE,XL)..05S198108-198208

LIGHT BROWN,BROWN,TRIM2#,4#

main69206-10020-16iKP61..5D..(DLX,SE,XL)198208-198409

BROWN,BROWN,TRIM1#,4#

main69206-12040-01iKP6#..4D,5D197802-197812

BLACK,BLACK,TRIM2#

main69206-12040-04iKP6#..(4D,5D)..(DLX,S,SE,XL)197802-197812

BLUE,BLUE,TRIM8#

main69206-12040-05iKP6#..(4D,5D)..(DLX,S,SE,XL)197802-197812

BEIGE,BEIGE,TRIM4#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-10030iKP6#197802-198005

CHROME PLATED

main69210-10040iKP61..S197903-198005

BLACK

main69210-10041iKP6#..DLX,DXA,S,STD,XL198005-198208

BLACK

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-03021×2iKP61..SE198005-198208

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-10030iKP6#197802-198005

CHROME PLATED

main69220-10040iKP61..S197903-198005

BLACK

main69220-10041iKP6#..DLX,DXA,S,STD,XL198005-198208

BLACK

69251PAD, FRONT DOOR OUTSIDE HANDLE, FRONT RH

main69241-10030iKP6#..DLX,DXA,S,STD,XL198005-198208

69252PAD, FRONT DOOR OUTSIDE HANDLE, FRONT LH

main69241-10030iKP6#..DLX,DXA,S,STD,XL198005-198208

69269ASEAL, DOOR INSIDE HANDLE NO.1(FOR FRONT DOOR)

main69269-14010×2iKP61..3D198312-198409

69269CSEAL, DOOR INSIDE HANDLE NO.2(FOR FRONT DOOR)

main69289-12010×2iKP61..3D198312-198409

69273ASNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR)

69276BEZEL, FRONT DOOR INSIDE HANDLE

main69276-10012-01×2iKP6#..4D,5D197802-198208

BLACK,BLACK,TRIM2#

main69276-10012-02×2iKP61..5D..DLX198301-198303

LISSE SPECIAL,DARK WINE,RED/MAROON,TRIM3#

main69276-10012-03×2iKP61..4D,5D198208-198409

GRAY,GRAY,TRIM1#

main69276-10012-04×2iKP61..5D198005-198108

BLUE,BLUE,TRIM2#,4#,8#

main69276-10012-05×2iKP6#..(4D,5D)..(DLX,S,SE,XL)197802-198005

BEIGE,BEIGE,TRIM4#

main69276-10012-10×2iKP61..5D..(DLX,SE,XL)198208-198409

BROWN,BROWN,TRIM1#,4#

main69276-10012-46×2iKP6#..(4D,5D)..(DLX,SE,XL)..05S198108-198208

LIGHT BROWN,BROWN,TRIM2#,4#

main69276-20011-01×2iKP61..3D197802-198208

BLACK,BLACK,TRIM2#

main69276-20011-02×2iKP61..3D..DLX198301-198303

LISSE SPECIAL,DARK WINE,RED/MAROON,TRIM3#

main69276-20011-03×2iKP61..3D198208-198409

GRAY,GRAY,TRIM1#

main69276-20011-04×2iKP61..3D..(DLX,DXA,S,SE,XL)197802-198108

BLUE,BLUE,TRIM2#,4#,8#

main69276-20011-05×2iKP61..3D..(DLX,S,SE,XL)197802-198005

BEIGE,BEIGE,TRIM4#

main69276-20011-36×2iKP61..3D..(DLX,DXA,S,SE,XL)198005-198108

LIGHT BROWN,BROWN,TRIM4#

main69276-20011-46×2iKP61..3D..(DLX,DXA,XL)198208-198409

BROWN,BROWN,TRIM1#,4#

69310LOCK ASSY, FRONT DOOR, RH

main69310-10060iKP61..3D197802-198012

main69310-10061iKP61..3D198012-198208

main69310-10062iKP61..3D198208-198409

W/O ELECTROMAGNETIC LOCK

main69310-10070iKP62198012-198104

main69310-10071iKP61..5D198012-198104

main69310-10080iKP61..3D..XL..CBR198208-198409

XL-L,W/ELECTROMAGNETIC LOCK

main69310-10090iKP61..5D..XL; KP61..SE198208-198409

W/ELECTROMAGNETIC LOCK; XL-L,W/ELECTROMAGNETIC LOCK

69320LOCK ASSY, FRONT DOOR, LH

main69320-10060iKP61..3D197802-198012

main69320-10061iKP61..3D198012-198208

main69320-10062iKP61..3D198208-198409

W/O ELECTROMAGNETIC LOCK

main69320-10070iKP6#..4D,5D197802-198012

main69320-10071iKP6#..4D,5D198104-198409

W/O ELECTROMAGNETIC LOCK

main69320-10080iKP61..3D..XL..CBR198208-198409

XL-L,W/ELECTROMAGNETIC LOCK

main69320-10090iKP61..5D..XL; KP61..SE198208-198409

W/ELECTROMAGNETIC LOCK; XL-L,W/ELECTROMAGNETIC LOCK

69377SNAP, FRONT DOOR LOCK CONTROL ROD

main69377-30020×2iKP6#197802-198409

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-10020×2iKP61198210-198409

main69410-22020×2iKP6#197802-198210

69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH

main69710-10040iKP61..3D197802-198409

main69711-10020iKP6#..4D,5D197802-198409

69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH

main69712-10030iKP6#..4D,5D197802-198409

main69720-10040iKP61..3D197802-198409

69743LINK, FRONT DOOR LOCKING CONTROL, NO.1 RH

main69733-10010iKP61..3D197802-198409

69744LINK, FRONT DOOR LOCKING CONTROL, NO.1 LH

main69734-10010iKP61..3D197802-198409

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-12010×2iKP61..3D197802-198207

main69749-30020×2iKP61..3D198207-198409

69755SILENCER, FRONT DOOR LOCK LINK

main69759-10030×2iKP61..3D197802-198409

40X50,W/SLIT

main69759-10040×2iKP61..3D198104-198409

40X40

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-12030×4iKP6#197802-198409

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9015960014

main90159-60014

9015960107

main90159-60107

9015980001

main90159-80001

9018906018

main90189-06018

9165140610

main91651-40610

9166140612

main91661-40612

9353054010

main93530-54010

30 parts on this diagram · 2 diagrams in section
