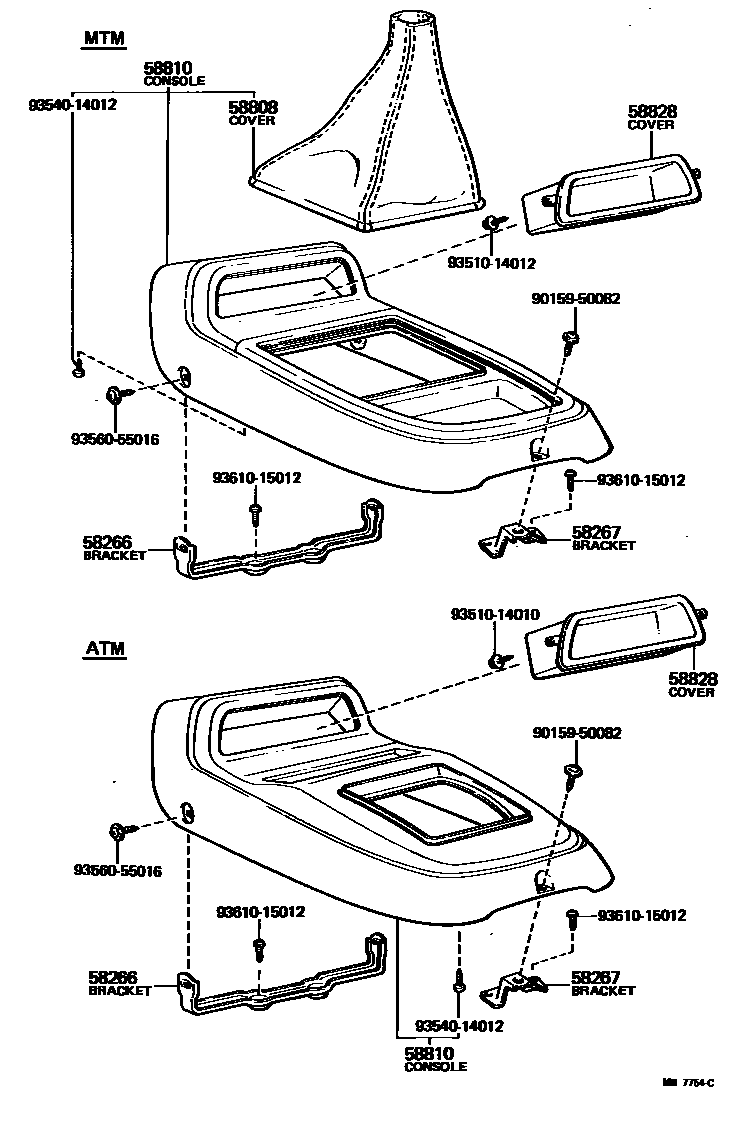

CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1 0004 1

58266BRACKET, CONSOLE BOX SUPPORT, FRONT

main58995-10010iKP61..DLX,S,SE,XL197802-198005

main58995-10011iKP61..DLX,S,SE,XL198005-198108

main58995-10012iKP6#..4D..XL198108-198208

58267BRACKET, CONSOLE BOX SUPPORT, CENTER

main58996-10010iKP61..DLX,S,SE,XL197802-198005

main58996-10011iKP61..SED..(DLX,S,SE,XL)198005-198208

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-10030iKP62..XL197802-198005

main58808-10031iKP62..XL198005-198108

main58808-10031-01iKP61..SED..MTM..(DLX,S,SE,XL)198108-198208

BLACK

sub58808-10031

main58808-10031-02iKP61..SED..XL198108-198208

XL-L,DARK WINE,RED/MAROON,TRIM0#

sub58808-10031

main58808-10040-01iKP61..MTM..(S,SE,SI,XL)198208-198409

BLACK,BLACK,TRIM1#,4#

sub58808-10040

main58808-10040-01iKP61..SED..4F..(DLX,DXA)198301-198409

STARLET,LISSE SPECIAL,BLACK,BLACK,TRIM1#

sub58808-10040

main58808-10040-02iKP61..SED..4F..XL198208-198409

XL-L,DARK WINE,RED/MAROON,TRIM0#

sub58808-10040

58810CONSOLE ASSY

main58810-10070-01iKP61..MTM..(DLX,S,SE,XL)197802-198005

BLACK,BLACK,TRIM2#

sub58810-10070

main58810-10070-04iKP61..MTM..(DLX,S,SE,XL)197802-198005

BLUE,BLUE,TRIM8#

sub58810-10070

main58810-10070-05iKP62..XL197802-198005

BEIGE,BEIGE,TRIM4#

sub58810-10070

main58810-10080-01iKP61..2FC197802-198005

BLACK,BLACK,TRIM2#

sub58810-10080

main58810-10080-04iKP61..2FC197802-198005

BLUE,BLUE,TRIM8#

sub58810-10080

main58810-10080-05iKP61..2FC197802-198005

BEIGE,BEIGE,TRIM4#

sub58810-10080

main58811-10060-01iKP62..XL198005-198108

BLACK,BLACK,TRIM2#

sub58811-10060

main58811-10060-04iKP61..MTM..(DLX,S,SE,XL)198005-198108

BLUE,BLUE,TRIM2#,4#,8#

sub58811-10060

main58811-10060-06iKP61..MTM..(DLX,S,SE,XL)198005-198108

LIGHT BROWN,BROWN,TRIM4#

sub58811-10060

main58811-10060-06iKP62..XL198005-198108

LIGHT BROWN,BROWN,TRIM0#,4#

sub58811-10060

main58811-10061-01iKP6#..4D..XL198108-198208

BLACK,BLACK,TRIM2#

sub58811-10060

main58811-10061-02iKP61..SED..MTM..XL198108-198208

XL-L,DARK WINE,RED/MAROON,TRIM0#

sub58811-10060

main58811-10061-06iKP6#..4D..XL198108-198208

LIGHT BROWN,BROWN,TRIM4#

sub58811-10060

main58811-10061-06iKP61..SED..MTM..(DLX,SE,XL)198108-198208

LIGHT BROWN,BROWN,TRIM2#,4#

sub58811-10060

main58811-10070-01iKP61..2FC198005-198108

BLACK,BLACK,TRIM2#

sub58811-10070

main58811-10070-04iKP61..2FC198005-198108

BLUE,BLUE,TRIM2#,4#,8#

sub58811-10070

main58811-10070-06iKP61..2FC198005-198108

LIGHT BROWN,BROWN,TRIM0#,4#

sub58811-10070

main58811-10071-01iKP61..3FC198108-198208

BLACK,BLACK,TRIM2#

sub58811-10071

main58811-10071-02iKP61..3FC..XL198108-198208

XL-L,DARK WINE,RED/MAROON,TRIM0#

sub58811-10071

main58811-10071-06iKP61..3FC198108-198208

LIGHT BROWN,BROWN,TRIM2#,4#

sub58811-10071

main58812-10010-02iKP61..MTM..SE198208-198409

DARK WINE,RED/MAROON,TRIM3#

main58812-10010-02iKP61..MTM..SE198208-198409

XL-L,DARK WINE,RED/MAROON,TRIM0#

main58812-10010-02iKP61..SED..DLX198301-198303

LISSE SPECIAL,DARK WINE,RED/MAROON,TRIM3#

main58812-10010-03iKP61..MTM..(S,SE,SI,XL)198208-198409

GRAY,GRAY,TRIM1#

main58812-10010-03iKP61..4F..DXA198301-198409

STARLET SPECIAL,GRAY,GRAY,TRIM1#

main58812-10010-06iKP61..SED..MTM..(SE,XL)198208-198409

BROWN,BROWN,TRIM1#,4#

main58812-10020-02iKP61..3FC..SE198208-198409

DARK WINE,RED/MAROON,TRIM3#

main58812-10020-02iKP61..3FC..SE198208-198409

XL-L,DARK WINE,RED/MAROON,TRIM0#

main58812-10020-03iKP61..3FC198208-198409

GRAY,GRAY,TRIM1#

main58812-10020-06iKP61..3FC..(SE,XL)198208-198409

BROWN,BROWN,TRIM1#,4#

58828COVER, OK MONITOR OPENING

main55529-10010iKP6#..S,XL197802-198005

main55529-10011iKP6#..4D198005-198208

9015950082

main90159-50082

9351014010

main93510-14010

9351014012

main93510-14012

9354014012

main93540-14012

9356055016

main93560-55016

9361015012

main93610-15012

11 parts on this diagram · 4 diagrams in section
