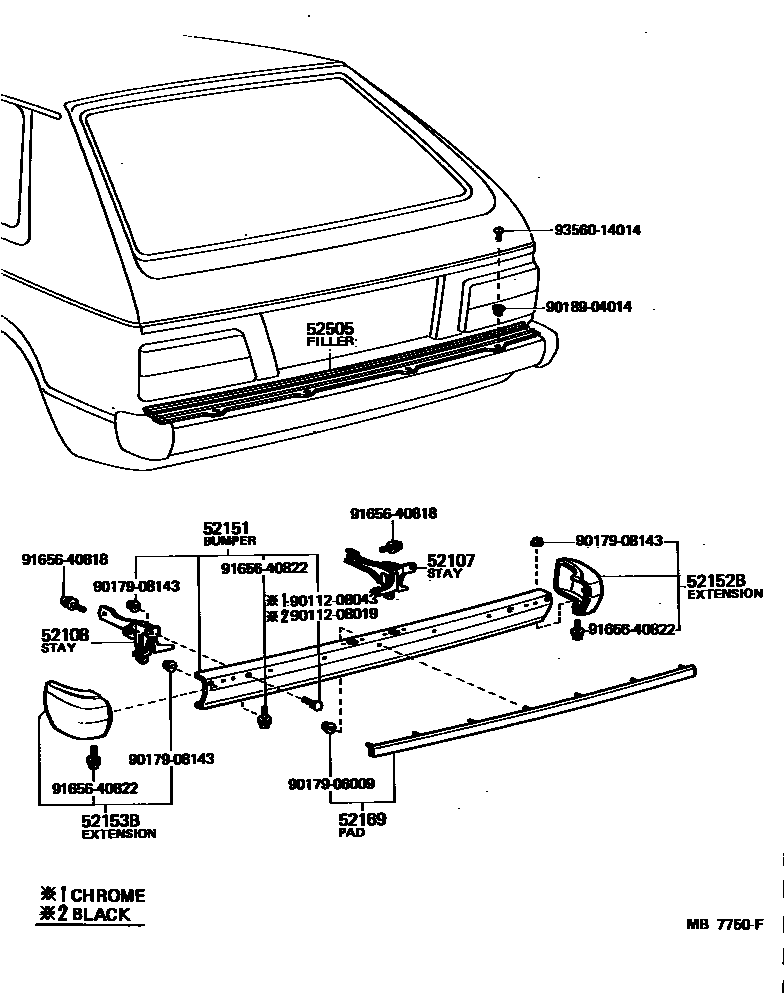

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0007 1 0008 1 0009 1

52107STAY SUB-ASSY, REAR BUMPER, RH

main52015-10010iKP61..DLX,STD,XL197802-198005

SMALL TYPE

main52015-10011iKP61..SED..(DLX,DXA,STD)198005-198208

SMALL TYPE

main52015-10020iKP61..S,SE,XL197802-198005

BIG TYPE

main52015-10021iKP61..SED..(DLX,DXA,S,XL)198005-198208

BIG TYPE

main52015-96440iKP6#..4D197810-198208

main52015-96442iKP61..4D198208-198409

52108STAY SUB-ASSY, REAR BUMPER, LH

main52016-10010iKP61..DLX,STD,XL197802-198005

SMALL TYPE

main52016-10011iKP61..SED..(DLX,DXA,STD)198005-198208

SMALL TYPE

main52016-10020iKP61..S,SE,XL197802-198005

BIG TYPE

main52016-10021iKP61..SED..(DLX,DXA,S,XL)198005-198208

BIG TYPE

main52016-96440iKP6#..4D197810-198208

main52016-96442iKP61..4D198208-198409

52151BUMPER ASSY, REAR

main52019-19035iKP61..SED..(DLX,DXA,S,XL)198005-198208

BIG TYPE

main52151-19455iKP61..DLX,STD,XL197802-198005

SMALL TYPE

main52151-19465iKP61..S197802-198005

main52151-19466iKP61..SED..(DLX,DXA,STD)198005-198208

SMALL TYPE

main52151-19475iKP61..SE,XL197802-198005

BIG TYPE,W/PAD

main52151-19535iKP62197810-198005

main52151-19545iKP6#..4D198005-198208

main52151-19785iKP61..4D198208-198409

52152BEXTENSION, REAR BUMPER, RH

main52103-19125iKP61..DLX,STD,XL197802-198005

SMALL TYPE

main52106-19095iKP61..S,SE,XL197802-198005

BIG TYPE

main52106-19096iKP61..SED..(DLX,DXA,S,XL)198005-198208

BIG TYPE

main52106-19115iKP6#..4D197810-198208

main52106-19255iKP61..4D198208-198409

52153BEXTENSION, REAR BUMPER, LH

main52102-19145iKP61..DLX,STD,XL197802-198005

SMALL TYPE

main52107-19125iKP61..S,SE,XL197802-198005

BIG TYPE

main52107-19126iKP61..SED..(DLX,DXA,S,XL)198005-198208

BIG TYPE

main52107-19145iKP6#..4D197810-198208

main52107-19285iKP61..4D198208-198409

52169PAD, REAR BUMPER

main52055-19085iKP61..SE,XL197802-198005

BIG TYPE

52505FILLER SUB-ASSY, REAR BUMPER

main52505-10010iKP61..S,SE,XL197802-198005

BIG TYPE

main52505-10011iKP61..SED..(DLX,DXA,S,XL)198005-198208

BIG TYPE

main52551-10020iKP61..SED..(S,SE,XL)198005-198208

W/URETHANE BUMPER

9011208019

main90112-08019

9011208043

main90112-08043

9017906009

main90179-06009

9017908143

main90179-08143

9018904014

main90189-04014

9165640818

main91656-40818

9165640822

main91656-40822

9356014014

main93560-14014

15 parts on this diagram · 6 diagrams in section
