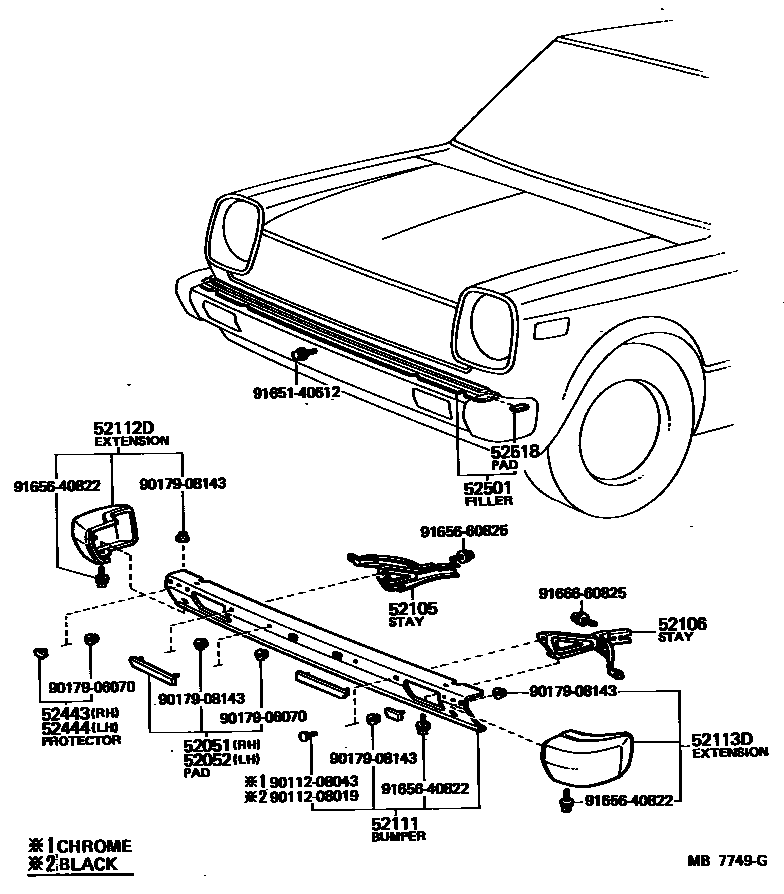

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1 0005 1

52051PAD SUB-ASSY, FRONT BUMPER, RH

main52051-19065iKP61..SE,XL197802-198005

BIG TYPE

52052PAD SUB-ASSY, FRONT BUMPER, LH

main52052-19055iKP61..SE,XL197802-198005

BIG TYPE

52105STAY SUB-ASSY, FRONT BUMPER, RH

main52011-10030iKP6#..DLX,STD,XL197802-198005

SMALL TYPE

main52011-10031iKP6#..4D; KP61..SED..(DLX,DXA,STD)198005-198208

SMALL TYPE

main52011-10040iKP61..S,SE,XL197802-198005

BIG TYPE

main52011-10041iKP61..SED..(DLX,DXA,S,XL)198005-198208

BIG TYPE

52106STAY SUB-ASSY, FRONT BUMPER, LH

main52012-10030iKP6#..DLX,STD,XL197802-198005

SMALL TYPE

main52012-10031iKP6#..4D; KP61..SED..(DLX,DXA,STD)198005-198208

SMALL TYPE

main52012-10040iKP61..S,SE,XL197802-198005

BIG TYPE

main52012-10041iKP61..SED..(DLX,DXA,S,XL)198005-198208

BIG TYPE

52111BUMPER ASSY, FRONT

main52018-19045iKP61..SED..(DLX,DXA,S,XL)198005-198208

BIG TYPE

main52018-19065iKP61..S198005-198108

BIG TYPE W/HEADLAMP CLEANER

main52111-19355iKP6#..DLX,STD,XL197802-198005

SMALL TYPE

main52111-19365iKP6#..4D; KP61..SED..(DLX,DXA,STD)198005-198208

SMALL TYPE

main52111-19385iKP61..S197802-198005

W/HEADLAMP CLEANER

main52111-19395iKP61..SE,XL197802-198005

BIG TYPE,W/PAD

main52111-19405iKP61..SE197802-198005

W/HEADLAMP CLEANER

52112DEXTENSION, FRONT BUMPER, RH

main52102-19145iKP6#..DLX,STD,XL197802-198005

SMALL TYPE

main52102-19146iKP6#..4D; KP61..SED..(DLX,DXA,STD)198005-198208

SMALL TYPE

main52102-19155iKP61..S,SE,XL197802-198005

BIG TYPE

main52102-19156iKP61..SED..(DLX,DXA,S,XL)198005-198208

BIG TYPE

52113DEXTENSION, FRONT BUMPER, LH

main52103-19125iKP6#..DLX,STD,XL197802-198005

SMALL TYPE

main52103-19126iKP6#..4D; KP61..SED..(DLX,DXA,STD)198005-198208

SMALL TYPE

main52103-19135iKP61..S,SE,XL197802-198005

BIG TYPE

main52103-19136iKP61..SED..(DLX,DXA,S,XL)198005-198208

BIG TYPE

52443PROTECTOR, FRONT BUMPER, RH

main52428-19015iKP61..SE,XL197802-198005

BIG TYPE

52444PROTECTOR, FRONT BUMPER, LH

main52429-19015iKP61..SE,XL197802-198005

BIG TYPE

52501FILLER SUB-ASSY, FRONT BUMPER

main52501-10010iKP61..S,SE,XL197802-198005

BIG TYPE

main52501-10020iKP61..S,SE197802-198005

BIG TYPE,W/HEADLAMP CLEANER

main52501-16020iKP61..SED..(DLX,DXA,S,XL)198005-198208

BIG TYPE

52518PAD, FRONT BUMPER FILLER

main52518-10010×2iKP61..S,SE,XL197802-198005

9011208019

main90112-08019

9011208043

main90112-08043

9017906070

main90179-06070

9017908143

main90179-08143

9165140612

main91651-40612

9165640822

main91656-40822

9165660825

main91656-60825

9166660825

main91666-60825

19 parts on this diagram · 5 diagrams in section
