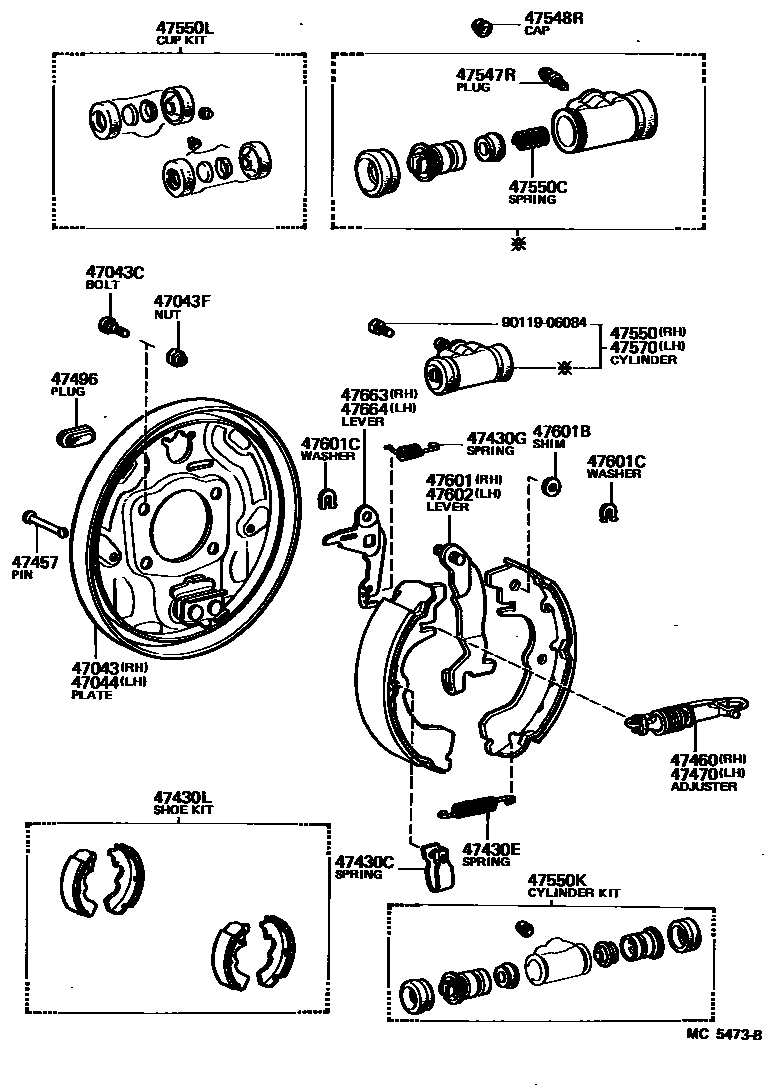

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-10020iKP61..SED197802-198409

main47043-10030iKP6#..4D197810-198409

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main42184-10010×8iKP6#197802-198409

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main94181-11000×8iKP6#197802-198409

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-10020iKP61..SED197802-198409

main47044-10030iKP6#..4D197810-198409

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main47446-10010×4iKP6#..4D197810-198409

main47446-10020×4iKP61..SED197802-198409

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-18014×2iKP61..SED197802-198409

main90506-18299×2iKP6#..4D197810-198409

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12014×2iKP61..SED197802-198409

main90506-12276×2iKP6#..4D197810-198409

47430LSHOE KIT, REAR BRAKE

main04495-10041iKP6#..4D197810-198409

sub04495-10042

main04495-10050iKP61..SED197802-198310

main04495-10060iKP61..SED198310-198409

sub04495-10061

main04497-10040iKP61..SED197802-198408

REBUILT

main04497-10050iKP6#..4D197810-198409

REBUILT

sub04497-10051

main04497-10060iKP61..SED198408-198409

REBUILT

sub04497-10061

47457PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-10010×4iKP6#197802-198409

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47061-10010iKP61..SED197802-198409

main47061-12020iKP6#..4D197810-198409

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47062-10010iKP61..SED197802-198409

main47062-12020iKP6#..4D197810-198409

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011×2iKP6#197802-198409

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010×2iKP6#197802-198409

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iKP6#197802-198409

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-19095iKP61197802-197907

ID=19.05

main47550-19096iKP61197907-198110

ID=19.05

main47550-19097iKP61..SED198110-198409

ID=19.05

sub47550-10042

main47550-19115iKP62197810-197907

ID=20.64

main47550-19116iKP62197907-198110

ID=20.64

main47550-19117iKP6#..4D198110-198409

ID=20.64

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90501-07006×2iKP6#197802-198409

sub90029-60014

47550KCYLINDER KIT, REAR WHEEL

main04474-10030×2iKP61197802-197907

main04474-10031×2iKP61197907-198110

main04474-10032×2iKP61..SED198110-198409

sub04474-63020

main04474-11030×2iKP62197810-197907

main04474-11031×2iKP62197907-198110

main04474-11032×2iKP6#..4D198110-198409

47550LCUP KIT, REAR WHEEL CYLINDER

main04906-10021iKP61..SED197802-198409

main04906-11031iKP6#..4D197810-198409

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-19095iKP61197802-197907

ID=19.05

main47550-19096iKP61197907-198110

ID=19.05

main47550-19097iKP61..SED198110-198409

ID=19.05

sub47550-10042

main47550-19115iKP62197810-197907

ID=20.64

main47550-19116iKP62197907-198110

ID=20.64

main47550-19117iKP6#..4D198110-198409

ID=20.64

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47611-10010iKP61197802-198012

sub47611-10H00

main47611-10011iKP61..SED198012-198409

main47611-12011iKP6#..4D197810-198409

47601BSHIM, REAR PARKING BRAKE SHOE LEVER

main90564-08150×4iKP6#197802-198409

main90564-08151×4iKP6#197802-198409

main90564-08152×4iKP6#197802-198409

main90564-08172×4iKP6#197802-198409

main90564-08173×4iKP6#197802-198409

main90564-08174×4iKP6#197802-198409

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013×4iKP6#197802-198409

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47612-10010iKP61197802-198012

sub47612-10H00

main47612-10011iKP61..SED198012-198409

main47612-12011iKP6#..4D197810-198409

47663LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)

main47643-10010iKP61197802-198012

sub47643-10H00

main47643-10011iKP61..SED198012-198409

main47643-12011iKP6#..4D197810-198409

47664LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)

main47644-10010iKP61197802-198012

sub47644-10H00

main47644-10011iKP61..SED198012-198409

main47644-12011iKP6#..4D197810-198409

9011906084

main90119-06084
