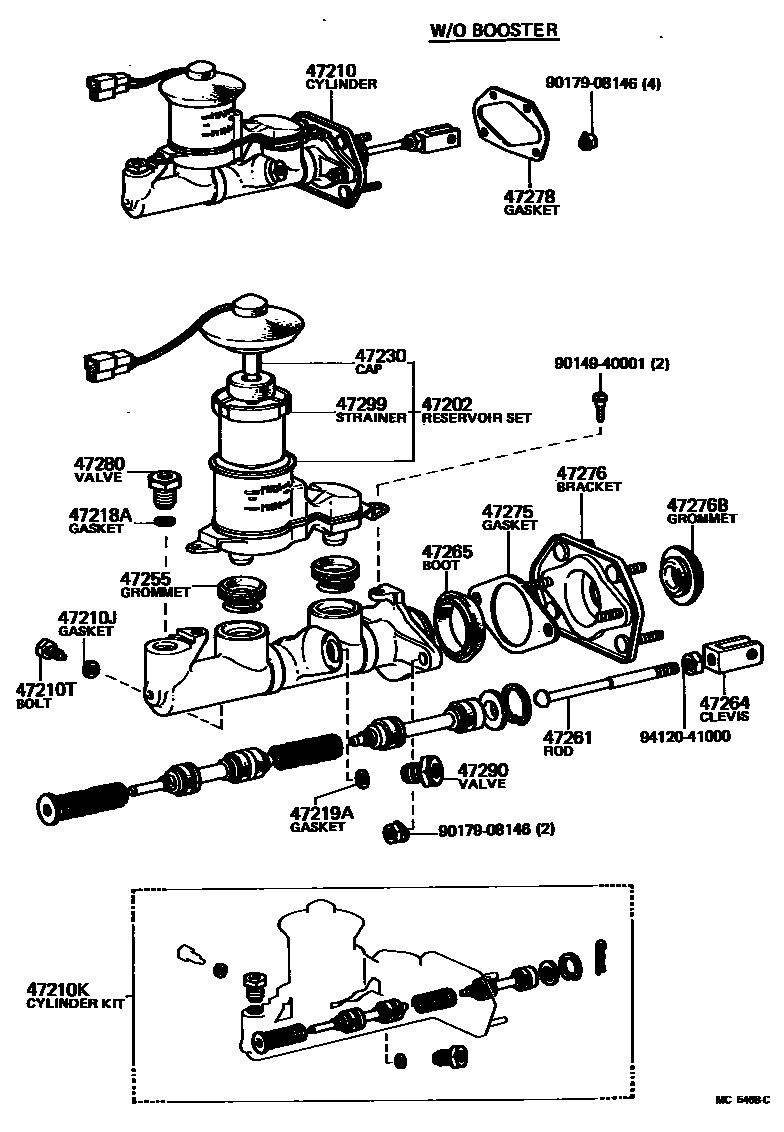

BRAKE MASTER CYLINDER

0001 1 0002 1

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-10010iKP6#197802-198208

main47202-10040iKP61198208-198409

47210CYLINDER ASSY, MASTER, W/O BOOSTER

main47200-10160iKP6#..4D197802-198409

ID=17.46,W/O BOOSTER

main47201-10040iKP61..SED..(DLX,S,SE,XL)197802-198409

ID=19.05,W/BOOSTER

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iKP6#197802-198409

47210KCYLINDER KIT, BRAKE MASTER

main04493-10060iKP6#..4D197802-198409

W/O BOOSTER

main04493-10070iKP6#197802-198005

W/BOOSTER

main04493-10071iKP61..SED..(DLX,S,SE,XL)198005-198409

W/BOOSTER

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iKP6#197802-198409

47218AGASKET(FOR FLUID OUTLET PLUG)

main90430-09253iKP6#197802-198409

47219AGASKET(FOR FLUID OUTLET PLUG REAR SIDE)

main90430-09253iKP6#197802-198409

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main84460-12021iKP6#197802-198208

main84460-32010iKP61198208-198409

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-10010iKP6#197802-198409

47261ROD, MASTER CYLINDER PUSH

main47261-10040iKP6#197802-198409

W/O BOOSTER

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-10080iKP6#197802-198409

47265BOOT, MASTER CYLINDER

main47265-20050iKP6#197802-198409

47275GASKET, BRAKE MASTER CYLINDER

main47275-14010iKP6#197802-198409

47276BRACKET, BRAKE MASTER CYLINDER

main47276-10010iKP6#197802-198409

W/O BOOSTER

47276BGROMMET(FOR BRAKE MASTER CYLINDER BRACKET)

main90480-22004iKP6#197802-198409

W/O BOOSTER

47278GASKET, BRAKE MASTER CYLINDER BRACKET

main47275-10010iKP6#197802-198409

W/O BOOSTER

47280VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK

main47280-30030iKP6#197802-198409

47290VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE)

main47280-30030iKP6#197802-198409

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-10010iKP6#197802-198409

9014940001

main90149-40001

9017908146

main90179-08146

9412041000

main94120-41000

22 parts on this diagram · 2 diagrams in section
