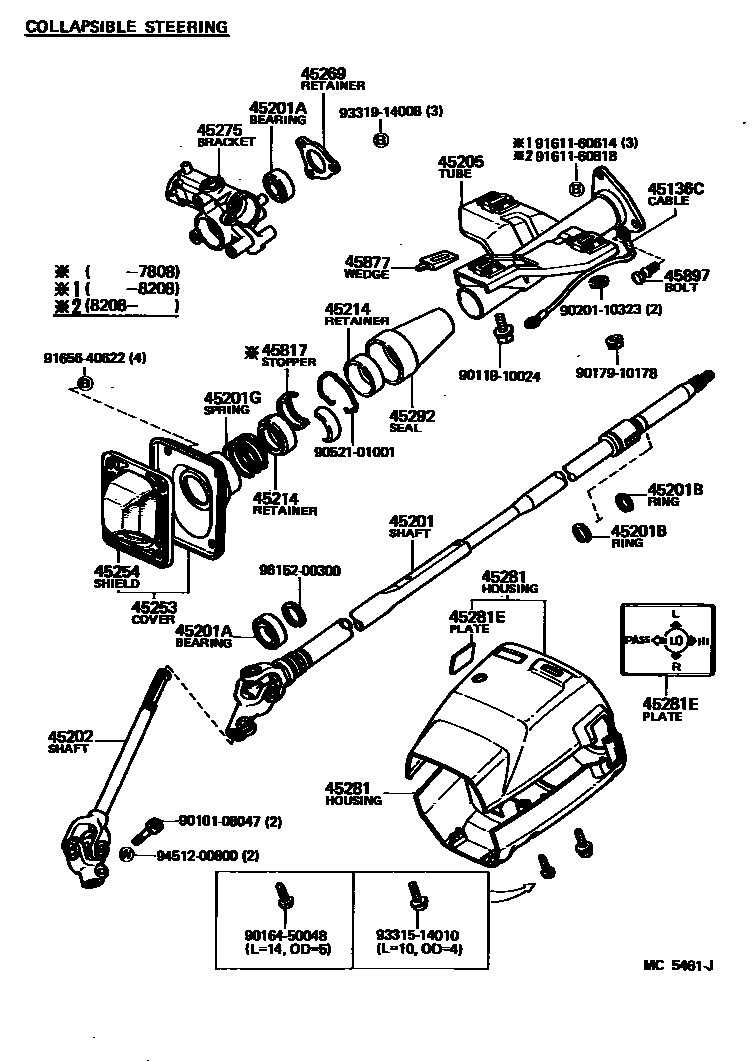

STEERING COLUMN & SHAFT
45201SHAFT SUB-ASSY, STEERING MAIN
COLLAPSIBLE
RIGID
RIGID
RIGID
45201ABEARING(FOR STEERING MAIN SHAFT)
UPR
LWR
LWR
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
45202SHAFT SUB-ASSY, STEERING INTERMEDIATE
45205TUBE SUB-ASSY, STEERING COLUMN
COLLAPSIBLE
RIGID
COLLAPSIBLE
RIGID
W/TILT STEERING
W/TILT STEERING
45214RETAINER, MAIN SHAFT SPRING
45253COVER, STEERING COLUMN HOLE
45269RETAINER, MAIN SHAFT BEARING
45275BRACKET, STEERING COLUMN, UPPER
45281HOUSING, STEERING COLUMN
UPR,BLACK,BLACK,TRIM2#
UPR,XL-L,DARK WINE,RED/MAROON,TRIM0#
UPR,BLUE,BLUE,TRIM2#,4#,8#
UPR,BEIGE,BEIGE,TRIM4#
UPR,LIGHT BROWN,BROWN,TRIM4#
UPR,BLACK,BLACK,TRIM1#
UPR,BROWN,BROWN,TRIM4#
W/TILT STRG,UPR,BLACK,BLACK,TRIM1#
W/TILT STRG,UPR,DARK WINE,RED/MAROON,TRIM0#; W/TILT STRG,UPR,XL-L,DARK WINE,RED/MAROON,TRIM0#
W/TILT STRG,UPR,BROWN,BROWN,TRIM4#
LWR,BLACK,BLACK,TRIM2#
LWR,XL-L,DARK WINE,RED/MAROON,TRIM0#
LWR,BLUE,BLUE,TRIM2#,4#,8#
LWR,BEIGE,BEIGE,TRIM4#
LWR,LIGHT BROWN,BROWN,TRIM4#
LWR,BLACK,BLACK,TRIM1#
LWR,BROWN,BROWN,TRIM4#
W/TILT STRG,LWR,BLACK,BLACK,TRIM1#
W/TILT STRG,LWR,DARK WINE,RED/MAROON,TRIM0#; W/TILT STRG,LWR,XL-L,DARK WINE,RED/MAROON,TRIM0#
W/TILT STRG,LWR,BROWN,BROWN,TRIM4#
45292SEAL, MAIN SHAFT LOWER DUST
45817STOPPER, STEERING SHAFT THRUST
45877WEDGE, CASTER(FOR STEERING COLUMN TUBE SETTING)
45897BOLT, STEERING LOCK SET
9010108047
main90101-08047
9011910024
main90119-10024
9016450048
main90164-50048
9017910178
main90179-10178
9020110323
main90201-10323
9052101001
main90521-01001
9161160614
main91611-60614
9161160818
main91611-60818
9165640622
main91656-40622
9331514010
main93315-14010
9331914008
main93319-14008
9451200800
main94512-00800
9615200300
main96152-00300
31 parts on this diagram · 5 diagrams in section
