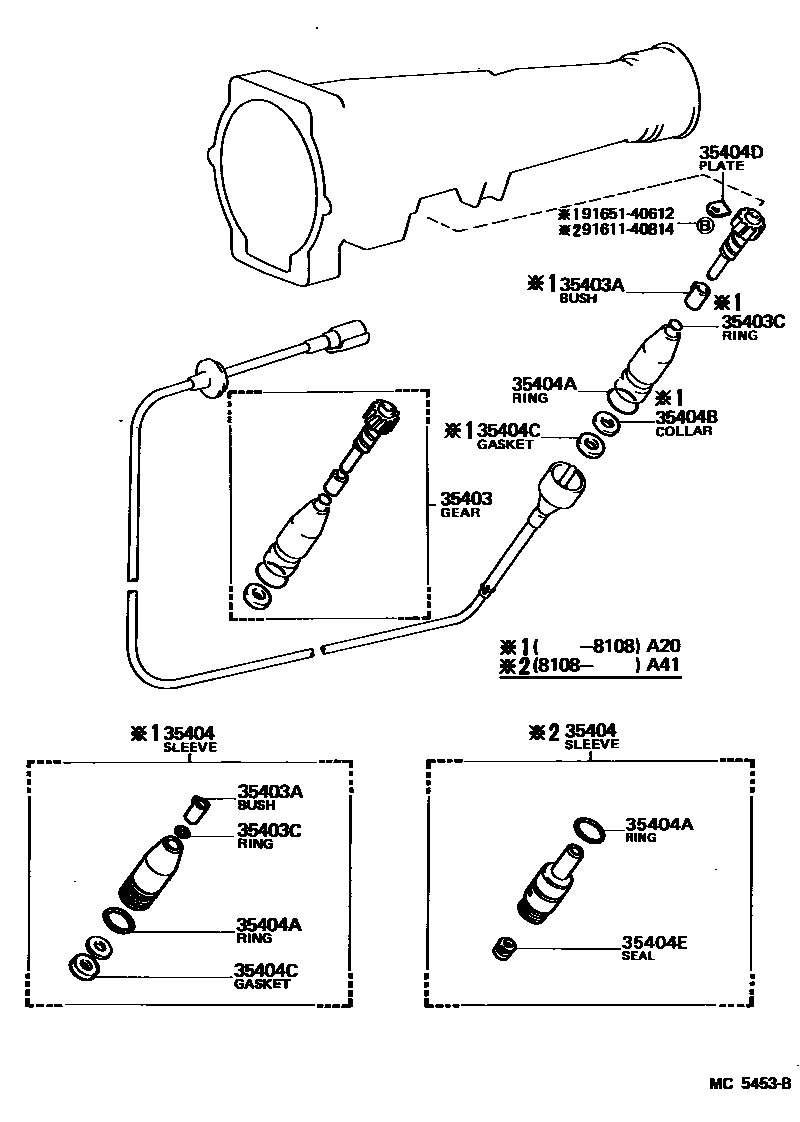

SPEEDOMETER DRIVEN GEAR (ATM)

35403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-19095iKP61..2FC197802-198005

N=20

main33403-29095iKP61..2FC..(DLX,XL)197802-198005

N=19

main33403-69065iKP61..3FC198108-198409

N=18

35403ABUSH (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90386-09055iKP61..2FC197802-198108

35403CRING, O (FOR AUTOMATIC TRANSMISSION SPEEDOMETER SHAFT)

main90301-09010iKP61..2FC197802-198108

35404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-19025iKP61..2FC197802-198108

main33404-30040iKP61..3FC198108-198409

35404ARING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iKP61..3FC198108-198409

main96710-02018iKP61..2FC197802-198108

35404BCOLLAR, SPEEDOMETER FLEXIBLE TUBE SHAFT GASKET (ATM)

main90201-07069iKP61..2FC197802-198108

35404CGASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (ATM)

main90303-06017iKP61..2FC197802-198108

35404DPLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-10010iKP61..2FC197802-198108

main33485-30020iKP61..3FC198108-198409

35404ESEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iKP61..3FC198108-198409

9161140814

main91611-40814

9165140612

main91651-40612

11 parts on this diagram · 1 diagram in section
