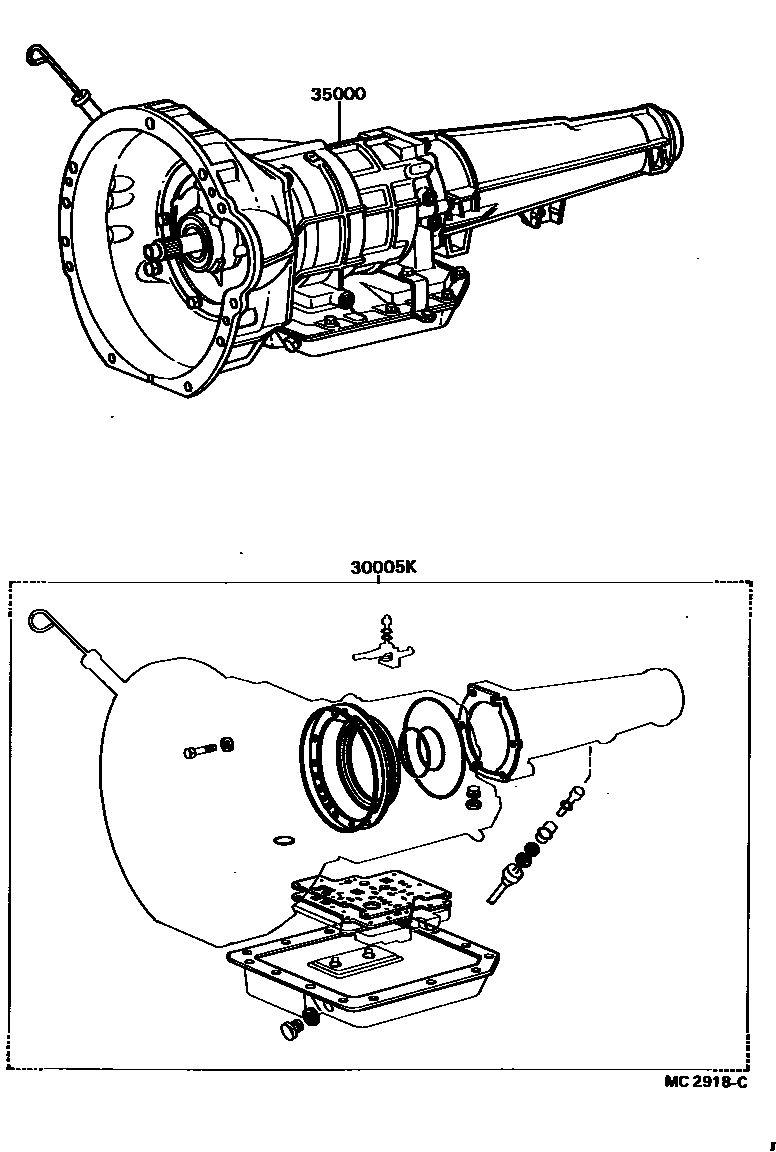

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1 0002 1

30005KGASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-12011iKP61..2FC197802-198108

main04351-22022iKP61..ATM198108-198108

main04351-22023iKP61..3FC198108-198409

35000TRANSMISSION ASSY, AUTOMATIC

main35000-10121iKP61..2FC..(DLX,XL)197802-198005

SMG R=19:6

main35000-10141iKP61..3FC198108-198208

SMG R=18:6

main35000-10150iKP61..3FC198208-198409

SMG R=18:6

main35000-12490iKP61..2FC197802-198005

SMG R=20:6

2 parts on this diagram · 2 diagrams in section
