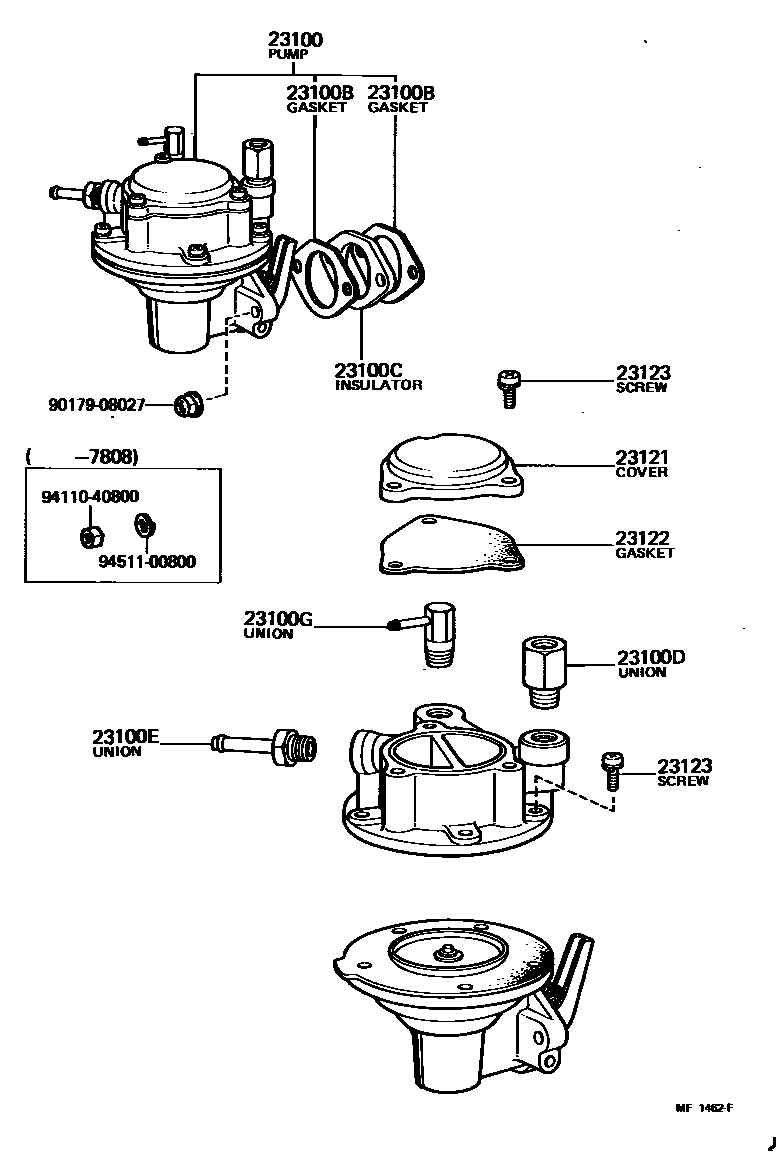

FUEL PUMP & PIPE

0001 1 0003 1

23100PUMP ASSY, FUEL

main23100-19035i4KU..KP61197802-197903

main23100-19085i4KU..KP61197903-198108

main23100-19086i4K#..KP61198108-198202

main23100-19087i4KJ,4KU..KP61198202-198305

main23100-19125i3KHJ..KP62197903-198201

main23100-19205i4KJ,4KU..KP61198305-198409

main23100-29085i3KHJ..KP62197810-197903

23100BGASKET, FUEL PUMP

main90923-05006×2i3KHJ,4KU,4KJ..KP6#197802-198409

23100CINSULATOR, FUEL PUMP

main90923-06003i3KHJ,4KU,4KJ..KP6#197802-198409

23100DUNION, NIPPLE(FOR FUEL OUTLET)

main23116-24010i3KHJ,4KU..KP6#197802-197903

23100EUNION, NIPPLE(FOR FUEL INLET)

main90404-51244i3KHJ,4KU..KP6#197802-197903

23100GUNION, NIPPLE(FOR FUEL RETURN HOSE)

main23116-13010i4KU..KP61197802-197903

23121COVER, FUEL PUMP

main23121-24010i3KHJ..KP62197810-197903

main23121-24040i4KU..KP61197802-197903

23122GASKET, FUEL PUMP COVER

main23122-24010i3KHJ..KP62197810-197903

main23122-24040i4KU..KP61197802-197903

23123SCREW, COVER SET, NO.1

main23123-33011×8i3KHJ..KP62197810-197903

main93319-15014×8i4KU..KP61197802-197903

9017908027

main90179-08027

9411040800

main94110-40800

9451100800

main94511-00800

12 parts on this diagram · 2 diagrams in section
