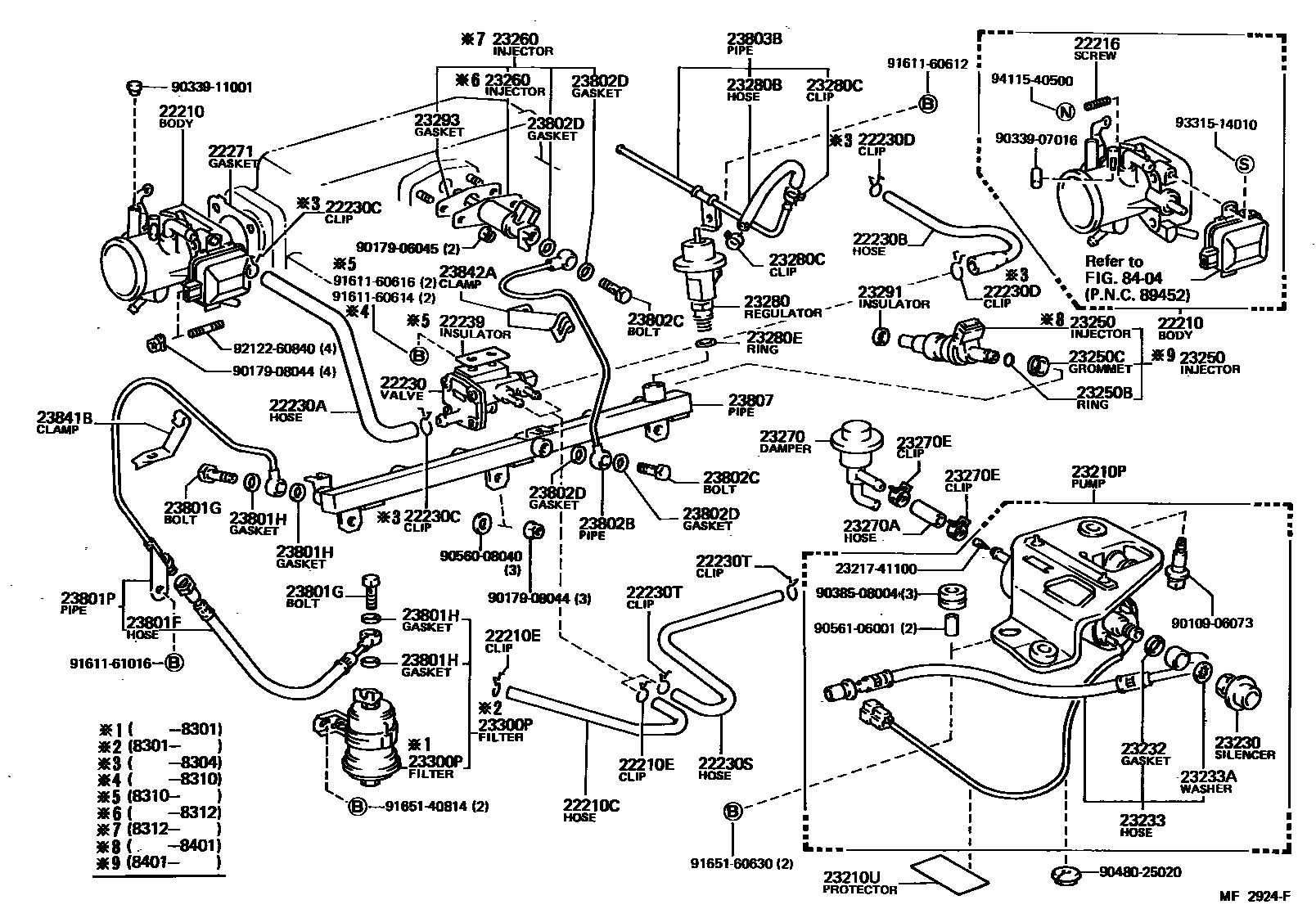

22210BODY ASSY, THROTTLE

main22210-13020i198208-198409

main22210-13030i198208-198409

22210CHOSE, WATER BY-PASS, NO.1

main16264-13010i198208-198409

22210ECLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)

main90467-13001×2i198208-198409

22216SCREW, DASH POT ADJUSTING

main22216-74010i198208-198409

22230VALVE ASSY, AUXILIARY AIR

main22230-13010i198208-198409

22230AHOSE, AUXILIARY AIR VALVE, NO.1

main22233-13010i198208-198409

22230BHOSE, AUXILIARY AIR VALVE, NO.2

main22234-13010i198208-198409

22230CCLIP, AUXILIARY AIR VALVE HOSE, NO.1

main90467-17126i198208-198304

THROTTLE BODY SIDE

main90467-18003i198208-198304

AIR VALVE SIDE

22230DCLIP, AUXILIARY AIR VALVE HOSE, NO.2

main90467-15120i198208-198304

SURGE TANK SIDE

main90467-18003i198208-198304

AIR VALVE SIDE

22230SHOSE, WATER BY-PASS(FOR AUXILIARY AIR VALVE)

main16267-13010i198208-198409

22230TCLAMP OR CLIP, HOSE(FOR WATER BY-PASS)

main90467-13001×2i198208-198409

22239INSULATOR, AUXILIARY AIR VALVE HEAT

main22239-13010i198310-198409

22271GASKET, THROTTLE BODY

main22271-13010i198208-198409

23210PPUMP ASSY, FUEL W/MOTOR & BRACKET

main23210-13010i198208-198409

23210UPROTECTOR,WIRING HARNESS

main82817-22170i198208-198409

23230SILENCER ASSY

main23230-26080i198208-198409

23232GASKET(FOR FUEL PUMP HOSE)

main23232-41081i198208-198409

23233HOSE, FUEL PUMP

main90999-99095i198208-198409

23233AWASHER(FOR FUEL PUMP HOSE)

main90099-01496i198208-198409

23250INJECTOR ASSY, FUEL

main23209-13010×4i198401-198409

main23250-13010×4i198208-198401

23250BRING, O(FOR FUEL INJECTOR)

main90301-07001×4i198208-198409

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005×4i198208-198409

23260INJECTOR ASSY, COLD START FUEL

main23260-13010i198208-198312

main23260-19015i198312-198409

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-13010i198208-198409

23270AHOSE(FOR PULSATION DAMPER)

main95332-12005i198208-198409

23270ECLIP(FOR PULSATION DAMPER HOSE)

main90467-18001×2i198208-198409

23280REGULATOR ASSY, FUEL PRESSURE

main23280-13010i198208-198409

23280BHOSE, FUEL PRESSURE REGULATOR RETURN

main95332-06020i198208-198409

23280CCLAMP OR CLIP(FOR FUEL PRESSURE REGULATOR RETURN HOSE)

main90467-11009×2i198208-198409

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-09002i198208-198409

23291INSULATOR, INJECTOR VIBRATION

main23291-41010×4i198208-198409

23293GASKET, COLD START INJECTOR

main23293-70010i198208-198409

23300PFILTER, FUEL(FOR EFI)

main23300-13010i198208-198301

main23300-19035i198301-198409

23801FHOSE, FUEL, NO.1

main90923-01270i198208-198409

23801GBOLT, UNION(FOR FUEL PIPE)

main90401-12097×2i198208-198409

23801HGASKET(FOR FUEL PIPE)

main90430-12005×4i198208-198409

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-13080i198208-198409

23802BPIPE SUB-ASSY, FUEL, NO.2

main23812-13010i198208-198409

23802CBOLT, UNION(FOR FUEL PIPE NO.2)

main90401-10008×2i198208-198409

23802DGASKET(FOR FUEL PIPE NO.2)

main90430-10204×4i198208-198409

23803BPIPE SUB-ASSY, FUEL, NO.3

main23803-13010i198208-198409

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-13011i198208-198409

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-13010i198208-198409

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-13010i198208-198409

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

2321741100FILTER, FUEL PUMP

main23217-41100

9010906073

main90109-06073

9017906045

main90179-06045

9017908044

main90179-08044

9033907016

main90339-07016

9033911001

main90339-11001

9038508004

main90385-08004

9048025020

main90480-25020

9056008040

main90560-08040

9056106001

main90561-06001

9161160612

main91611-60612

9161160614

main91611-60614

9161160616

main91611-60616

9161161016

main91611-61016

9165140814

main91651-40814

9165160630

main91651-60630

9212260840

main92122-60840

9331514010

main93315-14010

9411540500

main94115-40500
