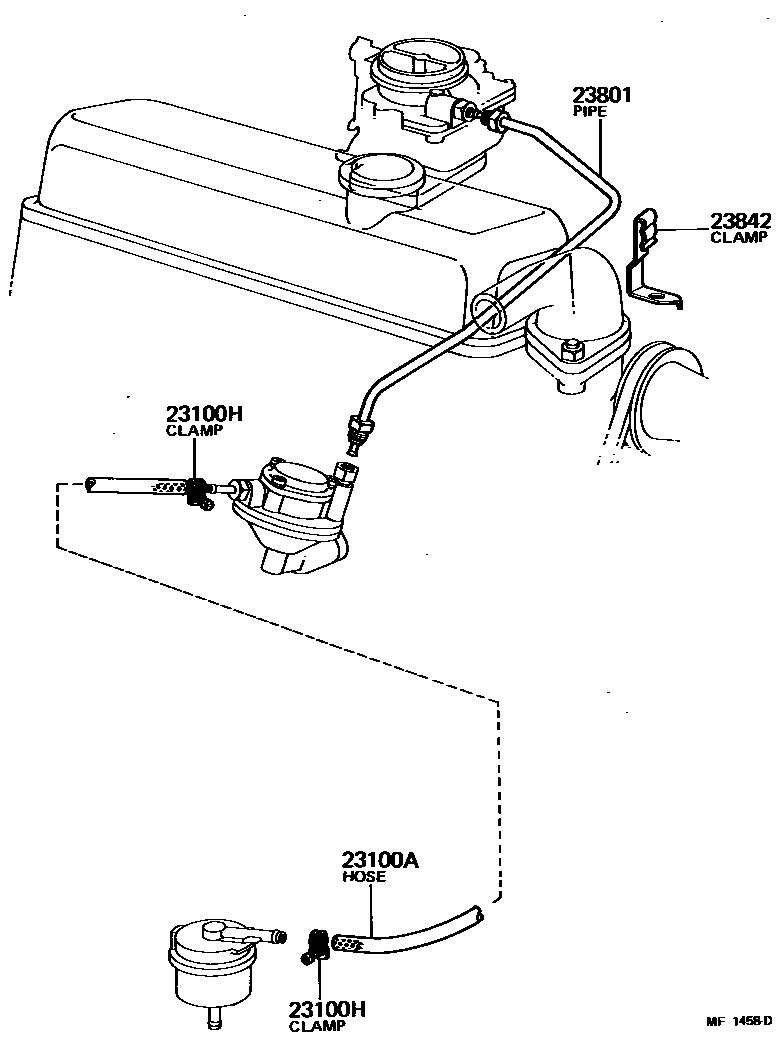

FUEL PIPE & CLAMP

0001 1 0003 1

23100AHOSE, FUEL

main95332-06032i3KHJ..KP62197810-197904

L=320

main95332-06034i4KU..KP61197903-197904

L=340

main95332-06040i4KJ,4KU..KP61197904-198409

*H,L=340

23100HCLIP(FOR FUEL HOSE)

main96132-30600×2i3KHJ,4KU,4KJ..KP6#197802-198409

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main23801-13010i4KU..KP61197802-197903

main23801-13030i4K#..KP61197903-198202

main23801-13050i4KJ,4KU..KP61198202-198308

main23801-24011i3KHJ..KP62197810-197903

main23801-24060i3KHJ..KP62197903-198201

main23801-24061i4KJ,4KU..KP61198308-198409

23842CLAMP, FUEL PIPE(HOSE), NO.2

main90461-08528i4KJ,4KU..KP61198108-198409

main90461-08532i3KHJ,4KU..KP6#197802-198108

4 parts on this diagram · 2 diagrams in section
