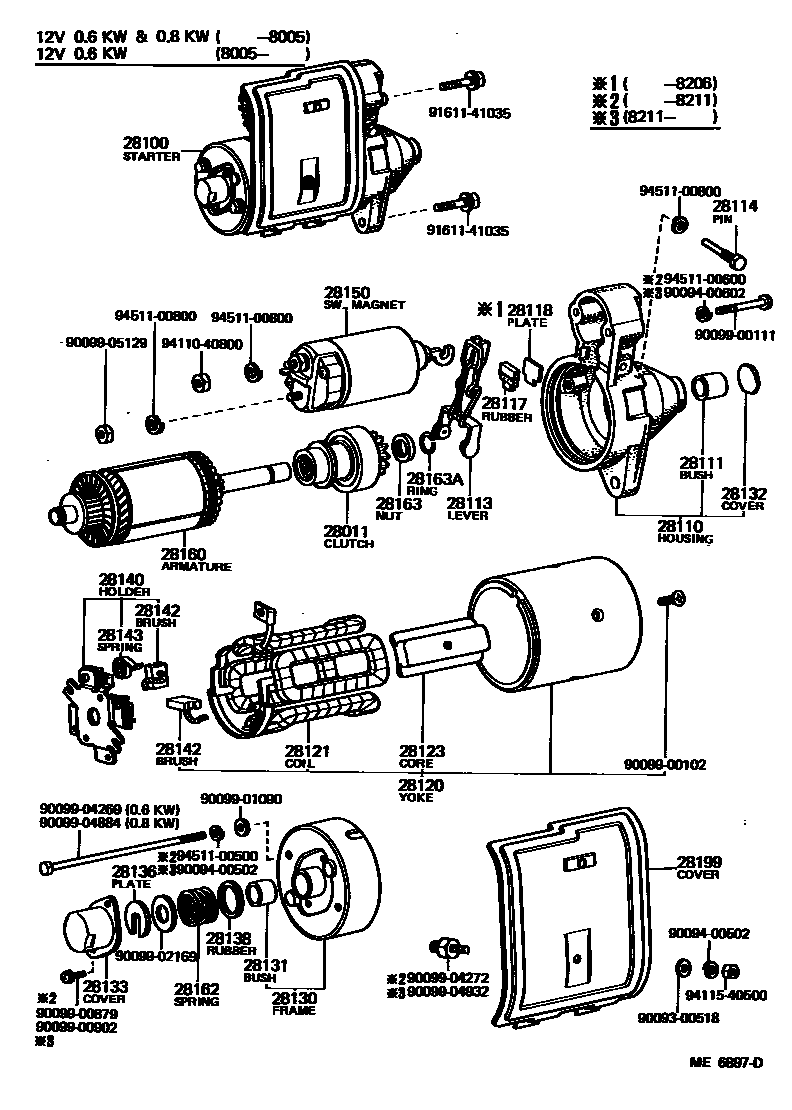

STARTER

0001 1 0002 1 0004 1

28011CLUTCH SUB-ASSY, STARTER

main28011-13050i4KU..KP61..5F..DXA198108-198409

12V 0.8KW

main28011-15010i3KHJ..KP62198005-198201

12V 0.8KW

main28011-22020i3KHJ,4KU..KP6#197802-198005

12V 0.6KW,0.8KW

main28011-22022i4KU..KP61..4F..DXA;4KJ,4KU..KP61..DLX,S,SE,STD,XL198206-198409

12V 0.6KW

main28011-26042i4KU..KP61..4F..DXA;4K#..KP61..DLX,S,SE,SI,STD,XL198005-198409

12V 1.0KW

28100STARTER ASSY

main28100-13010i4KU..KP61..4F..DXA;4K#..KP61..DLX,S,SE,SI,STD,XL198005-198409

main28100-13020i4KEU..KP61198208-198301

main28100-13030i3KHJ..KP62198005-198201

12V 0.8KW

main28100-13050i4KU..KP61..5F..DXA198108-198409

12V 0.8KW

main28100-24031i4KU..KP61..4F..DXA;3KHJ,4KU,4KJ..KP6#..DLX,S,SE,STD,XL197802-198409

sub28100-13060

main28100-24060i3KHJ,4KU..KP6#197802-198005

12V 0.8KW

28110HOUSING ASSY, STARTER DRIVE

main28110-13010i4KU..KP61..4F..DXA;4K#..KP61..DLX,S,SE,SI,STD,XL198005-198409

12V 1.0KW

main28110-13020i3KHJ..KP62198005-198201

12V 0.8KW

main28110-13050i4KU..KP61..5F..DXA198108-198409

12V 0.8KW

main28110-24010i3KHJ,4KU..KP6#197802-198005

12V 0.6KW,0.8KW

28111BUSH(FOR STARTER HOUSING)

main28111-51011i3KHJ,4KU..KP6#197802-198005

12V 0.6KW,0.8KW

28113LEVER, STARTER PINION DRIVE

main28113-15011i3KHJ..KP62198005-198201

12V 0.8KW

main28113-41011i3KHJ,4KU..KP6#197802-198005

12V 0.6KW,0.8KW

28114PIN, STARTER DRIVE LEVER SET

main28114-25010i3KHJ,4KU..KP6#197802-198005

12V 0.6KW,0.8KW

28117RUBBER(FOR STARTER YOKE)

main28117-15050i4KU..KP61..4F..DXA;4KJ,4KU..KP61..DLX,S,SE,STD,XL198206-198409

12V 0.6KW

main28117-41013i4KU..KP61..4F..DXA;3KHJ,4K#..KP6#..DLX,S,SE,STD,XL198005-198206

12V 0.6KW

28118PLATE(FOR STARTER YOKE)

main28118-41013i3KHJ,4KU..KP6#197802-198005

12V 0.6KW,0.8KW

28120YOKE ASSY, STARTER

main28120-13050i4KU..KP61..5F..DXA198108-198409

12V 0.8KW

main28120-15010i3KHJ..KP62198005-198201

12V 0.8KW

main28120-24020i3KHJ,4KU..KP6#197802-198005

12V 0.8KW

main28120-24030i4KU..KP61..4F..DXA;3KHJ,4KU,4KJ..KP6#..DLX,S,SE,STD,XL197802-198409

12V 0.6KW

main28120-26070i4KU..KP61..4F..DXA;4K#..KP61..DLX,S,SE,STD,XL198005-198203

12V 1.0KW

main28120-26071i4KU..KP61..4F..DXA;4K#..KP61..DLX,S,SE,SI,STD,XL198203-198409

12V 1.0KW

main28120-26140i4KEU..KP61198208-198301

12V 0.8KW

28121COIL, STARTER FIELD

main28121-22011i4KU..KP61..4F..DXA;3KHJ,4K#..KP6#..DLX,S,SE,SI,STD,XL197802-198409

12V 0.6KW

sub28121-22012

main28121-36040i3KHJ,4KU..KP6#197802-198005

12V 0.8KW

28123CORE, STARTER POLE

main28123-10011×4i4KU..KP61..4F..DXA;3KHJ,4K#..KP6#..DLX,S,SE,SI,STD,XL197802-198409

12V 0.6KW

main28123-40012×4i3KHJ,4KU..KP6#197802-198005

12V 0.8KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-13010i4KU..KP61..4F..DXA;4K#..KP61..DLX,S,SE,SI,STD,XL198005-198409

12V 1.0KW

main28130-13020i3KHJ..KP62198005-198201

12V 0.8KW

main28130-13050i4KU..KP61..5F..DXA198108-198409

12V 0.8KW

main28130-21011i4KU..KP61..4F..DXA;3KHJ,4KU,4KJ..KP6#..DLX,S,SE,STD,XL198005-198409

12V 0.6KW

28131BUSH, COMMUTATOR END FRAME

main28131-20010i3KHJ,4KU..KP6#197802-198005

12V 0.6KW,0.8KW,STD

main90099-10039i3KHJ,4KU..KP6#197802-198005

12V 0.6KW,0.8KW,U/S 0.3

main90099-10040i3KHJ,4KU..KP6#197802-198005

12V 0.6KW,0.8KW,U/S 0.5

main90099-10134i4KEU..KP61198208-198301

12V 0.8KW

28132COVER, STARTER BEARING(FOR DRIVE HOUSING)

main28166-24030i4KU..KP61..4F..DXA;4KJ,4KU..KP61..DLX,S,SE,STD,XL198206-198409

12V 0.6KW

main28166-41011i4KU..KP61..4F..DXA;3KHJ,4K#..KP6#..DLX,S,SE,STD,XL198005-198206

12V 0.6KW

28133COVER, BEARING(FOR END FRAME)

main28132-15010i3KHJ..KP62198005-198201

12V 0.8KW

sub28132-15011

main28132-41011i3KHJ,4KU..KP6#197802-198005

12V 0.6KW,0.8KW

28136PLATE, STARTER LOCK

main28136-15010i4KEU..KP61198208-198301

12V 0.8KW

main28136-41011i4KU..KP61..4F..DXA;3KHJ,4KU,4KJ..KP6#..DLX,S,SE,STD,XL198005-198409

12V 0.6KW

28138RUBBER(FOR STARTER BEARING COVER)

main28138-15010i4KEU..KP61198208-198301

12V 0.8KW

main28138-41011i3KHJ,4KU..KP6#197802-198005

12V 0.6KW,0.8KW

28140HOLDER ASSY, STARTER BRUSH

main28140-13050i4KU..KP61..5F..DXA198108-198409

12V 0.8KW

main28140-15010i3KHJ..KP62198005-198201

12V 0.8KW

main28140-22011i4KU..KP61..4F..DXA;3KHJ,4KU,4KJ..KP6#..DLX,S,SE,STD,XL197802-198409

12V 0.6KW

main28140-26070i4KU..KP61..4F..DXA;4K#..KP61..DLX,S,SE,SI,STD,XL198005-198409

12V 1.0KW

main28140-41012i3KHJ,4KU..KP6#197802-198005

12V 0.8KW

sub28140-41013

28142BRUSH, STARTER

main28142-10011×4i4KU..KP61..4F..DXA;3KHJ,4K#..KP6#..DLX,S,SE,SI,STD,XL197802-198409

12V 0.6KW

main28142-21010×4i3KHJ,4KU..KP6#197802-198005

12V 0.8KW

28143SPRING, STARTER BRUSH

main28143-40010×4i4KU..KP61..4F..DXA;3KHJ,4K#..KP6#..DLX,S,SE,SI,STD,XL198005-198409

12V 0.6KW

sub28143-40040

main90099-17112×4i4KU..KP61..4F..DXA;4K#..KP61..DLX,S,SE,SI,STD,XL198005-198409

12V 1.0KW

main90099-17115×4i4KU..KP61..5F..DXA198108-198409

12V 0.8KW

28150SWITCH ASSY, MAGNET STARTER

main28150-13010i4KU..KP61198005-198107

12V 1.0KW

main28150-13011i4KU..KP61..4F..DXA;4K#..KP61..DLX,S,SE,SI,STD,XL198107-198409

12V 1.0KW

main28150-13050i4KU..KP61..5F..DXA198108-198409

12V 0.8KW

main28150-15012i4KEU..KP61198208-198301

12V 0.8KW

sub28150-37010

main28150-24060i4KU..KP61..4F..DXA;3KHJ,4KU,4KJ..KP6#..DLX,S,SE,STD,XL197802-198409

12V 0.6KW

main28150-24061i3KHJ,4KU..KP6#197802-198005

12V 0.8KW

main28150-26160i3KHJ..KP62198005-198201

12V 0.8KW

28160ARMATURE ASSY, STARTER

main28160-13050i4KU..KP61..5F..DXA198108-198409

12V 0.8KW

sub28160-13051

main28160-15010i3KHJ..KP62198005-198201

12V 0.8KW

main28160-22011i4KU..KP61..4F..DXA;3KHJ,4KU,4KJ..KP6#..DLX,S,SE,STD,XL197802-198409

12V 0.6KW

main28160-22021i3KHJ,4KU..KP6#197802-198005

12V 0.8KW

main28160-26070i4KU..KP61..4F..DXA;4K#..KP61..DLX,S,SE,SI,STD,XL198005-198409

12V 1.0KW

sub28160-26071

28162SPRING, STARTER BRAKE

main28162-15010i3KHJ..KP62198005-198201

12V 0.8KW

main28162-41011i3KHJ,4KU..KP6#197802-198005

12V 0.6KW,0.8KW

28163NUT OR COLLAR, PINION STOP, STARTER

main28163-40011i4KU..KP61..4F..DXA;3KHJ,4K#..KP6#..DLX,S,SE,SI,STD,XL197802-198409

12V 0.6KW,0.8KW

28163ARING, SNAP(FOR STARTER PINION STOP NUT)

main90099-07047i4KU..KP61..4F..DXA;3KHJ,4K#..KP6#..DLX,S,SE,SI,STD,XL197802-198409

12V 0.6KW,0.8KW

28199COVER, STARTER

main28199-13010i4KU..KP61198011-198107

12V 1.0KW

main28199-13011i4K#..KP61198107-198409

12V 0.8KW,1.0KW

main28199-24030i3KHJ,4KU..KP6#197802-198005

12V 0.6KW,0.8KW

main28199-26070i4KU..KP61198005-198011

12V 1.0KW

main28199-26131i4KEU..KP61198208-198301

12V 0.8KW

sub28199-15110

9009300518

main90093-00518

9009400502

main90094-00502

9009400602

main90094-00602

9009900102

main90099-00102

9009900111

main90099-00111

9009900879

main90099-00879

9009900902

main90099-00902

9009901090

main90099-01090

9009902169

main90099-02169

9009904269

main90099-04269

9009904272

main90099-04272

9009904884

main90099-04884

9009904932

main90099-04932

9009905129

main90099-05129

9161141035

main91611-41035

9411040800

main94110-40800

9411540500

main94115-40500

9451100500

main94511-00500

9451100600

main94511-00600

9451100800

main94511-00800

46 parts on this diagram · 3 diagrams in section
