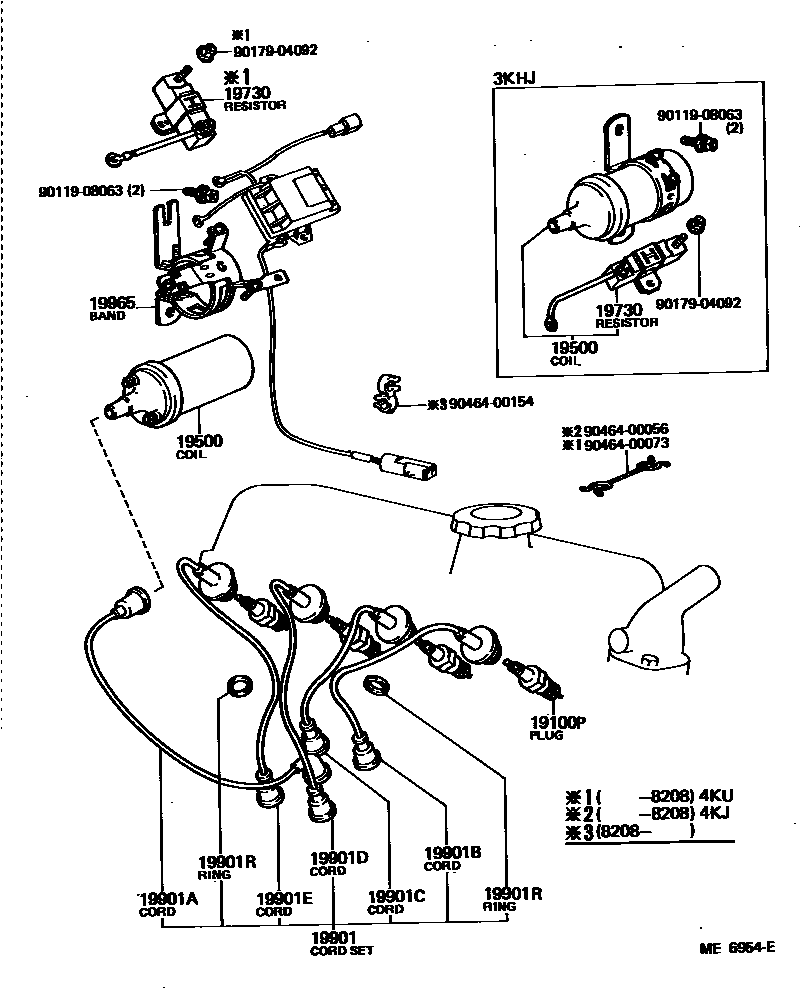

IGNITION COIL & SPARK PLUG / GLOW PLUG

19100PPLUG, SPARK

main90919-01059×4i3KHJ..KP62197810-198201

main90919-01085×4i4KU..KP61197802-198108

main90919-01117×4i4K#..KP61198108-198409

main90919-01118×4i4K#..KP61198108-198409

19500COIL ASSY, IGNITION

main90919-02083i4KEU..KP61..XL198208-198409

main90919-02102i3KHJ..KP62197810-197908

main90919-02123i3KHJ..KP62197908-198201

main90919-02138i4KJ..KP61198201-198208

main90919-02143i4KJ,4KU..KP61198208-198409

main90919-02144i4KEU..KP61..SE,SI198208-198409

19730RESISTOR, IGNITION COIL

main90919-04004i3KHJ..KP62197810-197908

main90919-04017i4KU..KP61197802-198005

main90919-04030i4KU..KP61198005-198108

main90919-04032i3KHJ..KP62197908-198201

19901CORD SET, COIL & SPARK, W/RESISTIVE

main90919-21174i3KHJ,4K#..KP6#197802-198208

main90919-21307i4K#..KP61198208-198405

YAZAKI

main90919-21308i4K#..KP61198208-198405

SUMITOMO

19901ACORD, COIL RESISTIVE

main99252-11030i3KHJ,4K#..KP6#197802-198208

main99252-11032i4K#..KP61198208-198409

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-12084i3KHJ,4K#..KP6#197802-198409

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-12083i3KHJ,4K#..KP6#197802-198409

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-12083i3KHJ,4K#..KP6#197802-198409

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90919-12084i3KHJ,4K#..KP6#197802-198409

19901RRING, RUBBER SPARK PLUG RESISTIVE CORD

main90202-11067×2i3KHJ,4K#..KP6#197802-198409

19965BAND, IGNITION COIL, NO.1

main90919-03062i4KU..KP61197802-198005

main90919-03080i4KU..KP61198005-198108

main90919-03090i4KU..KP61..5F..DXA198108-198208

main90919-03091i4KEU..KP61..XL198208-198409

9011908063

main90119-08063

9017904092

main90179-04092

9046400056

main90464-00056

9046400073

main90464-00073

9046400154

main90464-00154

16 parts on this diagram · 1 diagram in section
