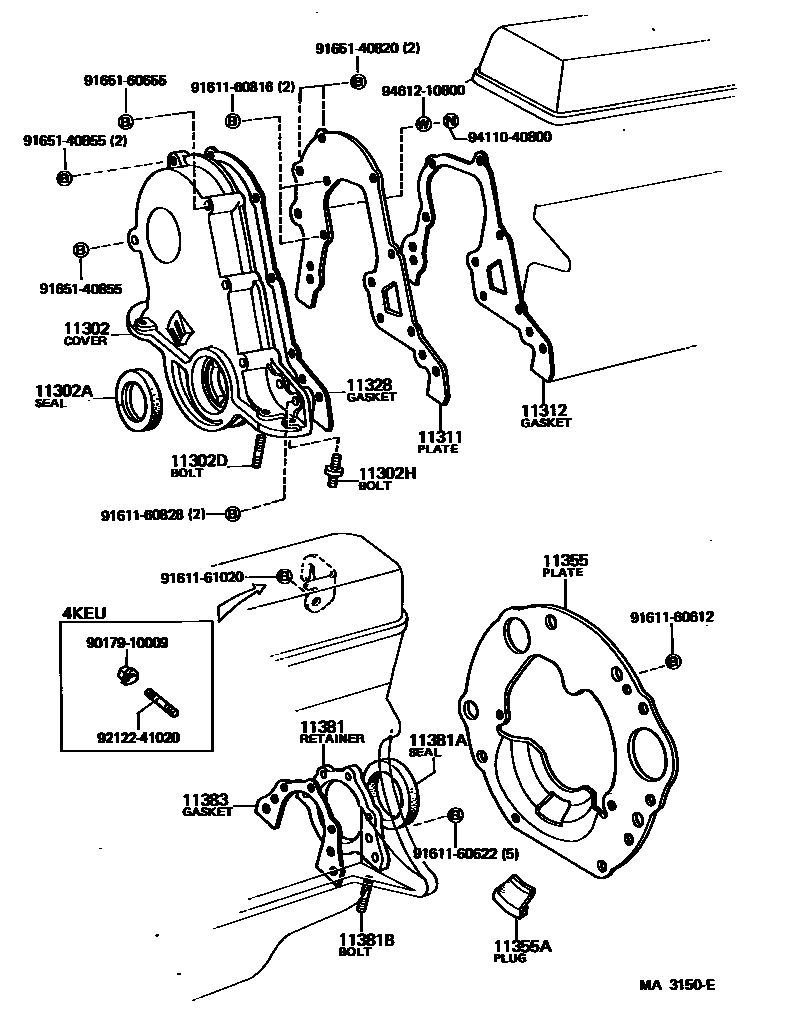

TIMING GEAR COVER & REAR END PLATE

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11321-13010i3KHJ,4KU..KP6#197802-197903

main11321-13030i3KHJ,4KU..KP6#197903-198108

main11321-13040i3KHJ,4K#..KP6#198108-198303

main11321-13041i4K#..KP61198303-198409

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-38013i3KHJ,4K#..KP6#197802-198205

HTC 38.5 58 11

main90311-38022i4K#..KP61198205-198409

HTC 38.5 58 8.5

11302DBOLT, STUD(FOR TIMING GEAR COVER)

main90116-06012×2i3KHJ,4K#..KP6#197807-198409

L=26,S=12&12

main92132-60614×2i4KU..KP61197802-197807

L=26,S=12&12

11302HBOLT, STUD(FOR TIMING GEAR COVER)

main90116-06006×2i3KHJ,4K#..KP6#197802-198409

L=26.4,S=12&12

11311PLATE, FRONT END

main11311-13010i3KHJ,4K#..KP6#197802-198409

11312GASKET, FRONT END PLATE

main11312-13010i3KHJ,4KU..KP6#197802-198105

main11312-13011i3KHJ,4K#..KP6#198105-198409

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-13010i3KHJ,4KU..KP6#197802-198105

main11328-13011i3KHJ,4K#..KP6#198105-198409

11355PLATE, REAR END

main11355-13010i3KHJ,4KU..KP6#..MTM197802-198102

main11355-13011i3KHJ,4K#..KP6#..MTM198102-198409

main11355-24041i4KU..KP61..2FC197802-198102

main11355-24042i4KU..KP61..ATM198102-198409

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01215i4KU..KP61..2FC197802-198102

main90950-01343i4KU..KP61..ATM198102-198409

11381RETAINER, ENGINE REAR OIL SEAL

main11381-13010i3KHJ,4K#..KP6#197802-198303

main11381-13011i4K#..KP61198303-198409

11381ASEAL, ENGINE REAR OIL

main90311-70001i3KHJ,4K#..KP6#197802-198205

HTC 70 92 12

main90311-70004i4K#..KP61198205-198409

HTC 70 92 8.5

11381BBOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER)

main90116-06035×2i3KHJ,4K#..KP6#197802-198409

L=23,S=12&9

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-13010i3KHJ,4K#..KP6#197802-198409

9017910009

main90179-10009

9161160612

main91611-60612

9161160622

main91611-60622

9161160816

main91611-60816

9161160828

main91611-60828

9161161020

main91611-61020

9165140820

main91651-40820

9165140855

main91651-40855

9165160655

main91651-60655

9212241020

main92122-41020

9411040800

main94110-40800

9461210800

main94612-10800

25 parts on this diagram · 1 diagram in section
