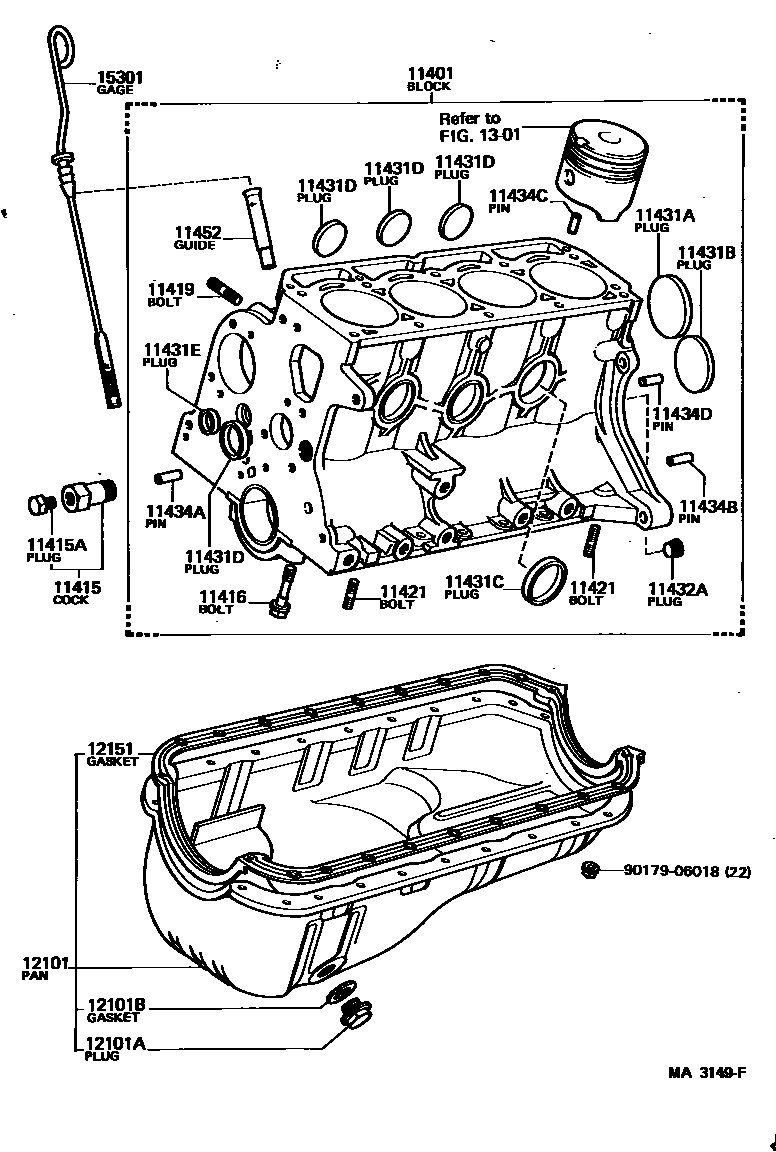

CYLINDER BLOCK
11401BLOCK SUB-ASSY, CYLINDER
11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
*10-1.25PX55-18
11419BOLT, STUD(FOR FUEL PUMP)
L=37,S=10&21
L=42,S=10&21
11421BOLT, STUD(FOR OIL PAN)
L=26.4,S=12&12
L=26,S=12&12
L=26,S=12&12
11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
OD=46.5
11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
OD=45
11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
OD=35
11431DPLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
OD=25
11431EPLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)
OD=18
11432APLUG, W/HEAD TAPER SCREW, NO.1
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
11452GUIDE, OIL LEVEL GAGE
12101PAN SUB-ASSY, OIL
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
12151GASKET, OIL PAN
1301CRANKSHAFT & PISTON
15301GAGE SUB-ASSY, OIL LEVEL
9017906018
main90179-06018
24 parts on this diagram · 2 diagrams in section
