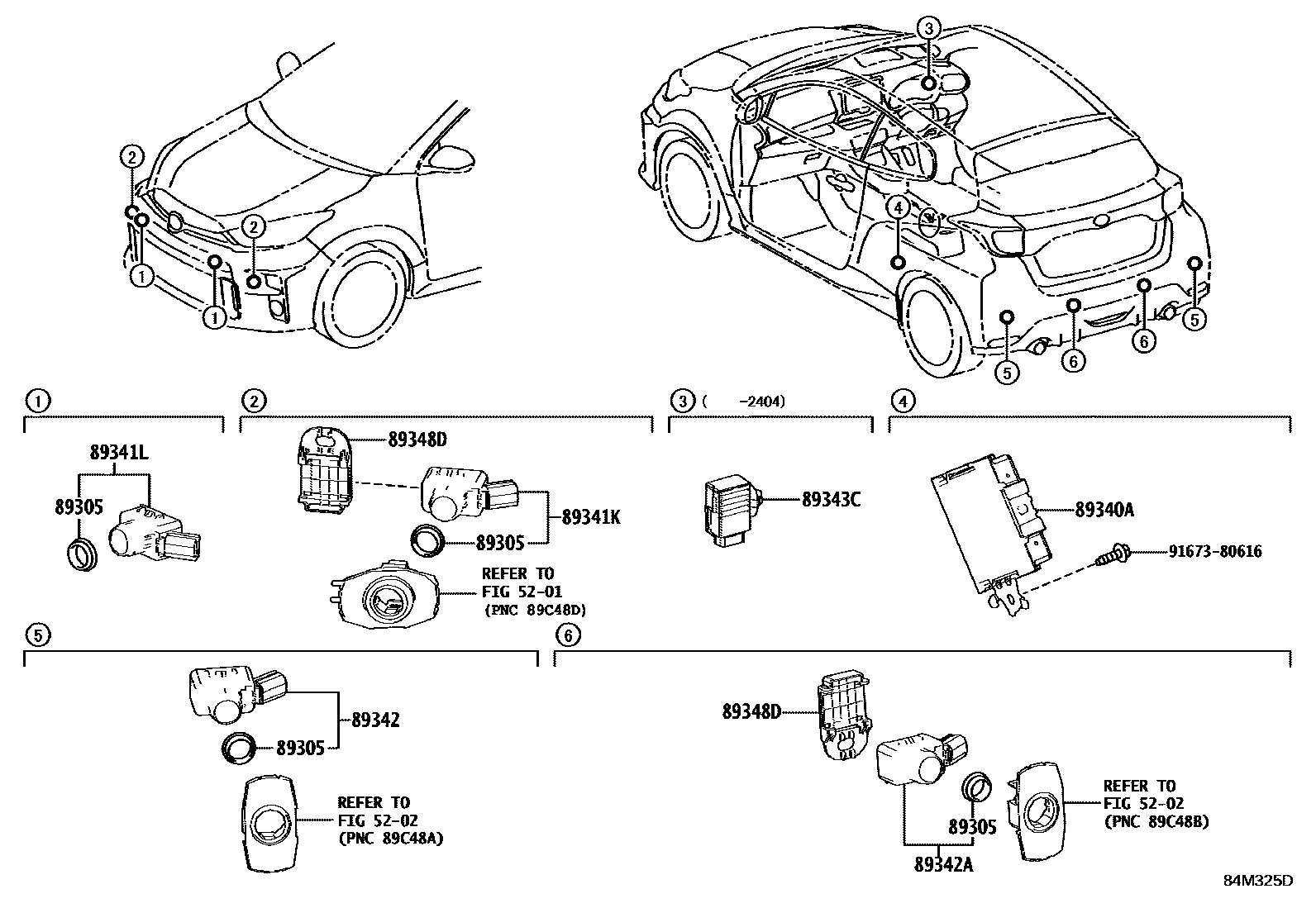

CLEARANCE & BACK SONAR

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

89305CUSHION SET, ULTRASONIC SENSOR

main89305-52010iGXPA16202404

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-52330iGXPA16..RC202404

main89340-52410iGXPA16..RZ202404

main89340-52170iGXPA16,MXPA12..(CVT,MTM)..(RS,RZ)202008

89341KSENSOR, ULTRASONIC, FRONT CORNER

main89341-K0060-12×2iGXPA16..6F..RZ202404

main89341-K0060-A0×2iGXPA16; GXPA16..6F..RZ202404

main89341-K0060-A4×2iGXPA16..RZ202008-202404

main89341-K0060-C6×2iGXPA16; GXPA16..6F..RZ202404

main89341-K0060-D4×2iGXPA16..6F..RZ202404-202505

main89341-K0060-P8×2iGXPA16; GXPA16..6F..RZ202404

main89341-K0060-S6×2iGXPA16..6F..RZ202404-202505

89341LSENSOR, ULTRASONIC, FRONT CENTER

main89341-50080-C0×2iGXPA16; GXPA16..6F..RZ202404

main89341-K0060-C0×2iGXPA16..RZ202008-202103

main89341-K0060-C1×2iGXPA16..RZ202008-202404

89342SENSOR, ULTRASONIC, REAR CORNER

main89341-K0060-12×2iGXPA16..6F..RZ202404

main89341-K0060-A0×2iGXPA16..RZ202008-202404

main89341-K0060-A4×2iGXPA16..RZ202008-202404

main89341-K0060-C6×2iGXPA16; GXPA16..6F..RZ202404

main89341-K0060-D4×2iGXPA16; GXPA16..6F..RZ202404

main89341-K0060-P8×2iGXPA16; GXPA16..6F..RZ202404

main89341-K0060-S6×2iGXPA16..6F..RZ202404-202505

89342ASENSOR, ULTRASONIC, REAR CENTER

main89341-K0060-12×2iGXPA16..6F..RZ202404

main89341-K0060-A0×2iGXPA16; GXPA16..6F..RZ202404

main89341-K0060-A4×2iGXPA16..RZ202008-202103

main89341-K0060-C6×2iGXPA16; GXPA16..6F..RZ202404

main89341-K0060-D4×2iGXPA16; GXPA16..6F..RZ202404

main89341-K0060-P8×2iGXPA16; GXPA16..6F..RZ202404

main89341-K0060-S6×2iGXPA16..6F..RZ202404-202505

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-48010iGXPA16..RZ202008-202404

89348DCLIP, ULTRASONIC SENSOR

main89348-58130×2iGXPA16202404

9167380616

main91673-80616

11 parts on this diagram · 1 diagram in section
