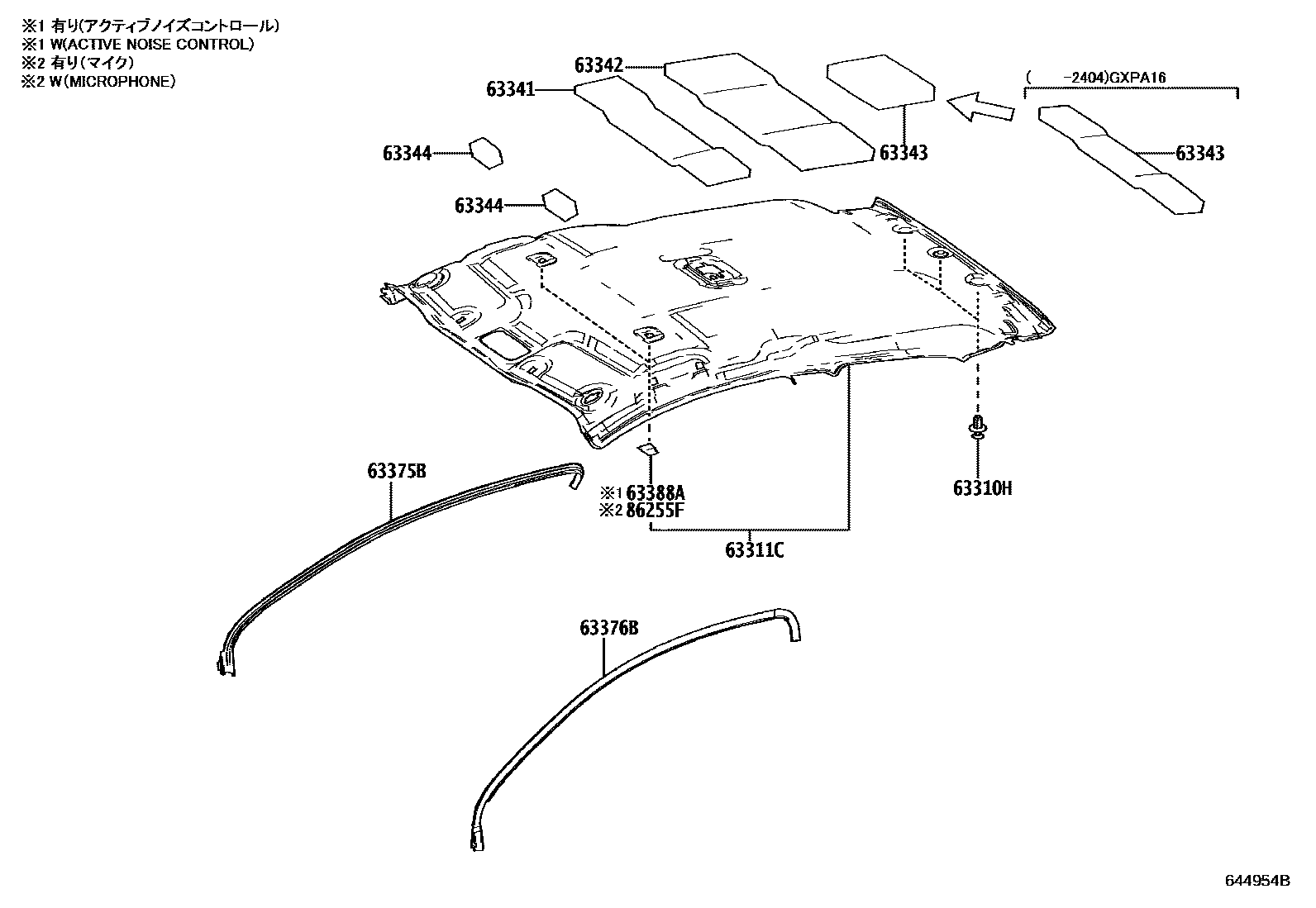

ROOF HEADLINING & SILENCER PAD

63310HCLIP(FOR ROOF HEADLINING)

main90467-07215×3iGXPA16202404

63311CHEADLINING, ROOF

main63311-52280-C0iGXPA16202008-202404

BLACK,TRIM2#

main63311-52460-C0iMXPA12202009-202207

BLACK,TRIM2#

main63311-52461-C0iMXPA12202208

BLACK,TRIM2#

main63311-52660-C0iGXPA16..RC; GXPA16..RZ202404

BLACK,TRIM2#; BLACK,TRIM2#,3#

main63311-52400-C1iGXPA16..RZ202008-202404

main63311-52640-C0supersedes 63311-52660-C0iGXPA16..RC202404-202505

63341PAD, ROOF SILENCER, NO.1

main63341-52250iGXPA16202008-202404

63342PAD, ROOF SILENCER, NO.2

main63341-52540iGXPA16202404

63343PAD, ROOF SILENCER, NO.3

main63342-52280iGXPA16202008-202404

main63342-52350iMXPA12202009

63344PAD, ROOF SILENCER, NO.4

main63343-52160×2iGXPA16202008-202404

63375BMOULDING, ROOF HEADLING, NO.1 RH

main63375-52010iGXPA16202008-202404

63376BMOULDING, ROOF HEADLINIG, NO.1 LH

main63376-52020iGXPA16202008-202404

63388ACOVER, ROOF HEADLINING HOLDER

main63388-30050-C0×2iGXPA16..RZ202008-202404

86255FCASE, MICROPHONE

main86255-78020-C0×2iGXPA16..RC; GXPA16..RZ202404

BLACK,TRIM2#; BLACK,TRIM2#,3#

10 parts on this diagram · 1 diagram in section
