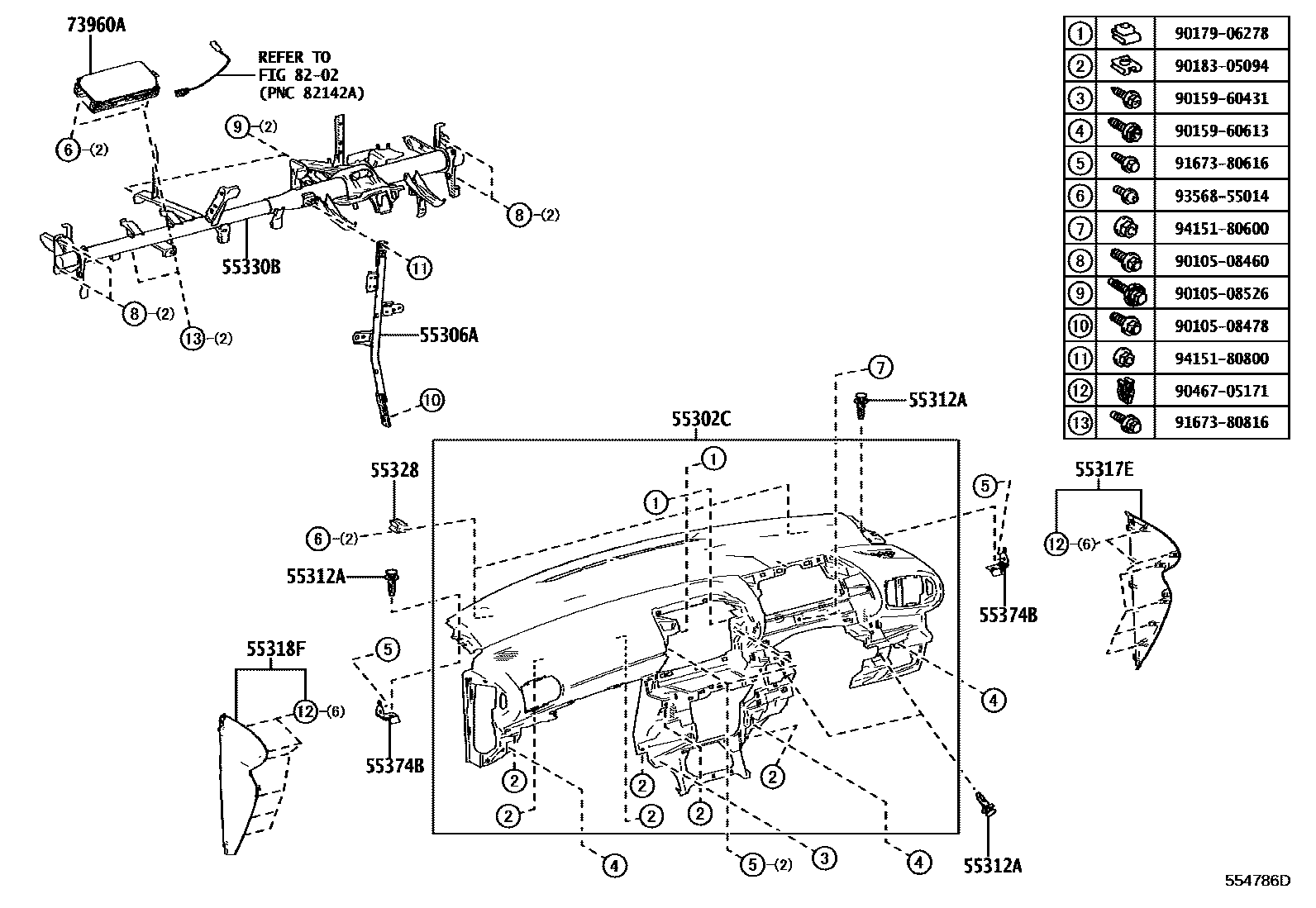

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1��(��������) 0003 1 0004 1 0005 1��������� 0006 1��������� 0007 1����� 0008 1����� 0009 1���������� 0010 1����������

55302CPANEL SUB-ASSY, INSTRUMENT

main55302-52290-C1iGXPA16..RC; GXPA16..RZ202404

BLACK,TRIM2#; BLACK,TRIM2#,3#

main55302-K0020-C0iGXPA16..RZ202008-202404

SOFT BLACK,TRIM2#

main55302-52300-C0supersedes 55302-K0010-C0iGXPA16..RC202212-202404

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-52490iGXPA16202404

main55306-K0010iGXPA16202008-202404

55312ACLIP, INSTRUMENT PANEL

main52161-16010×4iGXPA16202008-202404

55317EPANEL, INSTRUMENT SIDE, NO.1

main55317-K0010-C0iGXPA16..RC; GXPA16..RZ202404

BLACK,TRIM2#; BLACK,TRIM2#,3#

55318FPANEL, INSTRUMENT SIDE, NO.2

main55318-K0010-C0iGXPA16202008-202404

BLACK,TRIM2#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-12430×2iGXPA16202404

main55328-60090×2iGXPA16202008-202404

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-52A80iGXPA16202404

main55330-K0010iGXPA16,MXPA12..CVT,MTM202008

main55330-52A70iGXPA16..RC202212-202404

55374BBRACKET, INSTRUMENT PANEL

main55363-52010iGXPA16202008-202404

main55363-52020iMXPA12202008

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-K0010iGXPA16202404

8202WIRING & CLAMP

→ Go to FIG 82-02

9010508460

main90105-08460

9010508478

main90105-08478

9010508526

main90105-08526

9015960431

main90159-60431

9015960613

main90159-60613

9017906278

main90179-06278

9018305094

main90183-05094

9046705171

main90467-05171

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180600

main94151-80600

9415180800

main94151-80800

23 parts on this diagram · 10 diagrams in section
