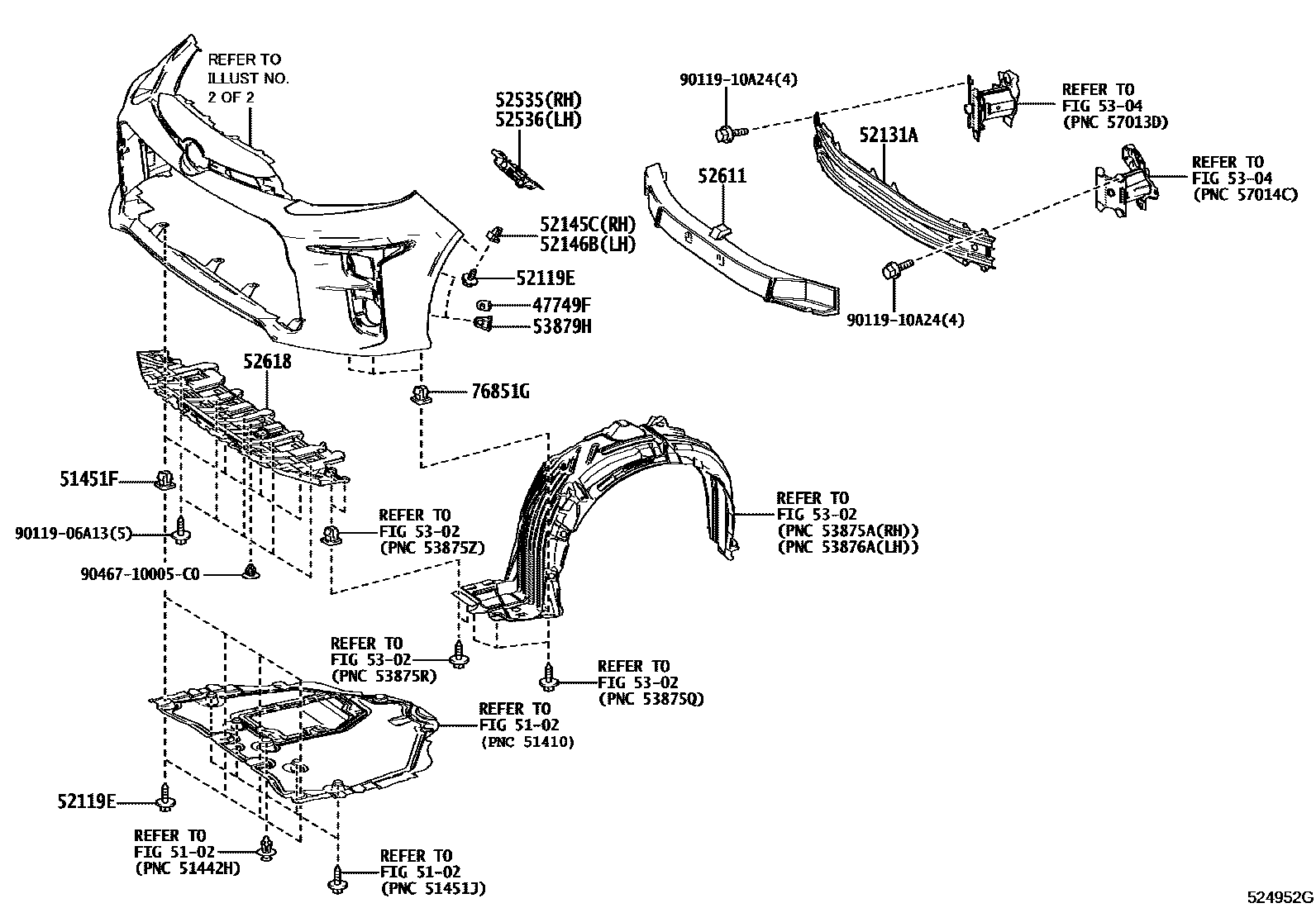

FRONT BUMPER & BUMPER STAY
47749FCLIP, PIN HOLD
5102
51451FGROMMET, NO.1
52119ESCREW, NO.2
52145CBRACKET, FRONT BUMPER SIDE MOUNTING, RH
52146BBRACKET, FRONT BUMPER SIDE MOUNTING, LH
52535RETAINER, FRONT BUMPER SIDE, RH
52536RETAINER, FRONT BUMPER SIDE, LH
52611ABSORBER, FRONT BUMPER ENERGY
5302
5304
53879HRETAINER, FRONT FENDER LINER
76851GGROMMET, SCREW, NO.1
9011906A13
main90119-06A13
9011910A24
main90119-10A24
9046710005C0
main90467-10005C0
18 parts on this diagram · 4 diagrams in section
