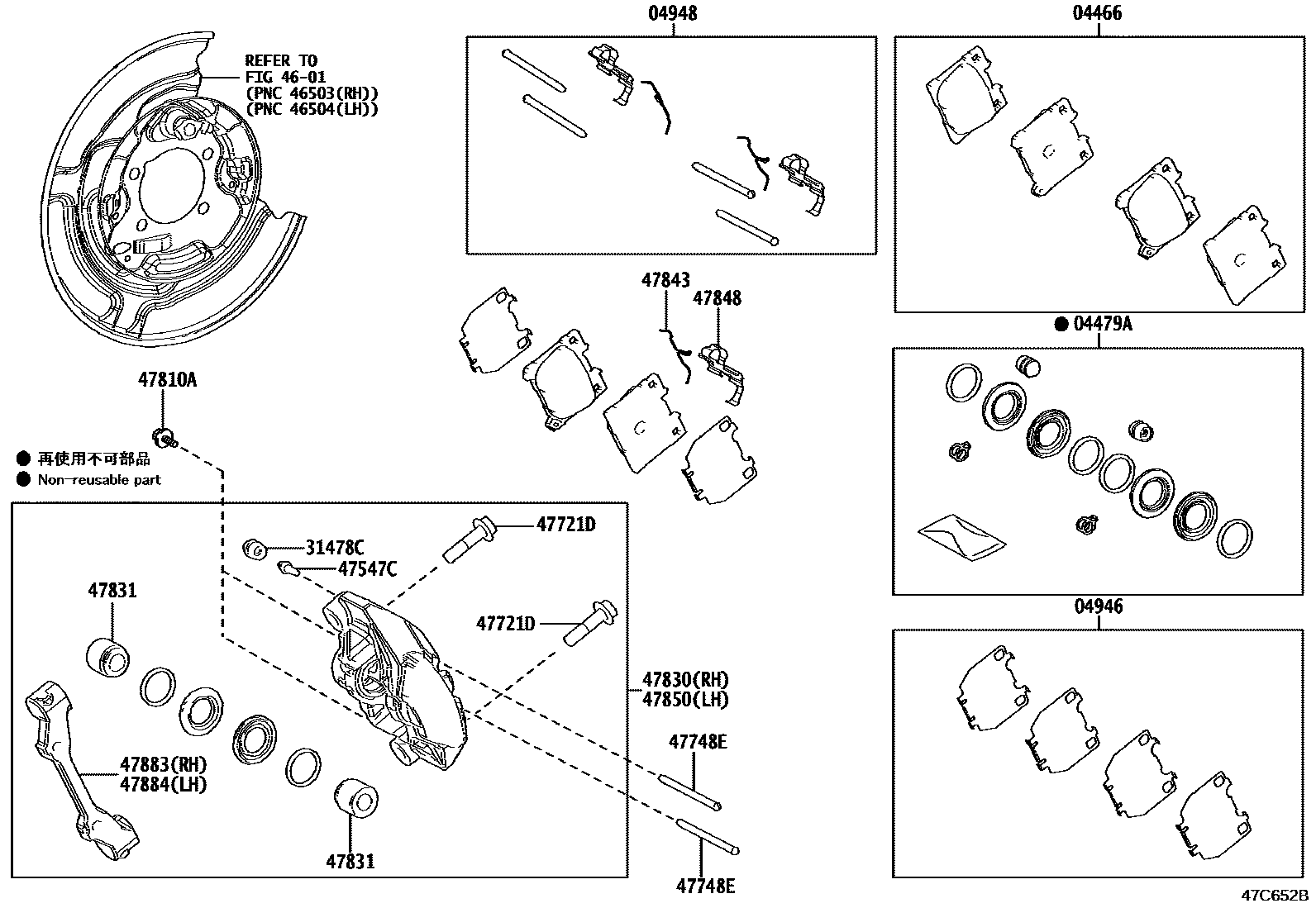

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04466PAD KIT, DISC BRAKE, REAR

main04466-10011iMXPA12202009

main04466-52200iGXPA16202008-202404

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-10091iMXPA12202009-202211

main04479-52280iGXPA16202008-202404

main04479-52290iMXPA12202211-202308

sub04479-10091

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-48130iMXPA12202009

main04946-52120iGXPA16202008-202404

04948FITTING KIT, DISC BRAKE, REAR

main04948-52050iGXPA16202008-202404

main04948-58010iMXPA12202009

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iMXPA12202009

main31478-50020iGXPA16202008-202404

main31478-50020iGXPA16202404

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iMXPA12202009

main47547-35020iGXPA16202008-202404

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA603iMXPA12202009

main90015-AA604iGXPA16202008-202404

47748EPIN, W/HOLE(FOR REAR DISC BRAKE)

main47735-52310iGXPA16202008-202404

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12174iGXPA16202008-202404

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-52260iMXPA12202009

main47830-52270iGXPA16202008-202404

47831PISTON, REAR DISC BRAKE

main47731-18030iGXPA16202008-202404

main47831-10030iMXPA12202009

47843CLIP, REAR DISC BRAKE PIN HOLD

main47843-52250iGXPA16202008-202404

47848SPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)

main47848-52250iGXPA16202008-202404

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-52260iMXPA12202009

main47850-52270iGXPA16202008-202404

47883BRACKET, CALIPER SUPPORT, REAR RH

main47883-52040iGXPA16202008-202404

47884BRACKET, CALIPER SUPPORT, REAR LH

main47883-52040iGXPA16202008-202404

17 parts on this diagram · 2 diagrams in section
