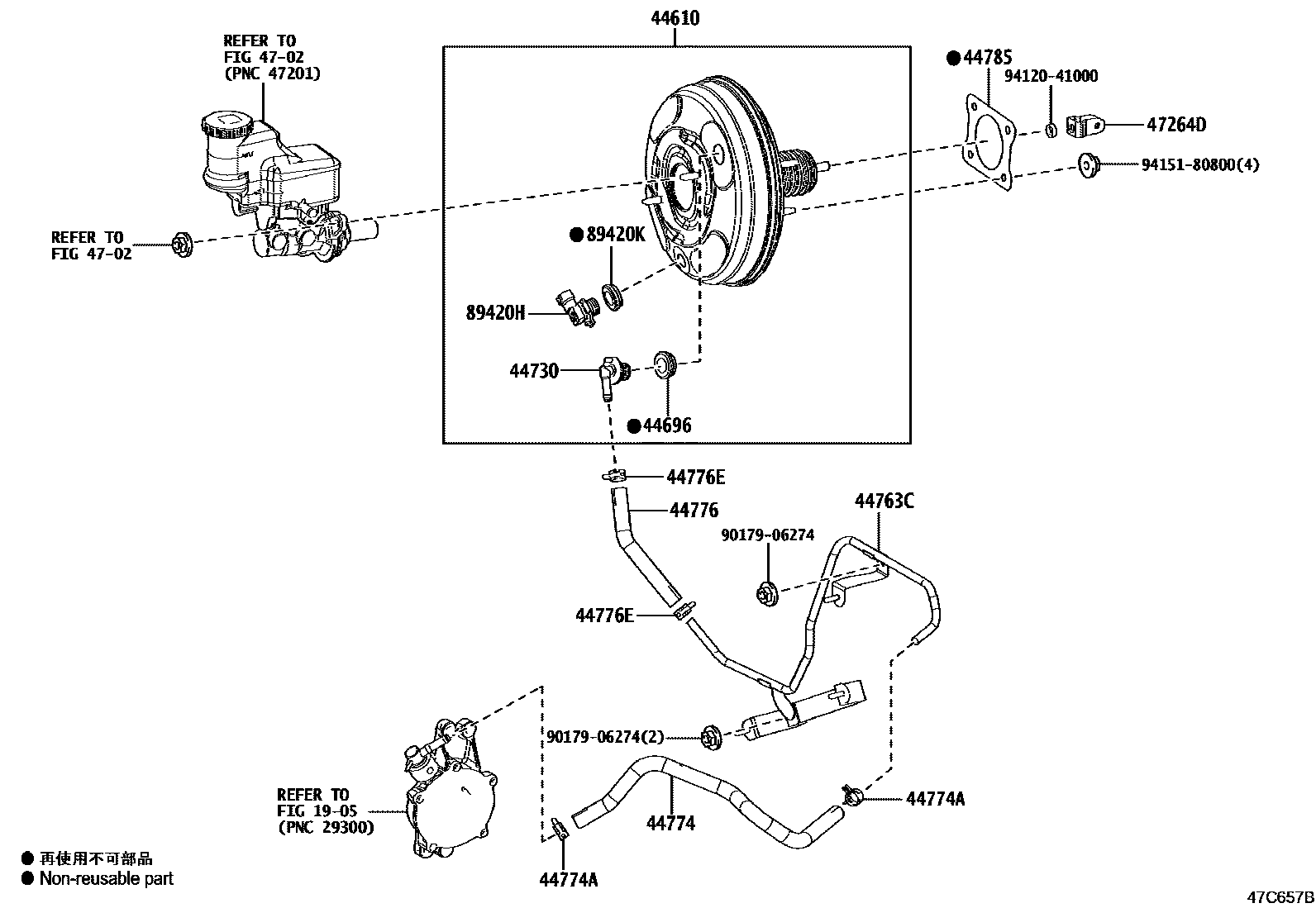

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

1905VACUUM PUMP

→ Go to FIG 19-05

44610BOOSTER ASSY, BRAKE

main44610-52J60iGXPA16202404

main44610-52J70iGXPA16202008-202404

main44610-52K00iMXPA12202009

44696GROMMET, CHECK VALVE

main90480-24439iMXPA12202008

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-52010iGXPA16202008-202404

44763CTUBE, HOSE TO HOSE, NO.2

main44763-52220iGXPA16202008-202404

main44763-K0060iMXPA12202009

44774HOSE, UNION TO CONNECTOR TUBE

main44774-52230iGXPA16202008-202404

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90467-16014×2iGXPA16202008-202404

44776HOSE, BRAKE BOOSTER

main44776-52100iGXPA16202008-202404

44776ECLIP(FOR BRAKE BOOSTER HOSE)

main90467-16014×2iGXPA16202008-202404

44785GASKET, BRAKE BOOSTER

main44785-12040iGXPA16202008-202404

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-12060iGXPA16202008-202404

89420HSENSOR ASSY, VACUUM

main89421-52020iGXPA16202008-202404

89420KGROMMET, VACUUM SENSOR

main90480-24439iGXPA16202008-202404

9017906274

main90179-06274

9412041000

main94120-41000

9415180800

main94151-80800

17 parts on this diagram · 3 diagrams in section
