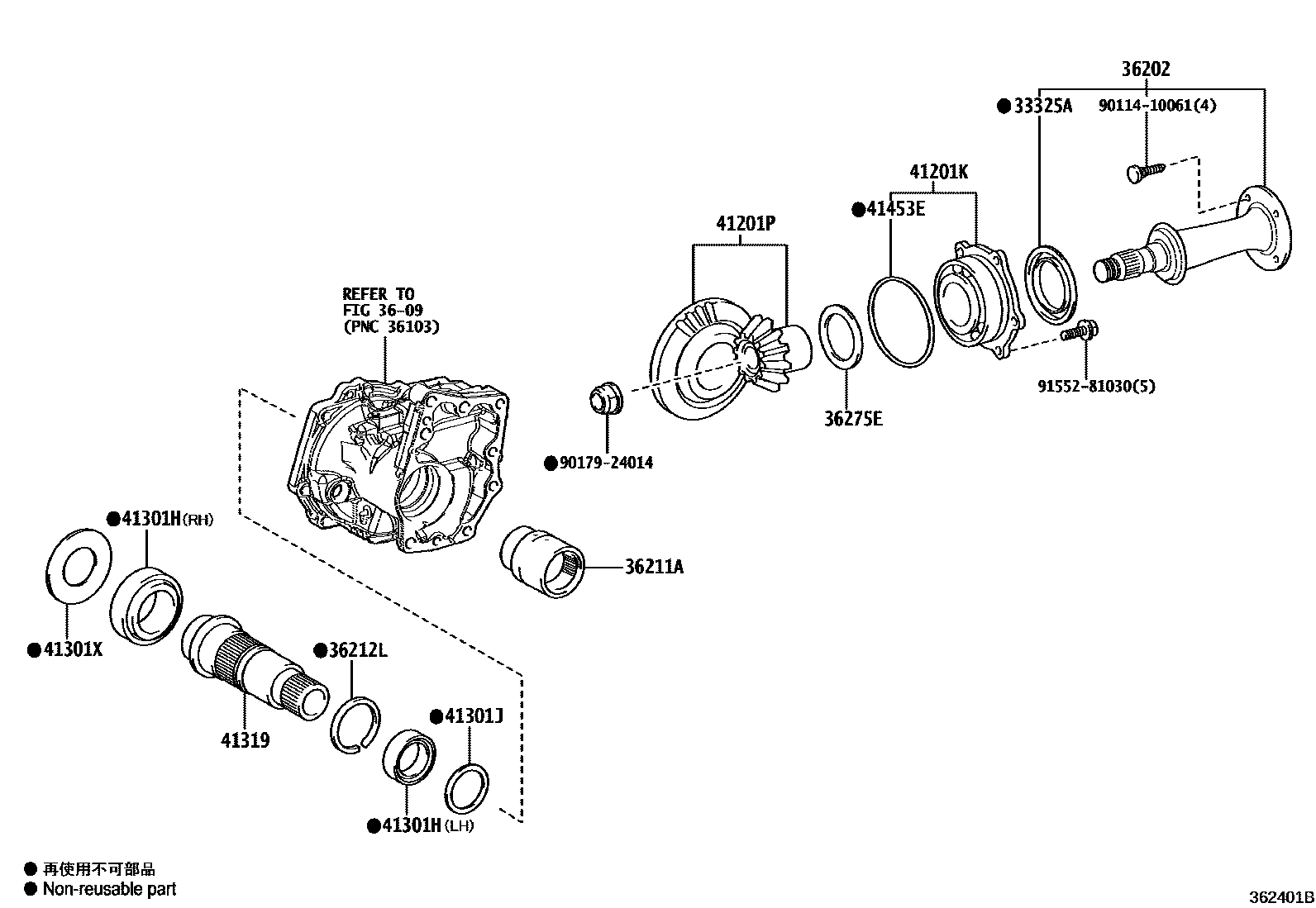

TRANSFER GEAR
33325ADEFLECTOR, DUST (FOR TRANSFER OUTPUT REAR SHAFT)
3609TRANSFER CASE & EXTENSION HOUSING
36202SHAFT SUB-ASSY, TRANSFER OUTPUT, REAR
36211AYOKE, TRANSMISSION SLEEVE
36212LRING, SHAFT SNAP
36275EWASHER, TRANSFER OUTPUT SHAFT
41201KBEARING (FOR TRANSFER DRIVEN PINION FRONT)
41301HBEARING(FOR RING GEAR MOUNTING CASE)
41301JWASHER, PLATE(FOR RING GEAR MOUNTING CASE)
41301XWASHER, TRANSFER RING GEAR MOUNTING CASE, NO.2
41319CASE, TRANSFER RING GEAR MOUNTING
41453ERING, O
9011410061
main90114-10061
9017924014
main90179-24014
9155281030
main91552-81030
16 parts on this diagram · 1 diagram in section
