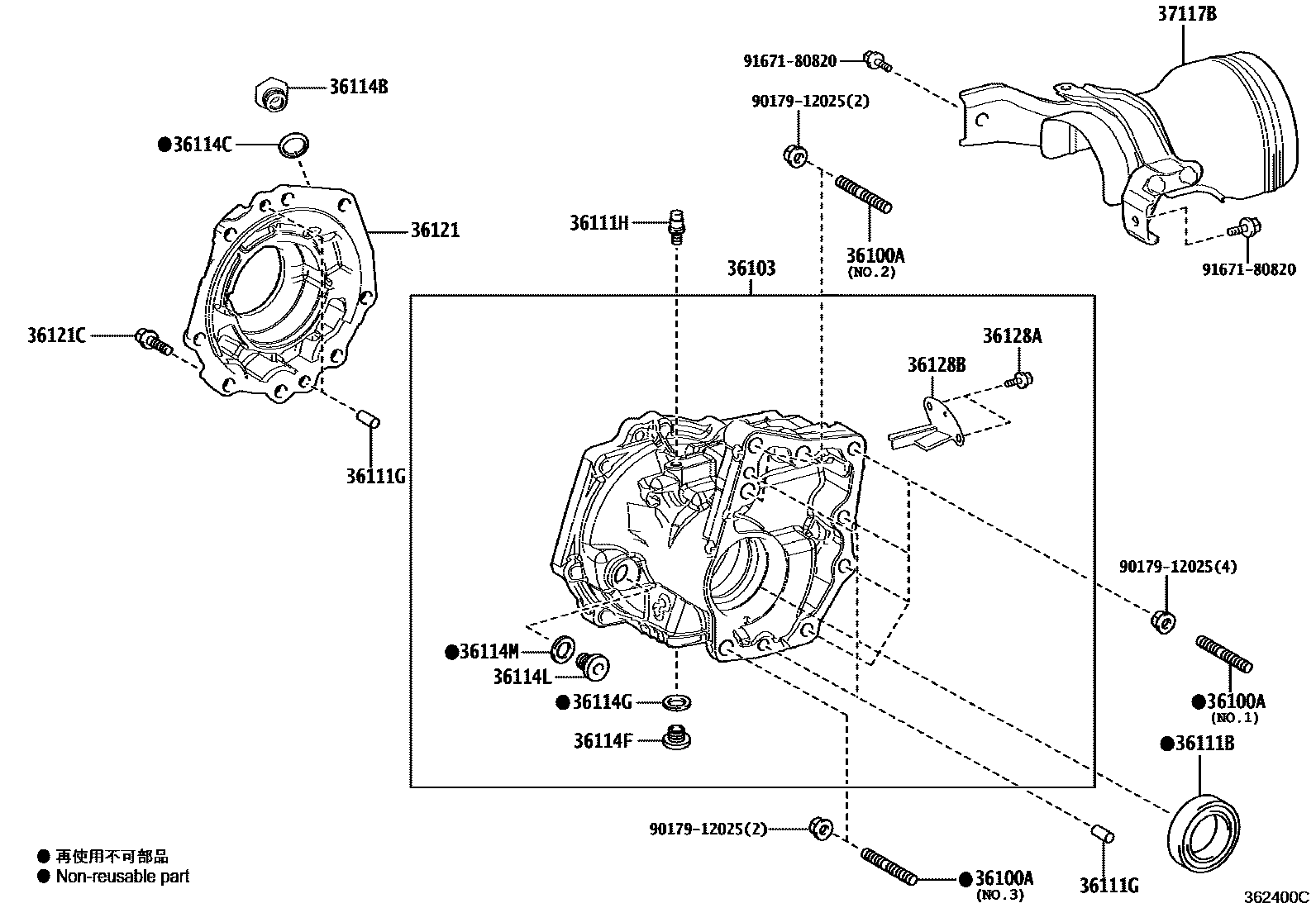

TRANSFER CASE & EXTENSION HOUSING

36100ABOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)

main90116-12041×4iGXPA16202404

main90116-12051×3iGXPA16202008-202404

main90116-12052iGXPA16202404

36103CASE SUB-ASSY, TRANSFER

main36103-52030iGXPA16202404

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-55002iGXPA16202404

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10017×4iGXPA16202008-202404

36111HPLUG, BREATHER (FOR TRANSFER CASE)

main90930-03133iGXPA16202008-202404

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90341-18006iGXPA16202008-202404

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main12157-10010iGXPA16202008-202404

36114FPLUG (FOR TRANSFER DRAIN)

main90341-18051iGXPA16202008-202404

36114GGASKET (FOR TRANSFER DRAIN PLUG)

main12157-10010iGXPA16202008-202404

36114LPLUG, FILLER(FOR TRANSFER)

main90341-18023iGXPA16202008-202404

36114MGASKET (FOR TRANSFER FILLER PLUG)

main12157-10010iGXPA16202008-202404

36121COVER, TRANSFER CASE, NO.1

main36121-52020iGXPA16202008-202404

36121CBOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVER)

main91552-81030×8iGXPA16202008-202404

36128ABOLT (FOR BREATHER OIL DEFLECTOR)

main91621-60614×2iGXPA16202008-202404

36128BDEFLECTOR, BREATHER OIL

main36128-42010iGXPA16202008-202404

37117BINSULATOR, PROPELLER SHAFT HEAT

main37117-52011iGXPA16202008-202404

main37117-52030iGXPA16..8FC202404

9017912025

main90179-12025

9167180820

main91671-80820

18 parts on this diagram · 1 diagram in section
