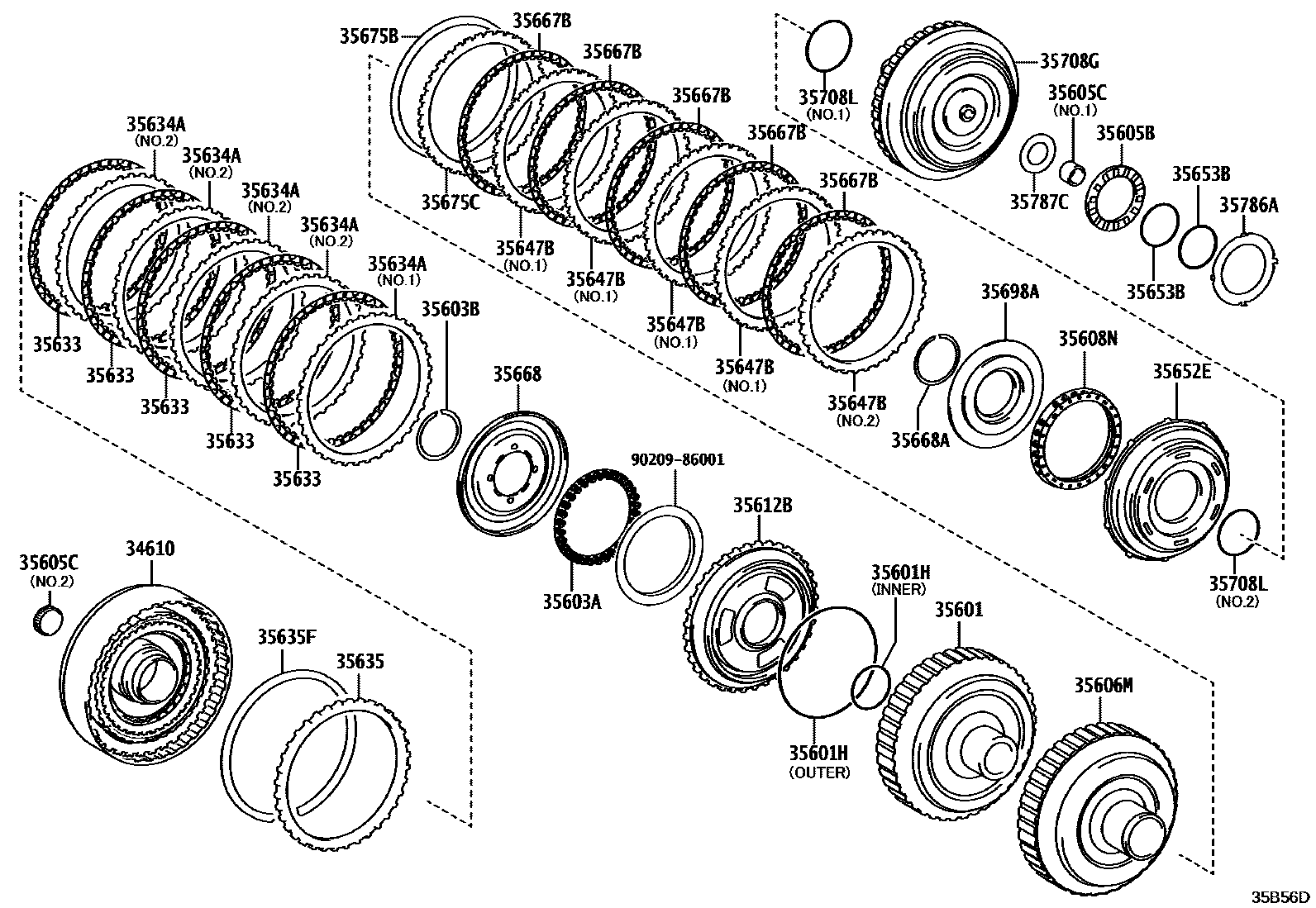

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)

34610CLUTCH ASSY, C-3 & C-4

main34610-52010iGXPA16..8FC; GXPA16..8FC..RZ202404

35601DRUM SUB-ASSY, CLUTCH

main35601-52070iGXPA16..8FC; GXPA16..8FC..RZ202404

35601HRING, O(FOR C-1 DRUM)

main90301-99271iGXPA16..8FC; GXPA16..8FC..RZ202404

35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN

main35603-52060iGXPA16..8FC; GXPA16..8FC..RZ202404

35603BRING, SHAFT SNAP (FOR FORWARD CLUTCH PISTON)

main90520-46015iGXPA16..8FC; GXPA16..8FC..RZ202404

35605BBEARING, THRUST NEEDLE ROLLER

main90374-50002iGXPA16..8FC; GXPA16..8FC..RZ202404

35605CBEARING, NEEDLE ROLLER

main90364-16011iGXPA16..8FC; GXPA16..8FC..RZ202404

35606MHUB SUB-ASSY, SUN GEAR INPUT

main35606-52030iGXPA16..8FC; GXPA16..8FC..RZ202404

35608NSPRING SUB-ASSY, CLUTCH RETURN W/RETAINER

main3560A-48010iGXPA16..8FC; GXPA16..8FC..RZ202404

35612BPISTON, FORWARD CLUTCH

main35612-52090iGXPA16..8FC; GXPA16..8FC..RZ202404

35633DISC, CLUTCH (FOR FRONT CLUTCH)

main35633-78010×5iGXPA16..8FC; GXPA16..8FC..RZ202404

35634APLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)

main35634-48050×4iGXPA16..8FC; GXPA16..8FC..RZ202404

35635FLANGE, FORWARD CLUTCH

main35635-48120iGXPA16..8FC; GXPA16..8FC..RZ202404

35635FRING SNAP (FOR FOWARD CLUTCH FLANGE)

main90520-99188iGXPA16..8FC; GXPA16..8FC..RZ202404

35647BPLATE, CLUTCH, NO.2

main35647-48030×4iGXPA16..8FC; GXPA16..8FC..RZ202404

35652EPISTON, C-2 CLUTCH

main35652-52050iGXPA16..8FC; GXPA16..8FC..RZ202404

35653BRING, DIRECT CLUTCH DRUM OIL SEAL

main35653-48020×2iGXPA16..8FC; GXPA16..8FC..RZ202404

35667BDISK, CLUTCH, NO.2

main35667-52050×5iGXPA16..8FC; GXPA16..8FC..RZ202404

35668BALANCER, CLUTCH, NO.1

main35668-52060iGXPA16..8FC; GXPA16..8FC..RZ202404

35668ARING, SNAP(FOR CLUTCH BALANCER)

main90520-48013iGXPA16..8FC; GXPA16..8FC..RZ202404

35675BRING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)

main90520-99171iGXPA16..8FC; GXPA16..8FC..RZ202404

35675CFLANGE, DIRECT CLUTCH

main35675-48370iGXPA16..8FC; GXPA16..8FC..RZ202404

35698ABALANCER, C-2 CLUTCH

main35698-48020iGXPA16..8FC; GXPA16..8FC..RZ202404

35708GSHAFT SUB-ASSY, INTERMEDIATE

main35708-52070iGXPA16..8FC; GXPA16..8FC..RZ202404

35708LRING, O (FOR INTERMEDIATE SHAFT)

main90301-50004iGXPA16..8FC; GXPA16..8FC..RZ202404

35786ARACE, THRUST BEARING, NO.1

main35786-48020iGXPA16..8FC; GXPA16..8FC..RZ202404

35787CRACE, THRUST BEARING, NO.2

main35787-48030iGXPA16..8FC; GXPA16..8FC..RZ202404

9020986001

main90209-86001

28 parts on this diagram · 1 diagram in section
