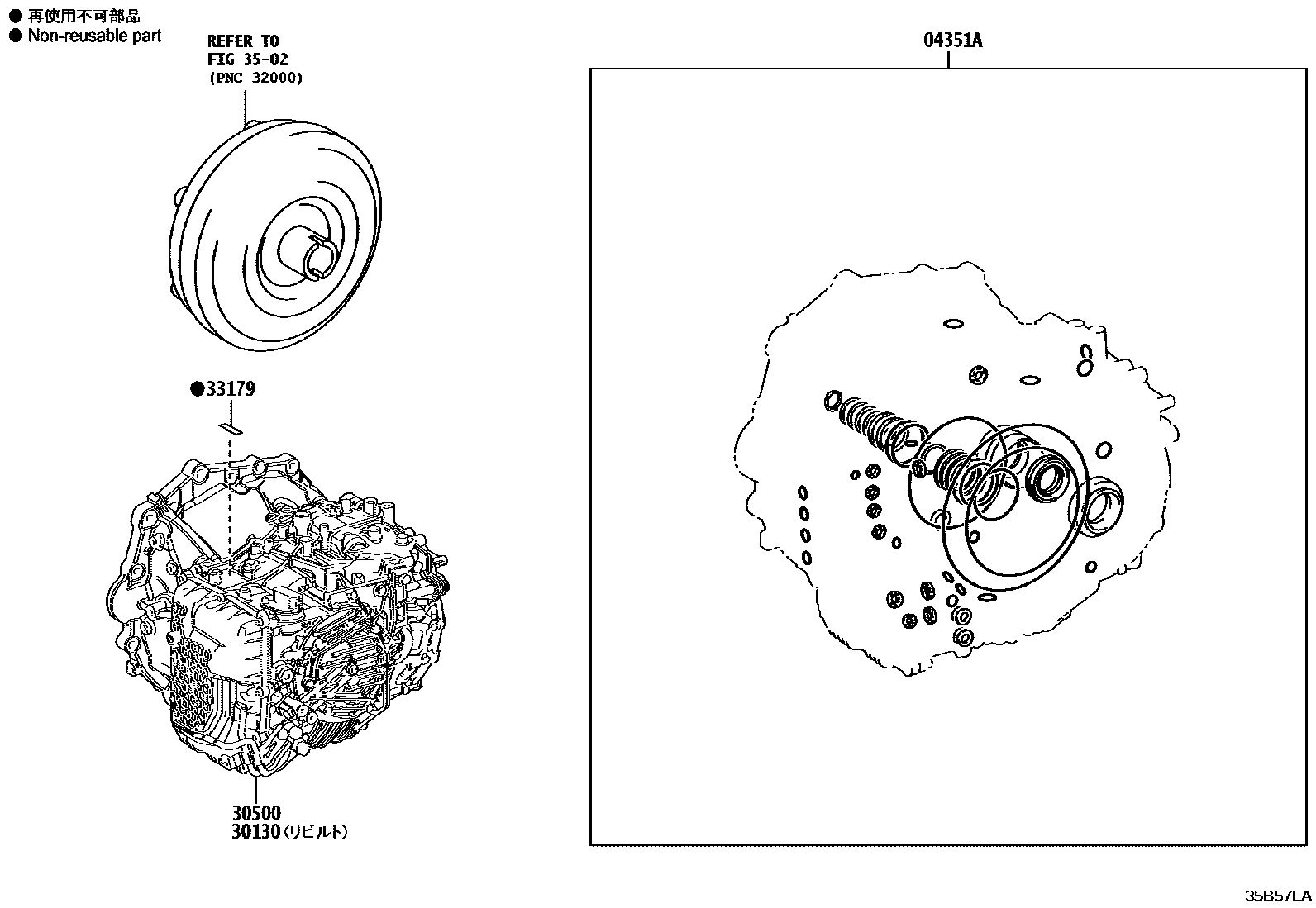

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-48350iGXPA16..8FC; GXPA16..8FC..RZ202404

30130TRANSAXLE ASSY, REBUILT

main30130-52530iGXPA16..8FC; GXPA16..8FC..RZ202404

main30130-52540iGXPA16..8FC..RZ202404

30500TRANSAXLE ASSY, AUTOMATIC

main30500-52530iGXPA16..8FC; GXPA16..8FC..RZ202404

main30500-52540iGXPA16..8FC..RZ202404

33179PLATE, TRANSMISSION NAME

main33179-52010iGXPA16..8FC202404

3502TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

→ Go to FIG 35-02

5 parts on this diagram · 1 diagram in section
