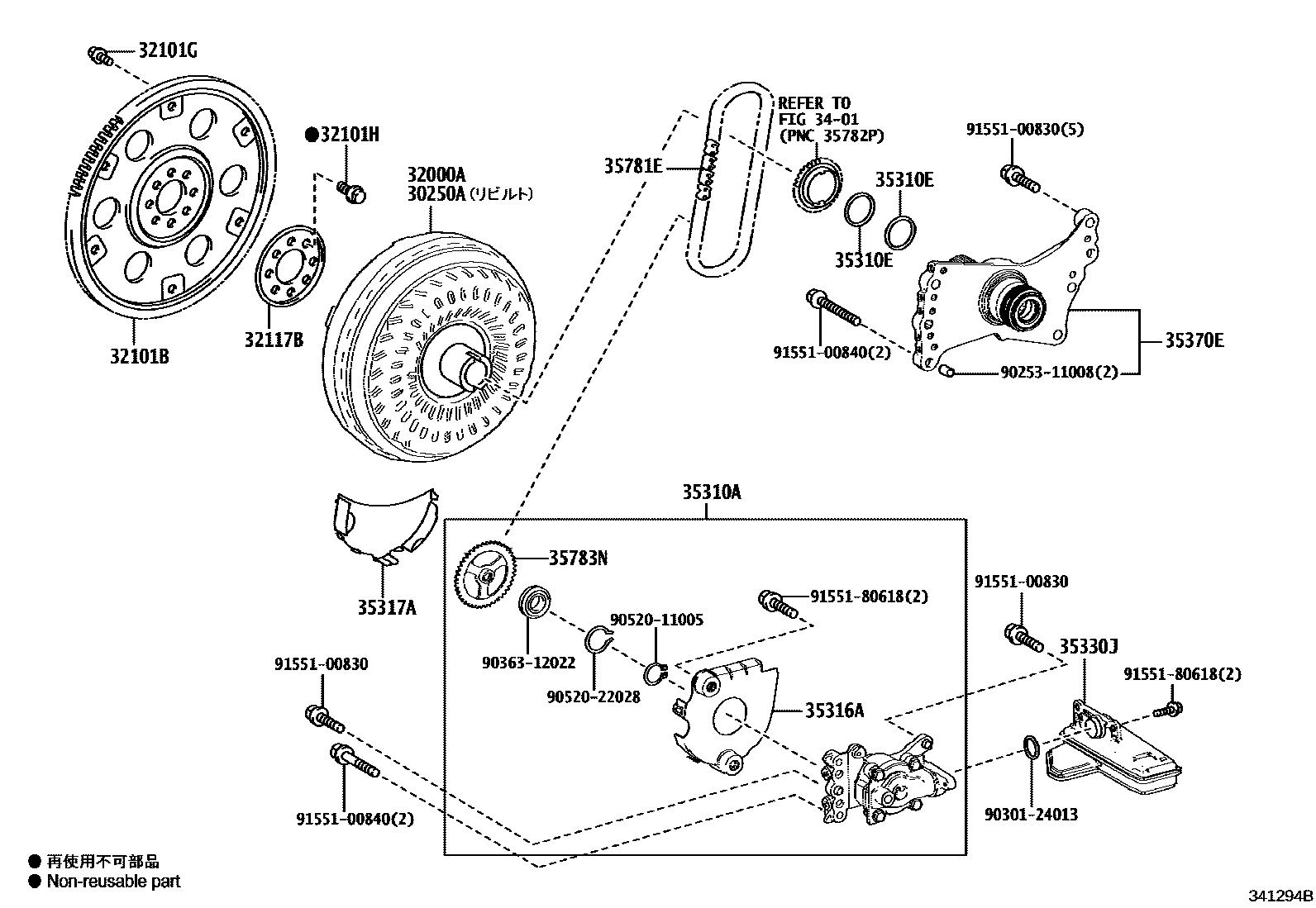

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

30250ACONVERTER ASSY, TORQUE, REBUILT

main30250-52260iMXPA12202009-202112

main30250-K0010iMXPA12202112

32000ACONVERTER ASSY, TORQUE

main32000-52260iMXPA12202009-202112

main32000-K0010iMXPA12202112

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-52100iMXPA12202009

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iMXPA12202009

main90119-08498×5iMXPA12202009

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-12404×8iMXPA12202009

32117BSPACER, DRIVE PLATE, REAR

main32117-33010iMXPA12202009

3401TRANSAXLE ASSY(CVT)

→ Go to FIG 34-01

35310APUMP ASSY, FRONT OIL

main35300-12020iMXPA12202104

main35300-52050iMXPA12202009-202104

35310ESEAL, TYPE T OIL (FOR FRONT OIL PUMP)

main35617-12080×2iMXPA12202104

main35617-K0010×2iMXPA12202009-202104

35316APLATE, TRANSMISSION OIL PUMP SEPARATOR, NO.1

main35316-12020iMXPA12202009

35317APLATE, TRANSMISSION OIL PUMP SEPARATOR, NO.2

main35317-12020iMXPA12202009

35330JSTRAINER ASSY, OIL

main35330-12070iMXPA12202104

main35330-K0020iMXPA12202009-202104

35370ESHAFT ASSY, STATOR (CVT)

main35370-K0010iMXPA12202009-202109

main35370-K0011iMXPA12202110

35781ECHAIN, TRANSMISSION DRIVE

main35781-12010iMXPA12202009

35783NSPROCKET, DRIVEN

main35783-12060iMXPA12202009

9025311008

main90253-11008

9030124013

main90301-24013

9036312022

main90363-12022

9052011005

main90520-11005

9052022028

main90520-22028

9155100830

main91551-00830

9155100840

main91551-00840

9155180618

main91551-80618

23 parts on this diagram · 1 diagram in section
