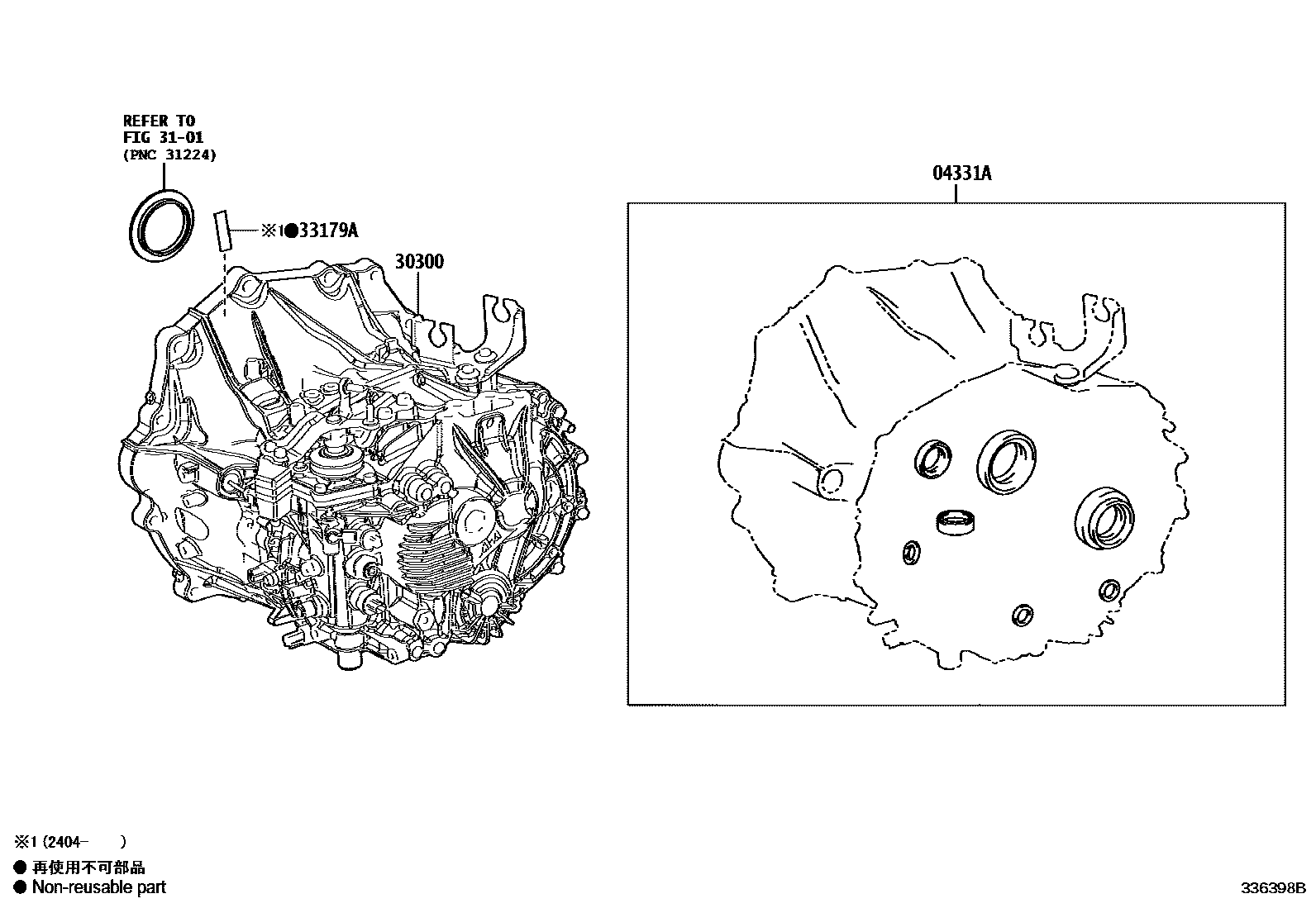

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-52690iGXPA16; GXPA16..RZ202008-202404

30300TRANSAXLE ASSY, MANUAL

main30300-52B60supersedes 30300-52C50iGXPA16; GXPA16..RZ202008-202212

main30300-52B61supersedes 30300-52C50iGXPA16; GXPA16..RZ202212-202404

main30300-52B80iGXPA16..RZ202008-202212

main30300-52B81iGXPA16..RZ202212-202404

main30300-52B90iGXPA16..RC202212-202404

main30300-52C00iGXPA16..RC202212-202404

main30300-52C30supersedes 30300-52C50iGXPA16202304-202404

main30300-52C50iGXPA16..6F; GXPA16..6F..RZ202404

main30300-52C60iGXPA16..6F..RZ202404

3101CLUTCH & RELEASE FORK

→ Go to FIG 31-01

33179APLATE, TRANSMISSION NAME

main33179-52010iGXPA16..6F202404

4 parts on this diagram · 1 diagram in section
