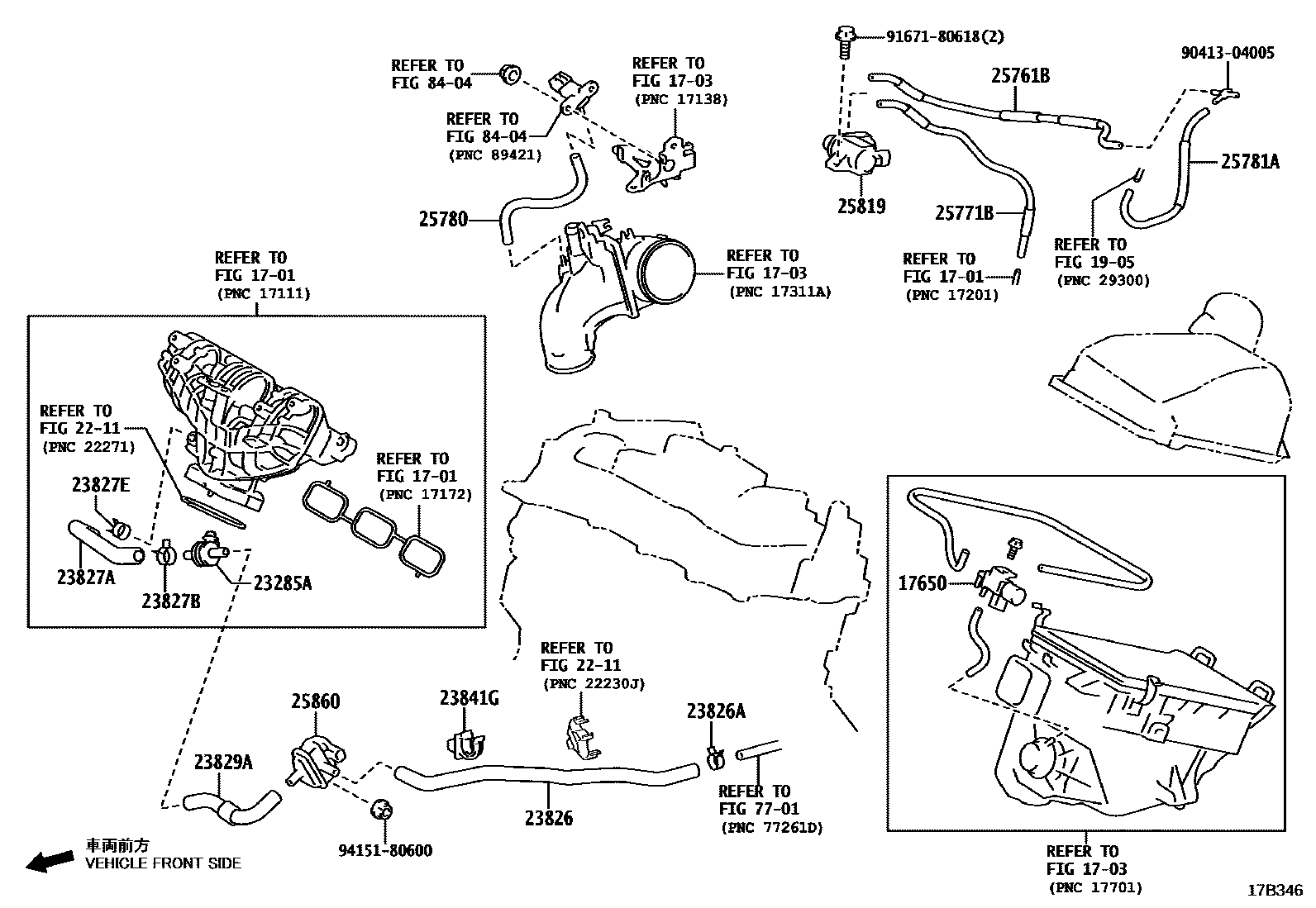

VACUUM PIPING
1701MANIFOLD
1703AIR CLEANER
17650VALVE ASSY, VACUUM SWITCHING
1905VACUUM PUMP
2211FUEL INJECTION SYSTEM
23285AVALVE, CHECK, NO.1
23826HOSE, FUEL VAPOR FEED, NO.1
23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
23827AHOSE, FUEL VAPOR FEED, NO.2
23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
23827ECLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
23829AHOSE, FUEL VAPOR FEED
23841GCLAMP, FUEL HOSE
25761BHOSE, VACCUM TRANSMITTING, NO.1
25771BHOSE, VACCUM TRANSMITTING, NO.2
25780HOSE ASSY, VACUUM TRANSMITTING, NO.3
25781AHOSE, VACUUM TRANSMITTING, NO.3
25819VALVE ASSY, VACUUM REGULATING
25860VALVE ASSY, VACUUM SWITCHING, NO.1
7701FUEL TANK & TUBE
8404ELECTRONIC FUEL INJECTION SYSTEM
9041304005
main90413-04005
9167180618
main91671-80618
9415180600
main94151-80600
24 parts on this diagram · 2 diagrams in section
