ENGINE OVERHAUL GASKET KIT

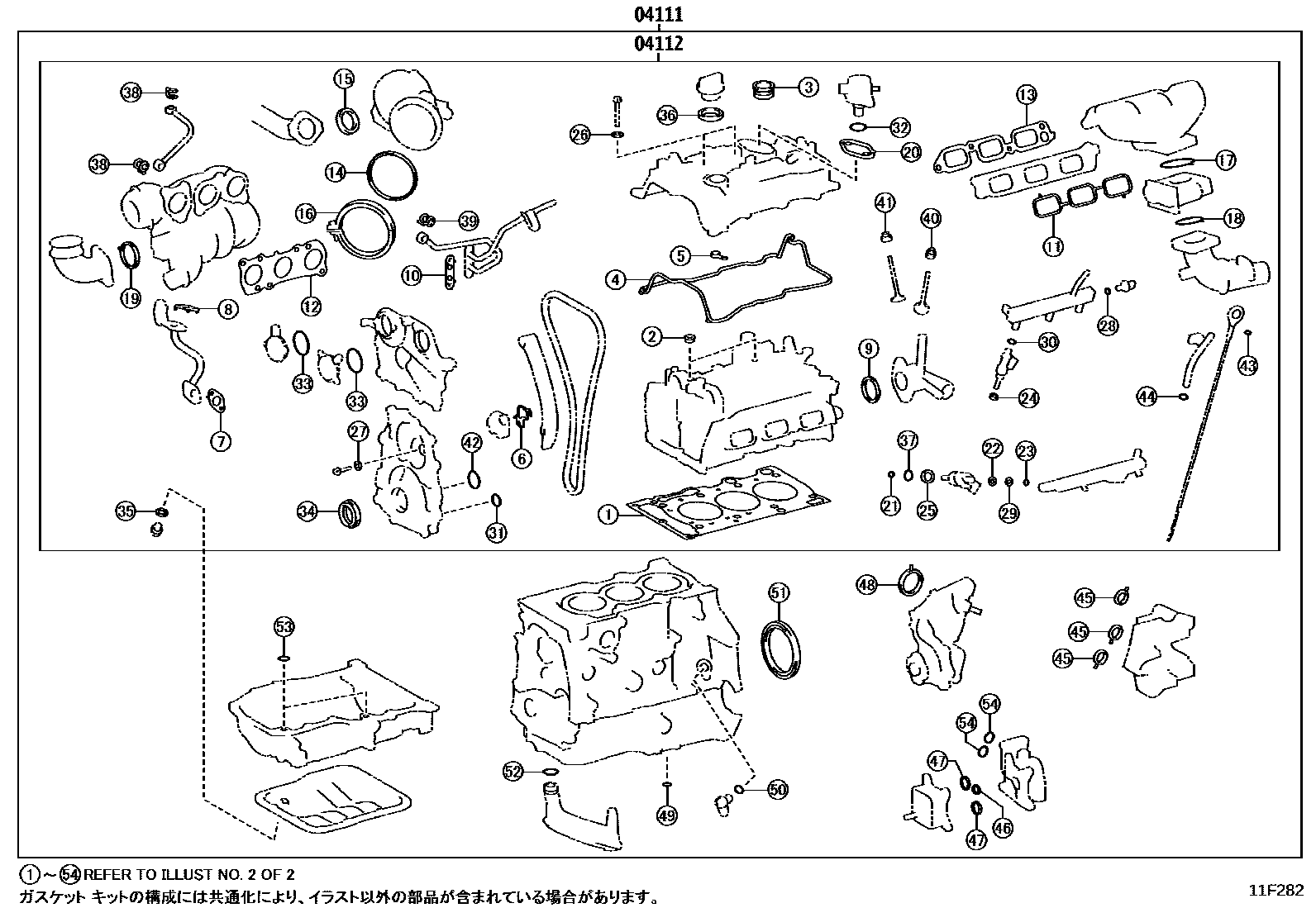

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-15110i202009-202107
sub04111-15111
main04111-15111i202107
main04111-18010i202008-202012
sub04111-18011
main04111-18011i202012-202108
sub04111-18012
main04111-18012i202108-202404
main04111-18013i202404-202505
04112GASKET KIT, ENGINE VALVE GRIND
main04112-15120i202009-202107
sub04112-15121
main04112-15121i202107
main04112-18010i202008-202012
sub04112-18011
main04112-18011i202012-202108
sub04112-18012
main04112-18012i202108-202404
main04112-18013i202404-202505

2 parts on this diagram · 4 diagrams in section
