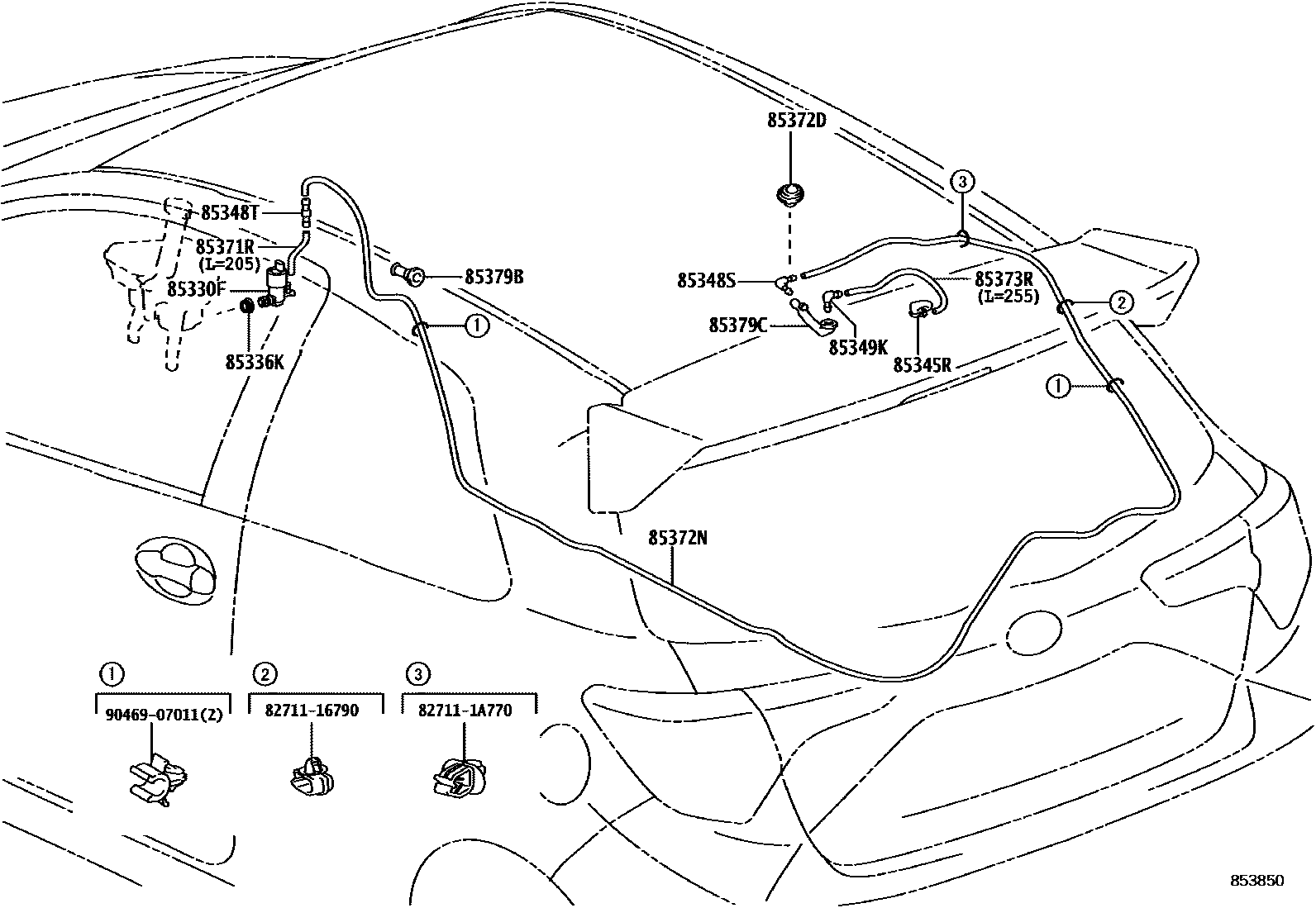

REAR WASHER

85330FMOTOR & PUMP ASSY, RR WASHER

main85330-0F021iNSP131201711

85336KPROTECTOR, WASHER JAR

main85336-0D170iNSP131201711

85345RNOZZLE, REAR WASHER

main85391-0D050iNSP131201711

85348SJOINT, REAR WASHER ELBOW, NO.1

main85376-0D260iNSP131201711

85348TJOINT, REAR WASHER HOSE, NO.2

main85375-0D260iNSP131201711

85349KJOINT, REAR WASHER ELBOW, NO.2

main85376-0D260iNSP131201711

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90069-46058iNSP131201711

85372DGROMMET, REAR WASHER HOSE

main85373-0D060iNSP131201711

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90069-46059iNSP131201711

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90069-46058iNSP131201711

85379BGROMMET, WASHER, A

main85379-0D260iNSP131201711

85379CGROMMET, REAR WASHER HOSE NO.1

main85373-0D050iNSP131201711

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A770

9046907011

main90469-07011

15 parts on this diagram · 1 diagram in section
