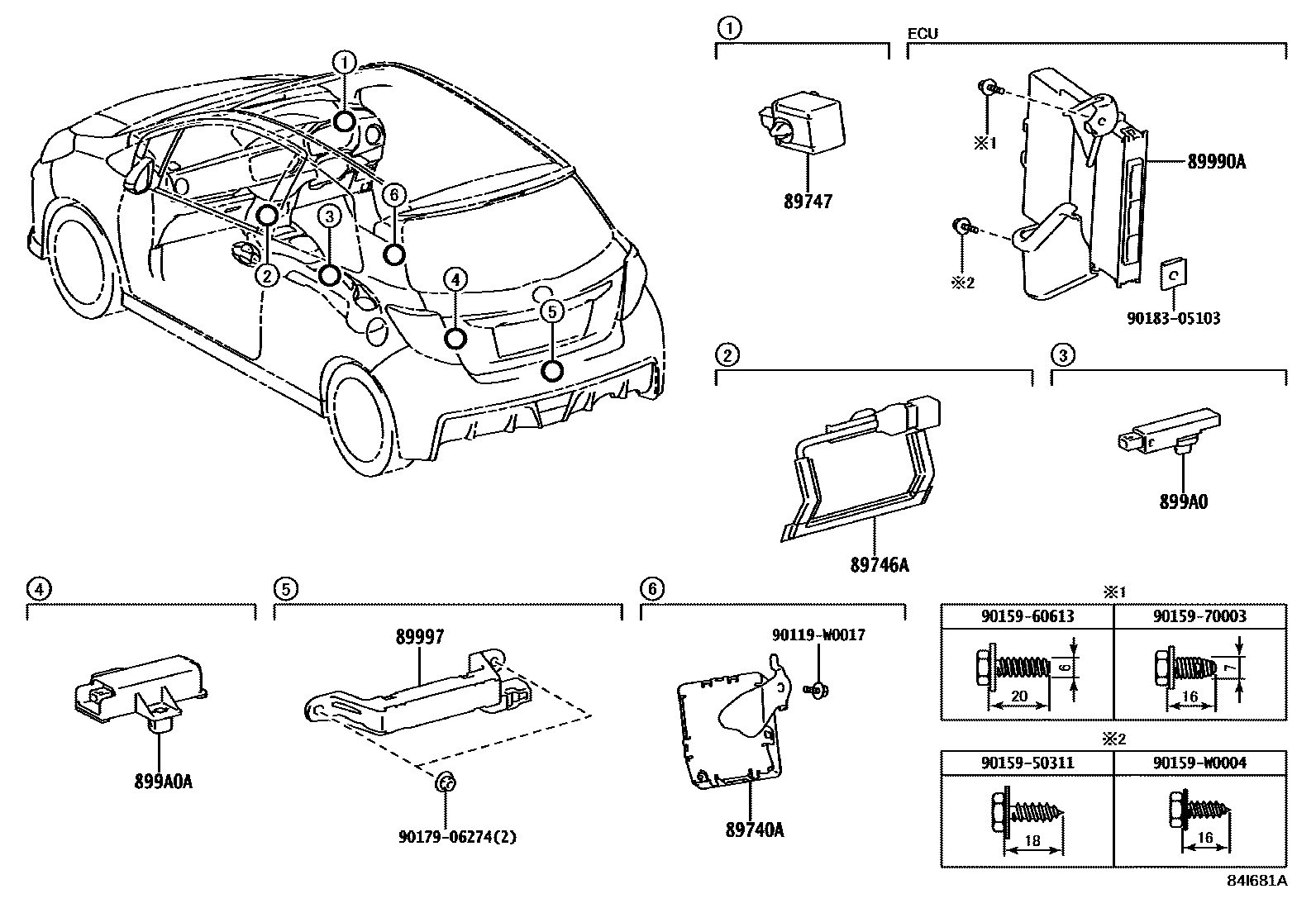

WIRELESS DOOR LOCK

89740ARECEIVER ASSY, SMART DOOR CONTROL

main89740-52500iNSP131201711

89746AHARNESS, ELECTRICAL KEY WIRE

main89746-52100iNSP131201711

89747BUZZER, WIRELESS DOOR LOCK

main89747-05010iNSP131201711

89990ACOMPUTER ASSY, SMART KEY

main89990-0D280iNSP131201711

89997ANTENNA, ELECTRICAL KEY

main89997-30070iNSP131201711

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-0F040iNSP131201711

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-0D140iNSP131201711

90119W0017

main90119-W0017

9015950311

main90159-50311

9015960613

main90159-60613

9015970003

main90159-70003

90159W0004

main90159-W0004

9017906274

main90179-06274

9018305103

main90183-05103

14 parts on this diagram · 1 diagram in section
